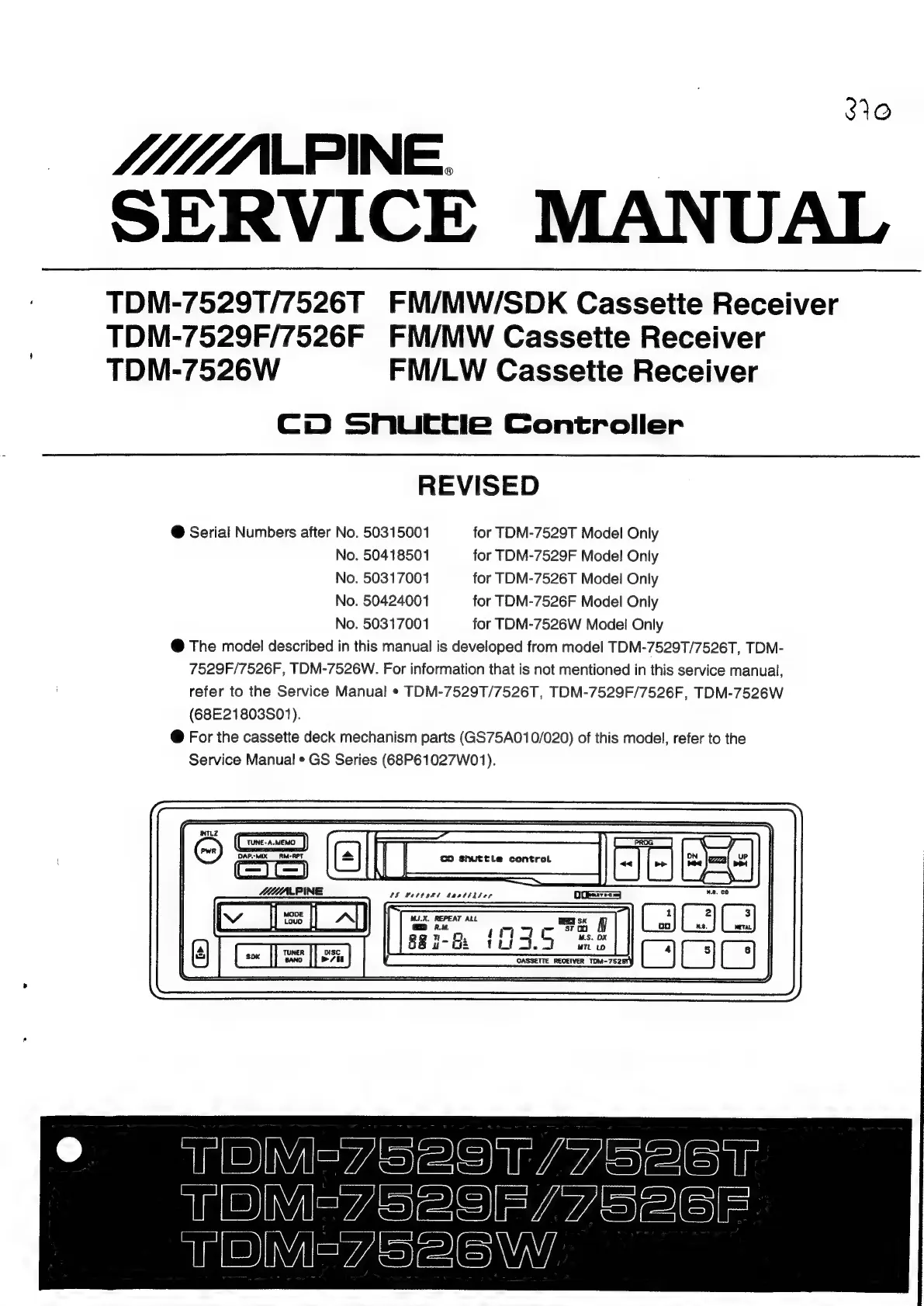

SERVICE
MANUAL
TDM-7529T/7526T FM/MW/SDK Cassette Receiver
TDM-7529F/7526F FM/MW Cassette Receiver
TDM-7526W FM/LW Cassette Receiver
Cod SnNnwuttie Controller
@ Serial Numbers after No. 50315001 for TDM-7529T Model Only
No. 50418501 for TDM-7529F Model Only
No. 50317001 for TDM-7526T Model Only
No. 50424001 for TDM-7526F Model Only
No. 50317001 for TDM-7526W Model Only
@ The model described in this manual is developed from model TDM-7529T/7526T, TDM-
7529F/7526F, TDM-7526W. For information that is not mentioned in this service manual,
refer to the Service Manual « TDM-7529T/7526T, TDM-7529F/7526F, TDM-7526W
(68E21803S01).
@ For the cassette deck mechanism parts (GS75A010/020) of this model, refer to the
Service Manual ¢ GS Series (68P61027W01).
TOMS 7/7829 17752861
TIOIMs7/ S29 F777 5265/7
TOMS 7/7 Ses WwW
