Jeep Wrangler
WRANGLER 11/13
Installation Instructions
5 Run the key harness through the top-left side of
X009 headunit. Mount the X009 headunit using 4 x
7mm factory screws.
6 Connect the radio bezel and snap it into place.
A/C
A/C

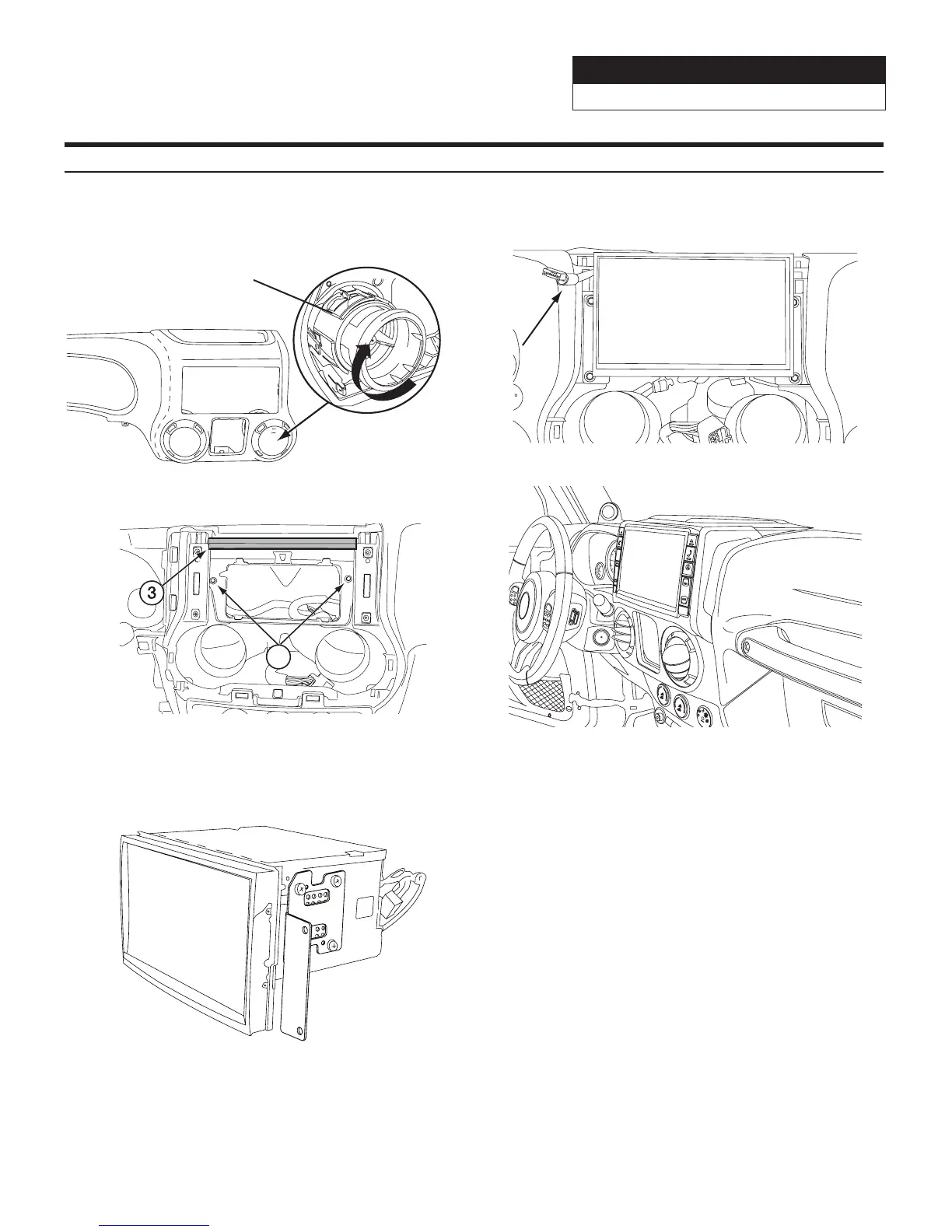

1 Remove the vents from the radio section on the
OEM dash panel by pressing down on the lock tab
and turning right. Mount vents on to the X009-WRA
bezel.
2 Extract 2 x 7mm screws from the OEM radio
bracket and remove it.
2
3 Use a cutting tool to trim the highlighted area
shown above.
4 Attach the brackets using the provided screws.
Lock tab
Rear view
