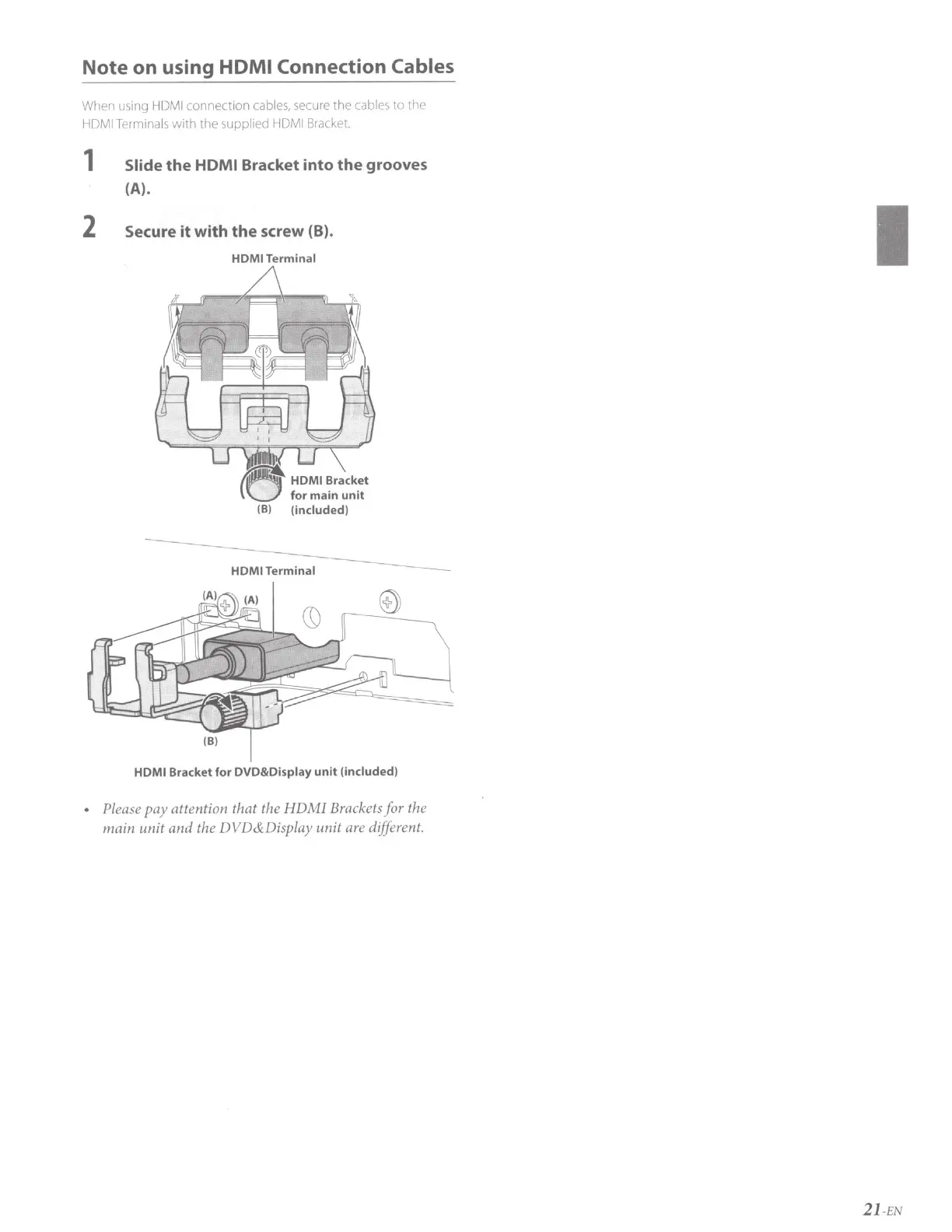

Note on using HOM I Connection Cables
When using HDMI connection cables, secure the cables to the
HDMI Term1nals with the supplied HDMI Bracket.
1 Slide the HDMI Bracket into the grooves
(A).
2 Secure it with the screw (B).
HOM I Terminal
for main
unit
( B) (included)
HOM I Terminal
(B )
HOM I Bracket for DVD&Display unit (included)
• Please pay attent ion that the HDMI Brackets for the
main unit and the DVD&Display unit
are different.
