Jeep Wrangler
X409-WRA-JL 20200825v1
14/29
Installation Instructions (Continued)

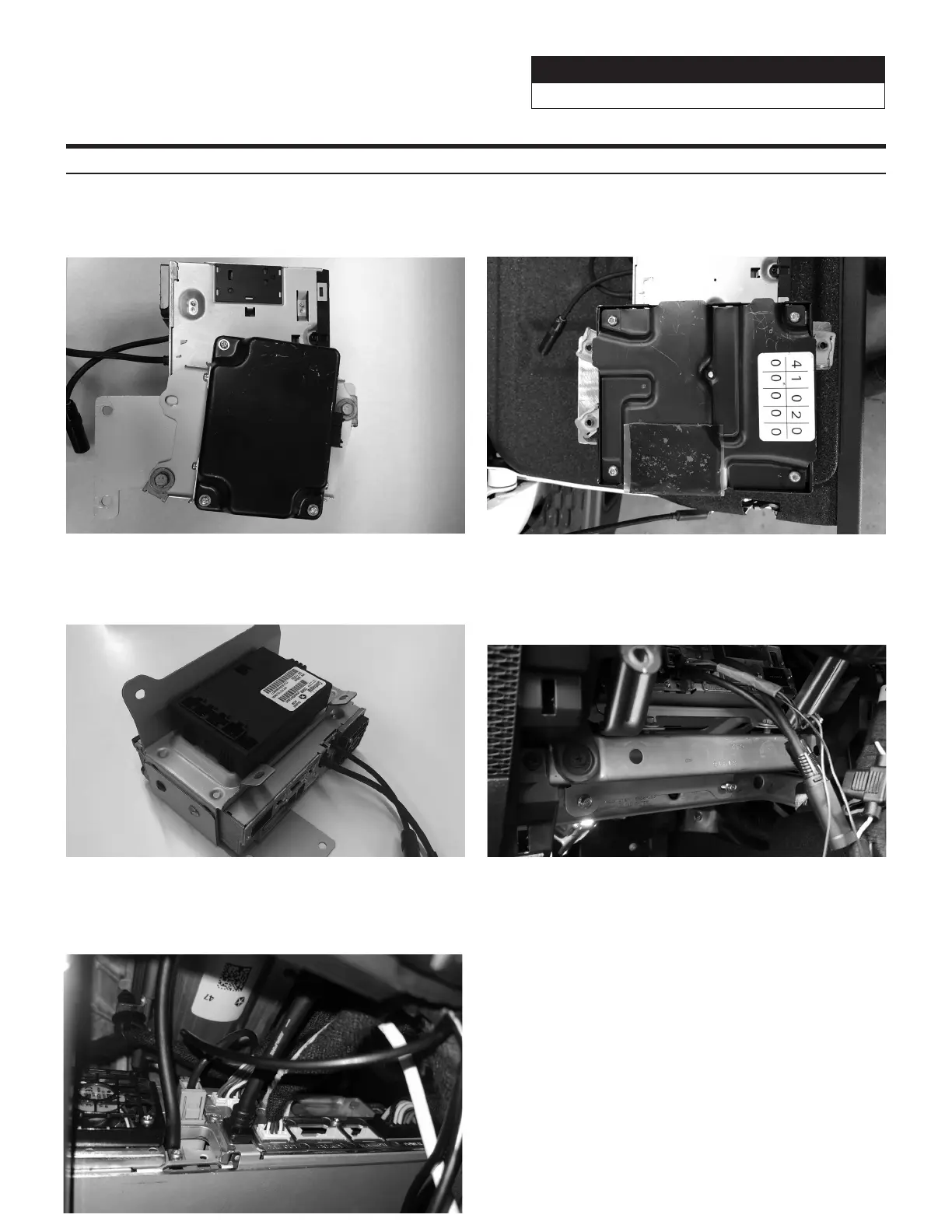

11 Attach the factory Power module to the bracket
using the OEM screws. This is what the power
module will look like for the Wrangler JL.
12 Attach the factory Power module to the bracket
using the OEM screws. This is what the power
module will look like for the Gladiator JT.
14 Use (4) OEM bolts to secure the X409 source
unit tuner bracket to the vehicle. If the vehicle is
equipped with the power inverter it will mount
behind the 2nd cross bar.
15 At the knee panel, connect the main harness,
display harness, GPS antenna, microphone, USB
cable, HDMI, FM adapter, and other adapters to
X409 source unit and secure them.
13 If the vehicle has the heated seat module clip that
into the bottom bracket. The OEM clips on the
module will snap into the bracket.
