4 of 6
749-50092
a. If the unit is equipped with a digger, unstow the digger. Make sure the booms are
fully retracted. With the engine at full RPM, operate Digger Dig at full speed while
holding the intermediate boom control fully shifted in the Retract position or holding
the pole guide open/close switch in the Close position. When the oil has reached
120 to 130 degrees Fahrenheit, stow the digger and proceed to Step 2.
b. If the unit is not equipped with a digger, make sure the booms are fully retracted.
With the engine at full RPM, operate Winch Raise/Winch Lower repeatedly at full
speed while holding the intermediate boom control fully shifted in the Retract
position or holding the pole guide open/close switch in the Close position. Do not
allow the load hook to contact the boom tip when operating Winch Raise. When
the oil has reached 120 to 130 degrees Fahrenheit, proceed to Step 2.

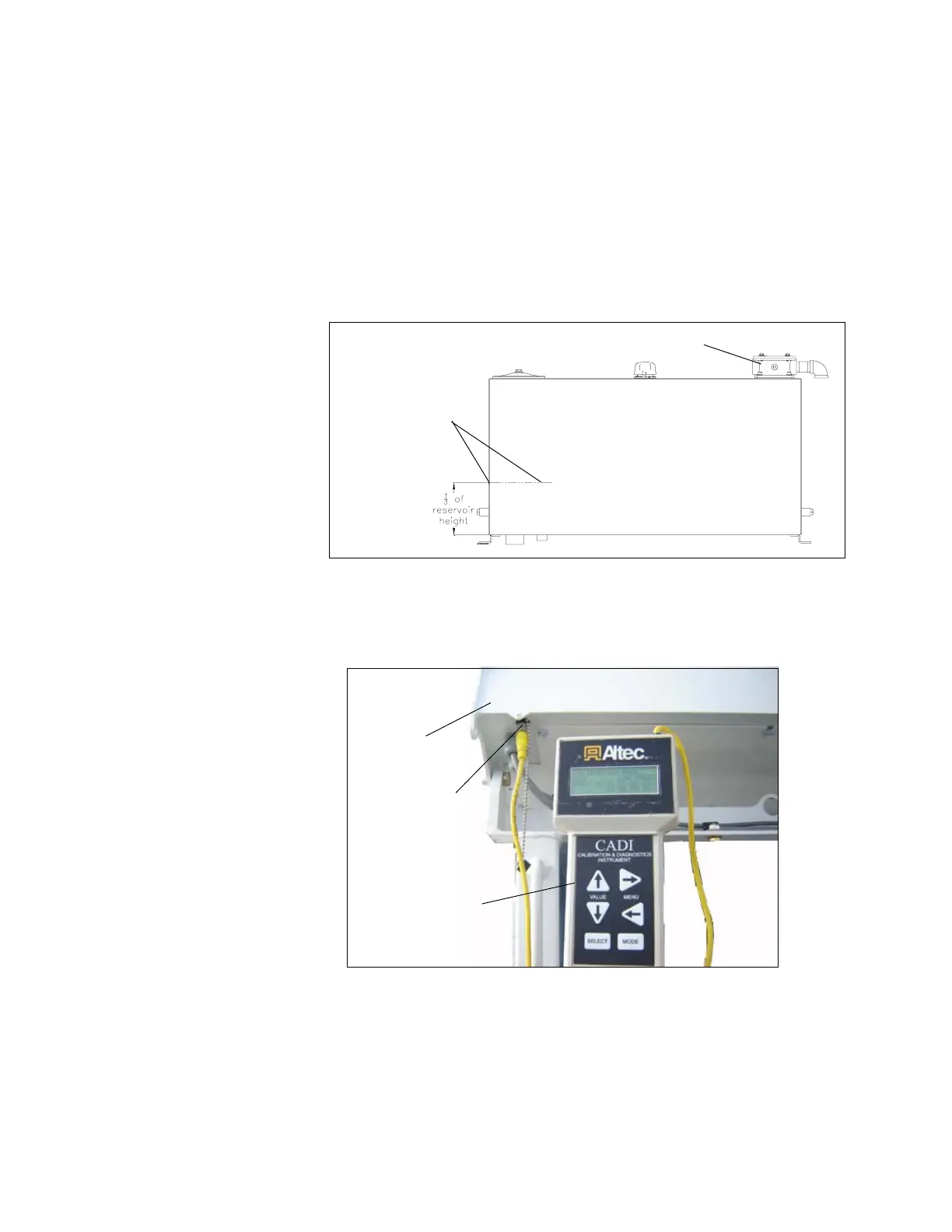

Figure 5 - Reservoir Temperature Measurement
Location Using IR Thermometer
2. Connect the cable from the CADI to the CADI connection socket (refer to Figure 6).
Figure 6 - CADI Attached to Connection Socket
3. Position the boom at an angle from 10 to 30 degrees above horizontal (refer to Figure
7), and rotate it to a position where all the functions can be operated for calibration.
Measure
temperature
here on side or
end
Return Line Filter
Control
Console
Connection
Socket
CADI
Section 2
(Continued)
To Next Page
