2018 FORD F-150 5.0L COMPRESSED NATURAL GAS CONVERSION SYSTEM INSTALLATION INSTRUCTIONS
2018 F-150 5.0L INSTALLATION MANUAL
Page 22
WIRING - PIG TAIL

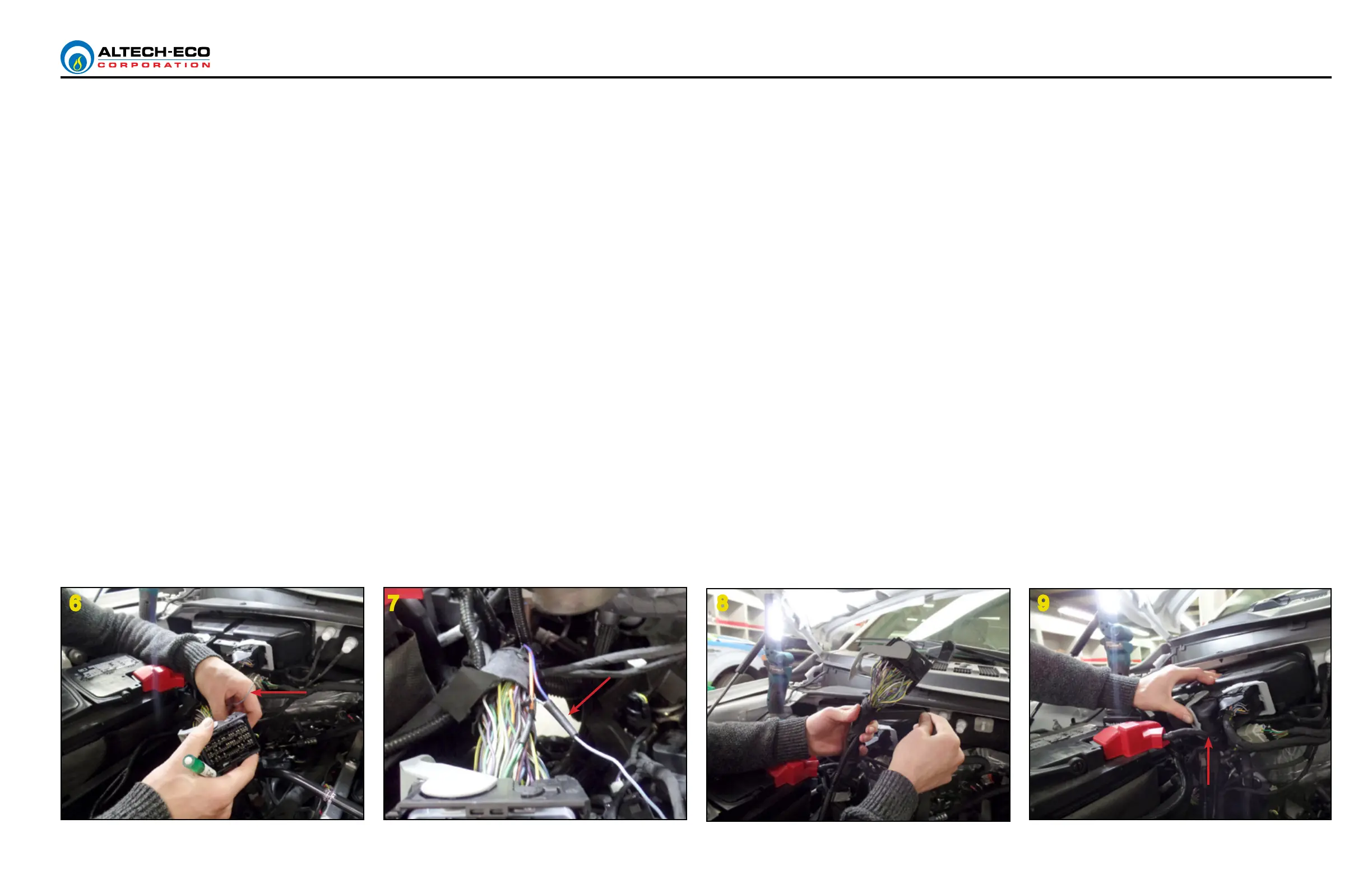

6. Locate OEM pin 48 (BLUE). You may use the connector front plate for help, and or
tug on the wire while observing the terminals in order to nd the correct terminal.
Remove terminal.
7. Strip OEM BLUE wire in order to accommodate pig tail wire.
Splice pig tail BLUE/RED wire into OEM BLUE wire.
Shrink tube the splice and re-install the terminal back into its original location.
8. Re-attach front face plate, rear cap, and re tape to hide any exposed wires.
9. Plug PCM connector back in, and plug pig tail into CNG harness when appropriate.
6 7 8 9
