2018 FORD F-150 5.0L COMPRESSED NATURAL GAS CONVERSION SYSTEM INSTALLATION INSTRUCTIONS
2018 F-150 5.0L INSTALLATION MANUAL
Page 21

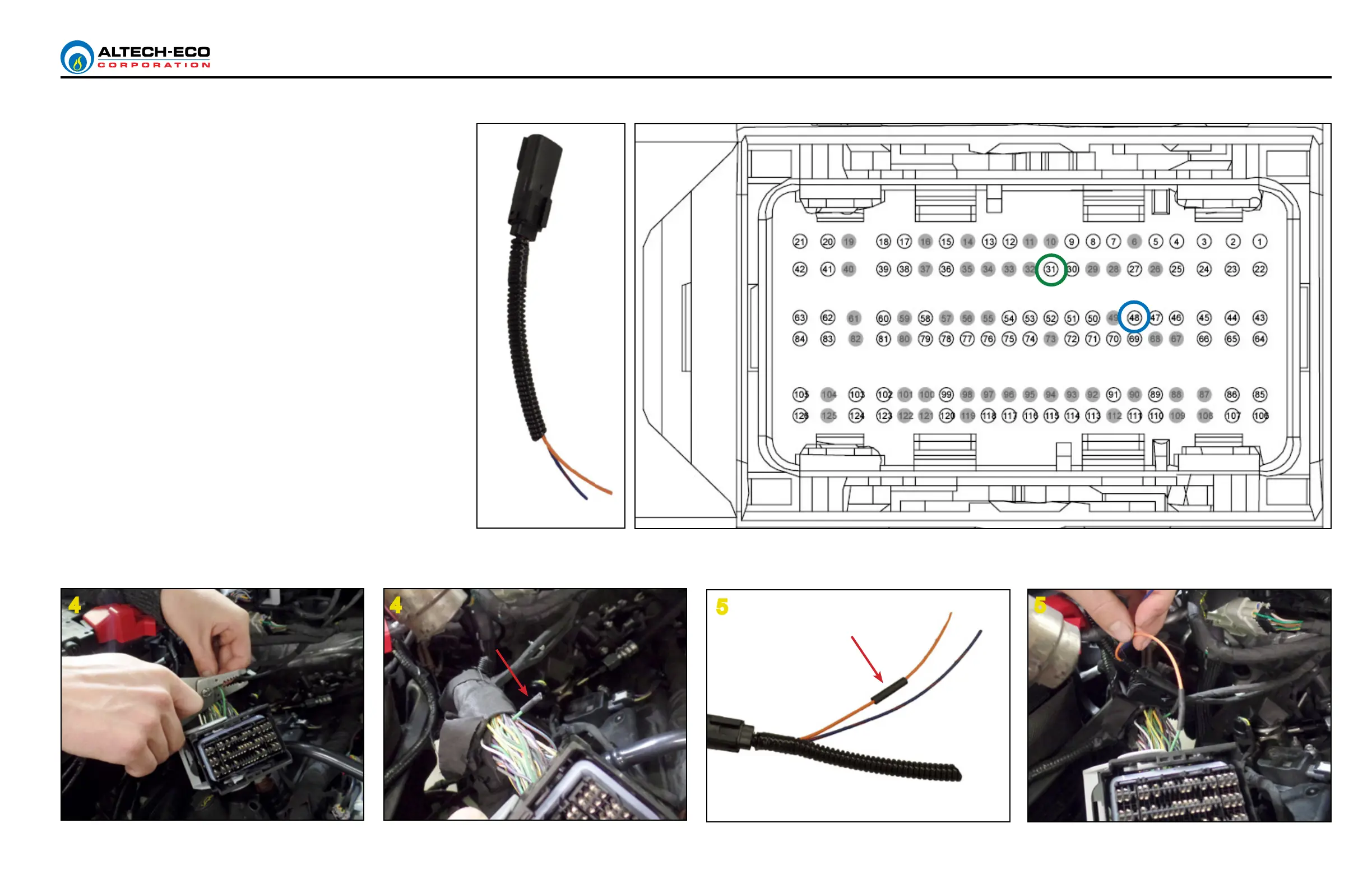

4. Locate OEM pin 31 (Green) wire.
Cut the wire, about 2-3 inches from the PCM connector.
Using shrink tube, cap off the green wire end going through
into the rest of the OEM harness. This end of the green wire
will no longer be used.
5. Retrieve the pig tail, place shrink tube on orange wire, and
solder the ORANGE pig tail wire to OEM GREEN wire.
Shrink tube the connection to nalize.
WIRING - PIG TAIL
Pig Tail
5
54 4
To Next Page
