2018 FORD F-150 5.0L COMPRESSED NATURAL GAS CONVERSION SYSTEM INSTALLATION INSTRUCTIONS
2018 F-150 5.0L INSTALLATION MANUAL
Page 20

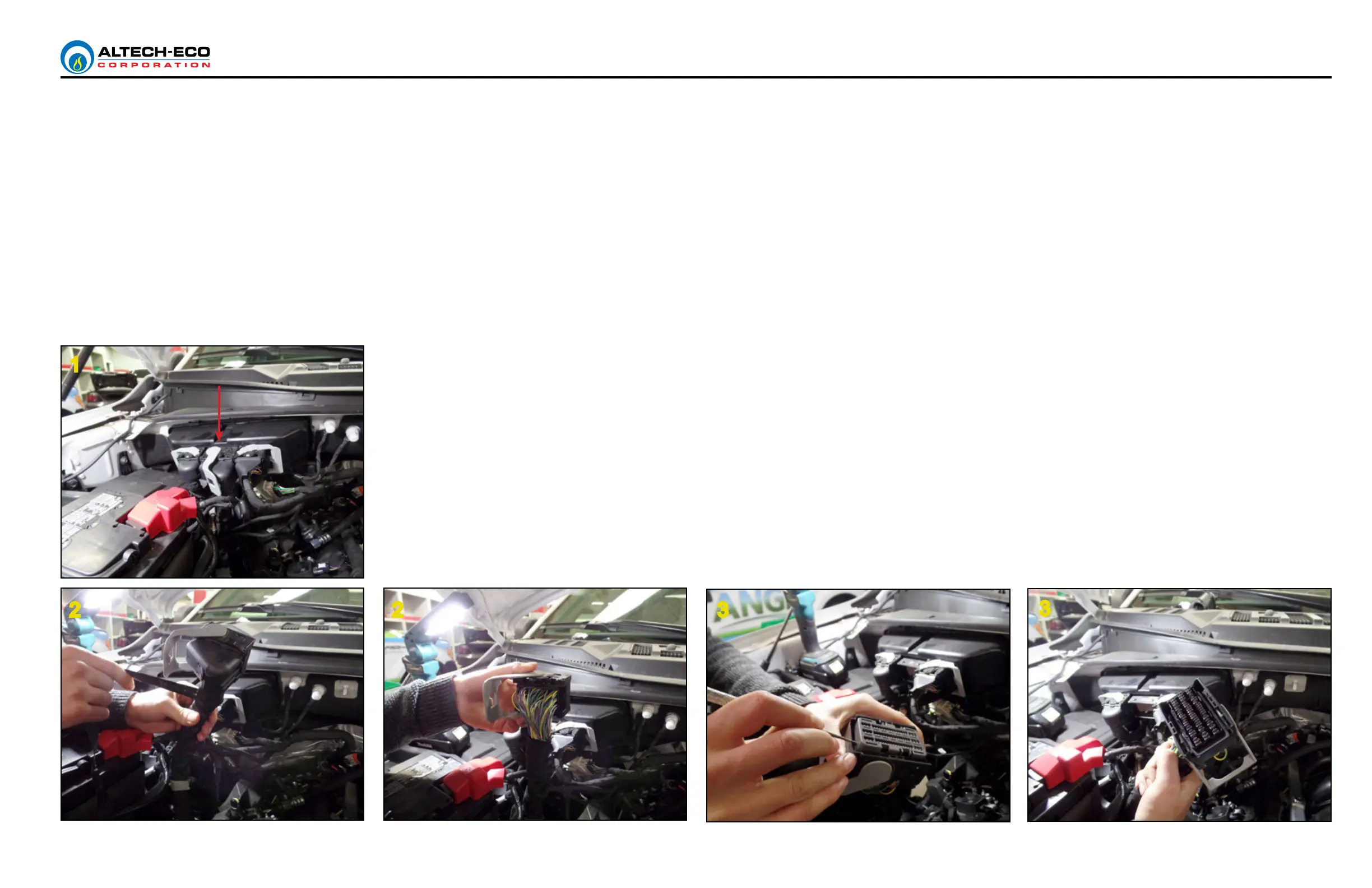

1. Remove middle PCM connector.
2. Remove connector back cover and any protective tape near to expose the wire. Save tape for
re-use.
3. Remove front face plate to expose the terminals. This face plate is numbered. Set aside to use as
a reference when locating a terminal.
WIRING - PIG TAIL
1
2 2 3
3
