2018 FORD F-150 5.0L COMPRESSED NATURAL GAS CONVERSION SYSTEM INSTALLATION INSTRUCTIONS
2018 F-150 5.0L INSTALLATION MANUAL
Page 27

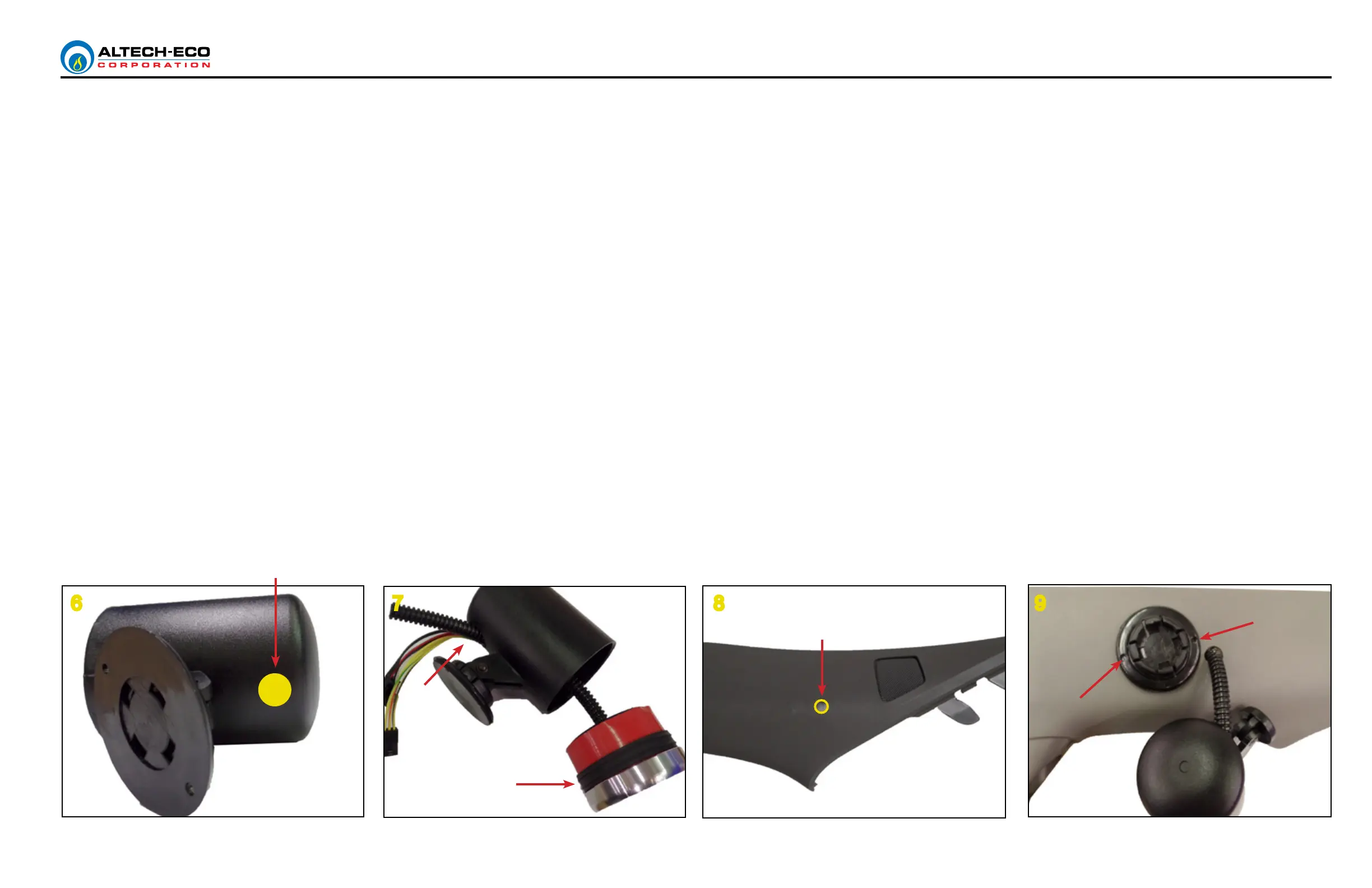

6. Retrieve the gauge pod, and enlarge hole to 3/4”.
7 Insert the gauge wires through the pod hole and combine gauge with pod.
Ensure the rubber o-ring is also placed over the gauge housing.
Insert gauge into pod. Adjust as needed to ensure clear visibility.
8. Modify the A pillar by drilling a 7/16” hole in location shown.
9. Using the two screws included in the pod kit, secure pod base to location shown.
Run the gauge wires and connectors through the 7/16” hole.
FUEL GAUGE ROUTING and INSTALL
Enlarge to 3/4”
6 7 8 9
To Next Page
