2018 FORD F-150 5.0L COMPRESSED NATURAL GAS CONVERSION SYSTEM INSTALLATION INSTRUCTIONS
2018 F-150 5.0L INSTALLATION MANUAL
Page 35

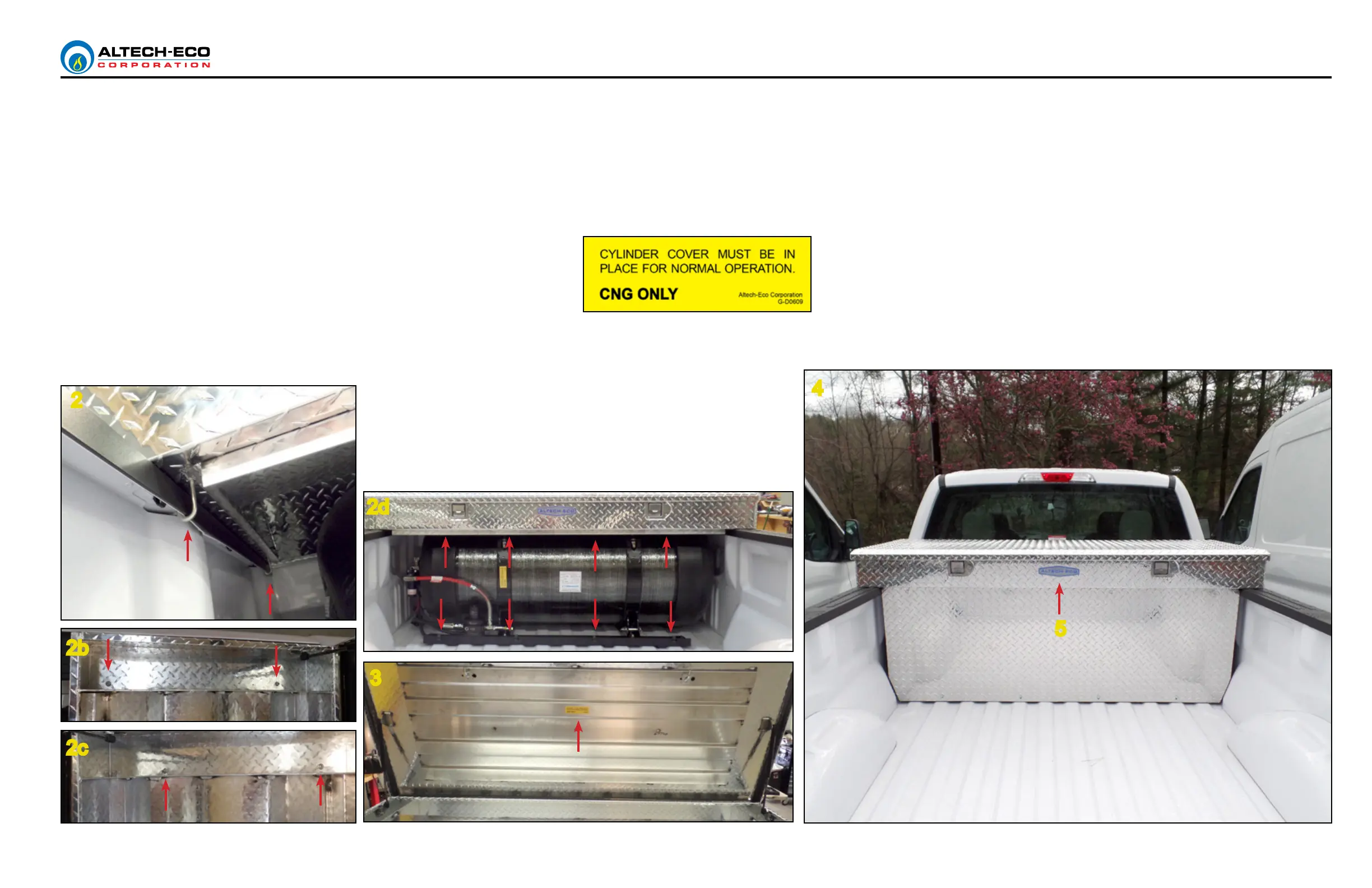

CYLINDER COVER - TOOL BOX OPTION
NOTE: Perform a leak check rst before placing cover!!
1. Install the toolbox over the cylinder.
Secure toolbox to the truck bed with four hooks (two on each side) and bolts supplied with kit.
2. Place four u-nuts onto rear cylinder base plate.
Drill four holes on toolbox lip and place four u-nuts.
3. Attach sticker (P/N: G-D0609) on the inside of the skirt. Decal must be clearly visible.
Place cover decal inside the cylinder cover and one on cylinder strap closest to the valve.
4. Place skirt into place and secure with eight 1/4-20 x 1” bolts.
5. Center and place Altech-Eco logo decal on toolbox.
Driver side
Passenger side
4
5
3
2
2b
2c
2d
