Altech-Eco CNG - Cylinder Installation - 5.5 & 6.5 Short Bed

2018 FORD F-150 5.0L COMPRESSED NATURAL GAS CONVERSION SYSTEM INSTALLATION INSTRUCTIONS
2018 F-150 5.0L INSTALLATION MANUAL
Page 6
CYLINDER INSTALL - 5.5’ SHORT BED / 6.5’ SHORT BED (18” x 60” CYLINDER)
2015-2018 FORD F-150 5.0L COMPRESSED NATURAL GAS CONVERSION SYSTEM
15-18F5.0-DRILLTEMP18x60-5.5SB

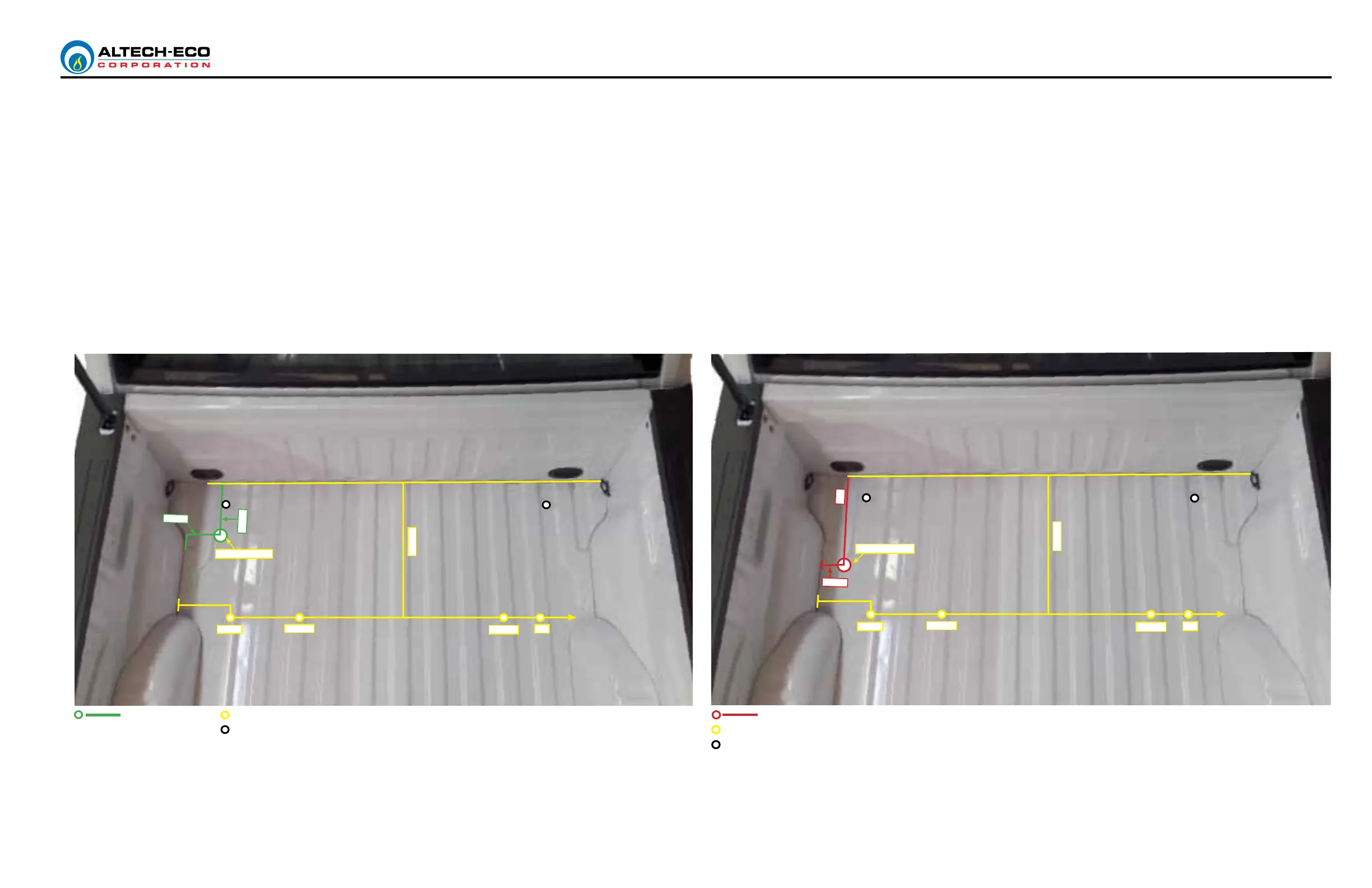

2015-2018 F-150 5.0L Drill Template - 5.5’ SHORT BED
For 18 x 60 Cylinder.
8 7/8”
2 1/2” hole
Short Bed, 5.5’ 9/16” hole
OEM hole
Update: 1-16-18
3 1/4”
7 3/4”
46 1/4”
51”
17 1/2”
21 1/2”
2015-2018 FORD F-150 5.0L COMPRESSED NATURAL GAS CONVERSION SYSTEM
15-18F5.0-DRILLTEMP18x6018x60-6.5SB
2015-2018 F-150 5.0L Drill Template - 6.5’ SHORT BED
For 18 x 60 Cylinder.
1 5/8”
13”
2 1/2” hole
9/16” hole
OEM hole
Update: 1-16-18
Short Bed, 6.5’
7 3/4”
46 1/4”
51”
17 1/2”
21 1/2”
1. Use the template layout and measure out each drill point. Mark the holes
in shown locations. Always verify your measurements before drilling.
2. Drill each hole according to the template.
3. De burr and rust proof any exposed metal.
USE ONLY FORD QVM APPROVED ANTI CORROSION PRODUCTS
Note: Always check website installer portal for most up to
date templates at www.altecheco.com
