2018 FORD F-150 5.0L COMPRESSED NATURAL GAS CONVERSION SYSTEM INSTALLATION INSTRUCTIONS
2018 F-150 5.0L INSTALLATION MANUAL
Page 7
1. Use the template layout and measure out each drill point.
Mark the holes in shown locations. Always verify your
measurements before drilling.
2. Drill each hole according to the template.
3. De burr and rust proof any exposed metal.
USE ONLY FORD QVM APPROVED ANTI CORROSION
PRODUCTS
Note: Always check website installer portal for
most up to date templates at www.altecheco.com
CYLINDER INSTALL - 6.5’ SHORT BED (21” x 60” CYLINDER)
2016-2018 FORD F-150 5.0L COMPRESSED NATURAL GAS CONVERSION SYSTEM
16-18F5.0-DRILLTEMP21x60-6.5

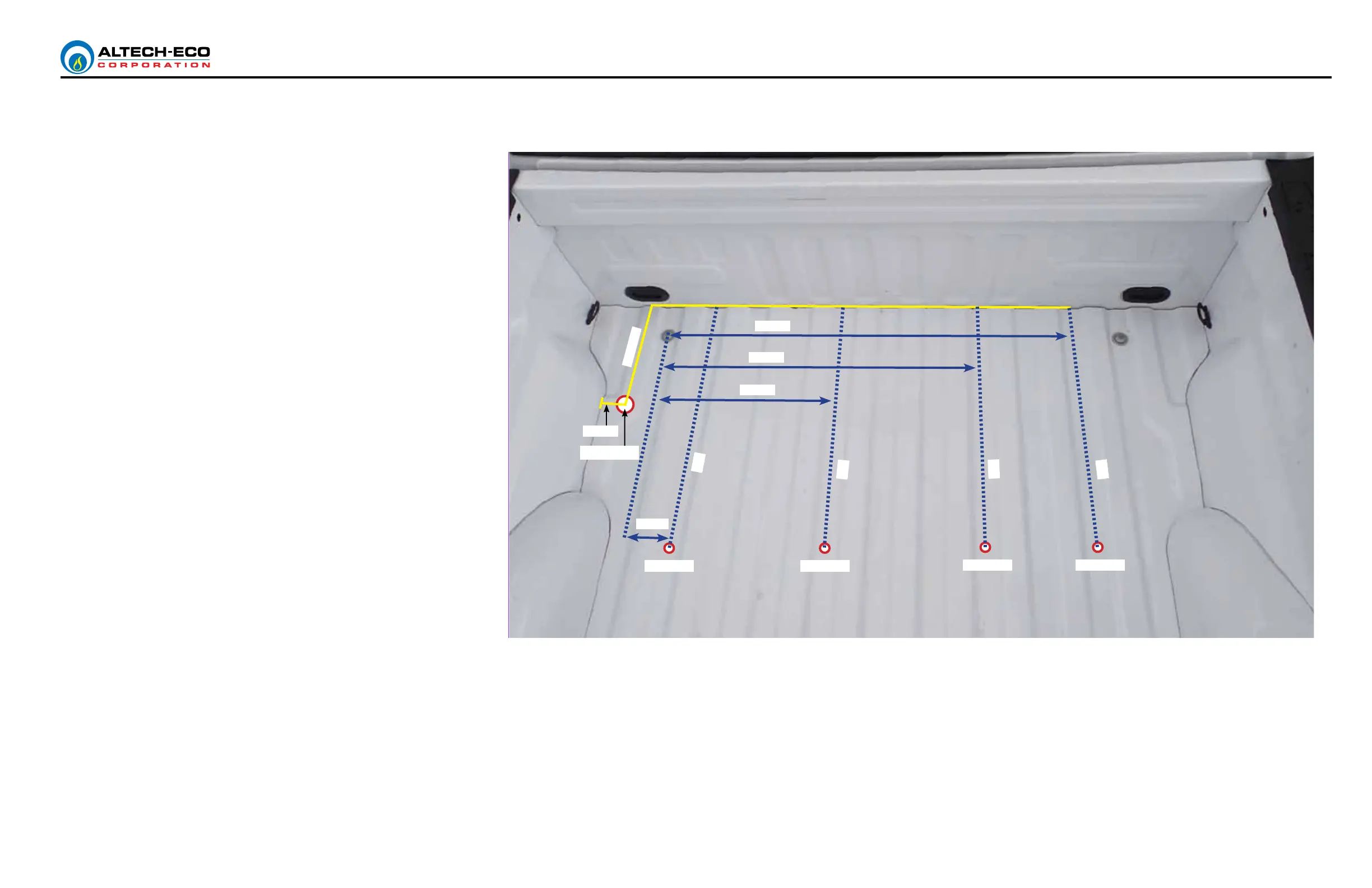

Drill Template - 6.5’ SHORT BED - 21 x 60 Cylinder.
26”
26”
26”
26”
2 3/4”
11 3/4”
4 3/4”
19 1/4”
33 1/2”
43 1/4”
3/4” hole
2 1/2” hole
3/4” hole
3/4” hole 3/4” hole
To Next Page
