CYLINDER INSTALL - 8’ LONG BED (21” x 60” CYLINDER)
8’ Bed - Use four OEM holes and drill two center holes
as shown.
2016-2018 FORD F-150 5.0L COMPRESSED NATURAL GAS CONVERSION SYSTEM

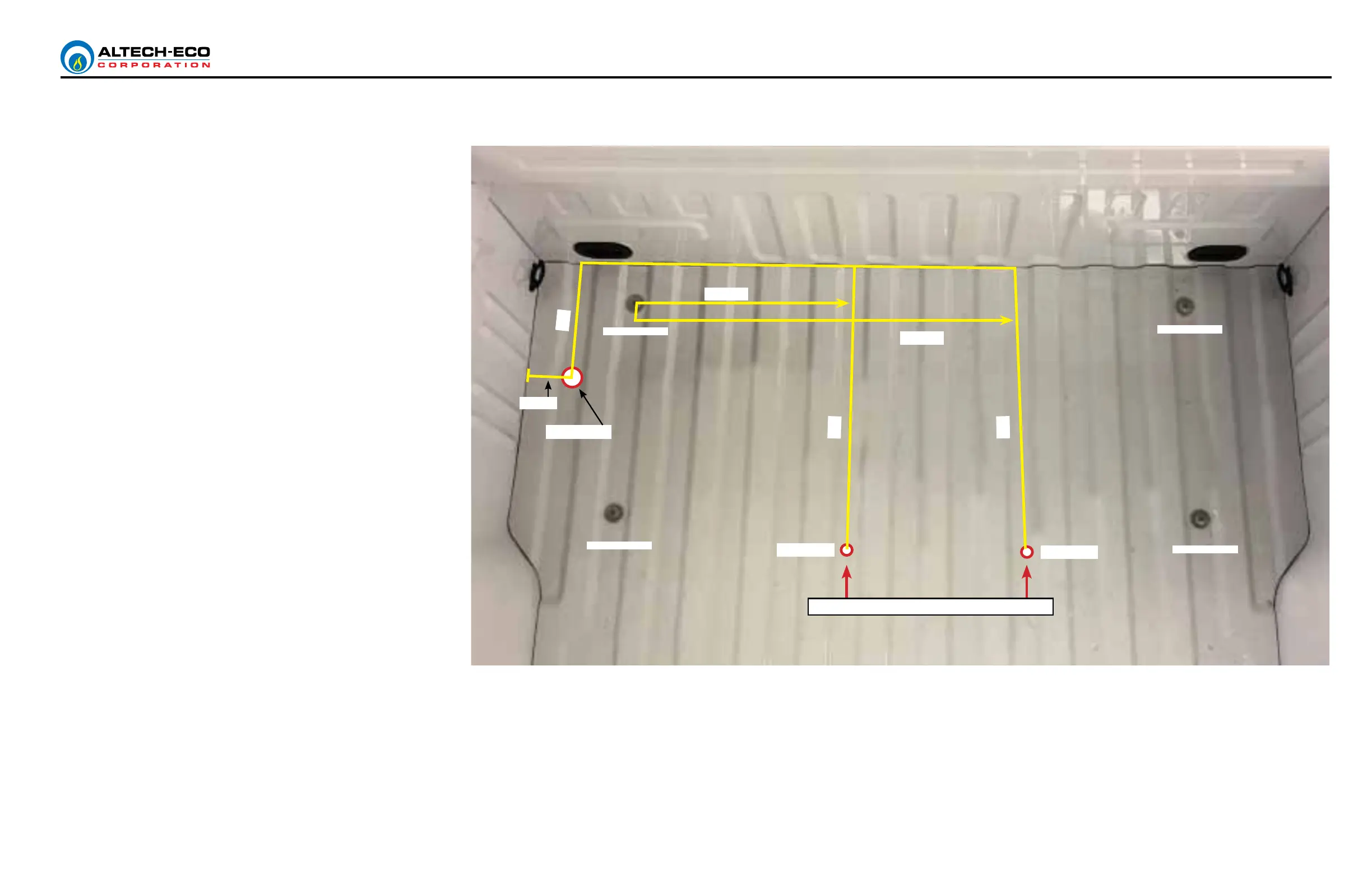

16-18F5.0-DRILLTEMP21x60-8
2016-2018 F-150 5.0L Drill Template - 8’ LONG BED
For 21 x 60 Cylinder.
26”
26”
3 5/8”
19 1/4”
33 1/2”
11”
LB OEM hole
LB OEM hole
LB OEM hole
LB OEM hole
2 1/2” hole
3/4” hole
3/4” hole
Drill ONLY these two center holes
Updated: 1/16/18
1. Use the template layout and measure out each drill point.
Mark the holes in shown locations. Always verify your
measurements before drilling.
2. Drill each hole according to the template.
3. De burr and rust proof any exposed metal.
USE ONLY FORD QVM APPROVED ANTI CORROSION
PRODUCTS
Note: Always check website installer portal for
most up to date templates at www.altecheco.com
