44 MN-38954 • Rev 0 • 04/17 • Quickchillers
Service

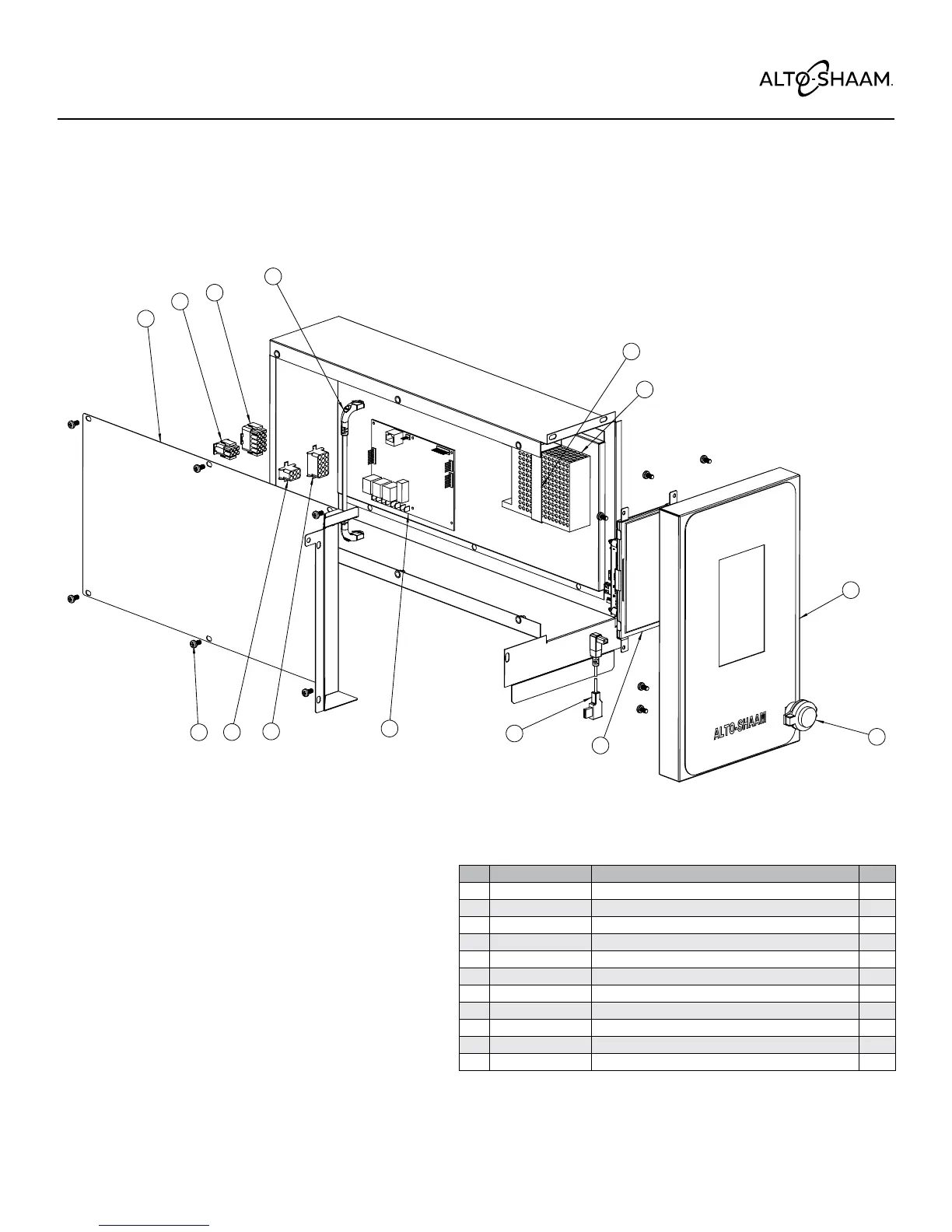

QC3-3 Control Box
6
14
8
2
10
4
1
5
12
13
3
9
7
11
Item Part Description Qty.
1 5021440 LCD, 7" Touch Assembly 1
2 CB-38675 Ethernet Cable 1
3 CC-36419 Control Board 1
4 CB-35746 Connector, USB, Panel Mount 1
5 CB-36571 USB Communication Cable w/ plug 1
6 CR-37491 Connector, Male, Housing 1
7 CR-37493 Connector, Female, Housing 1
8 CR-37322 Connector, Male, Housing 1
9 CR-37321 Connector, Female, Housing 1
10 BA-29927 Power Supply, 115V to 12VDC 1
11 PE-37597 Control Panel Overlay 1
