Alto-Shaam QC3-100

58 MN-38954 • Rev 0 • 04/17 • Quickchillers
Service

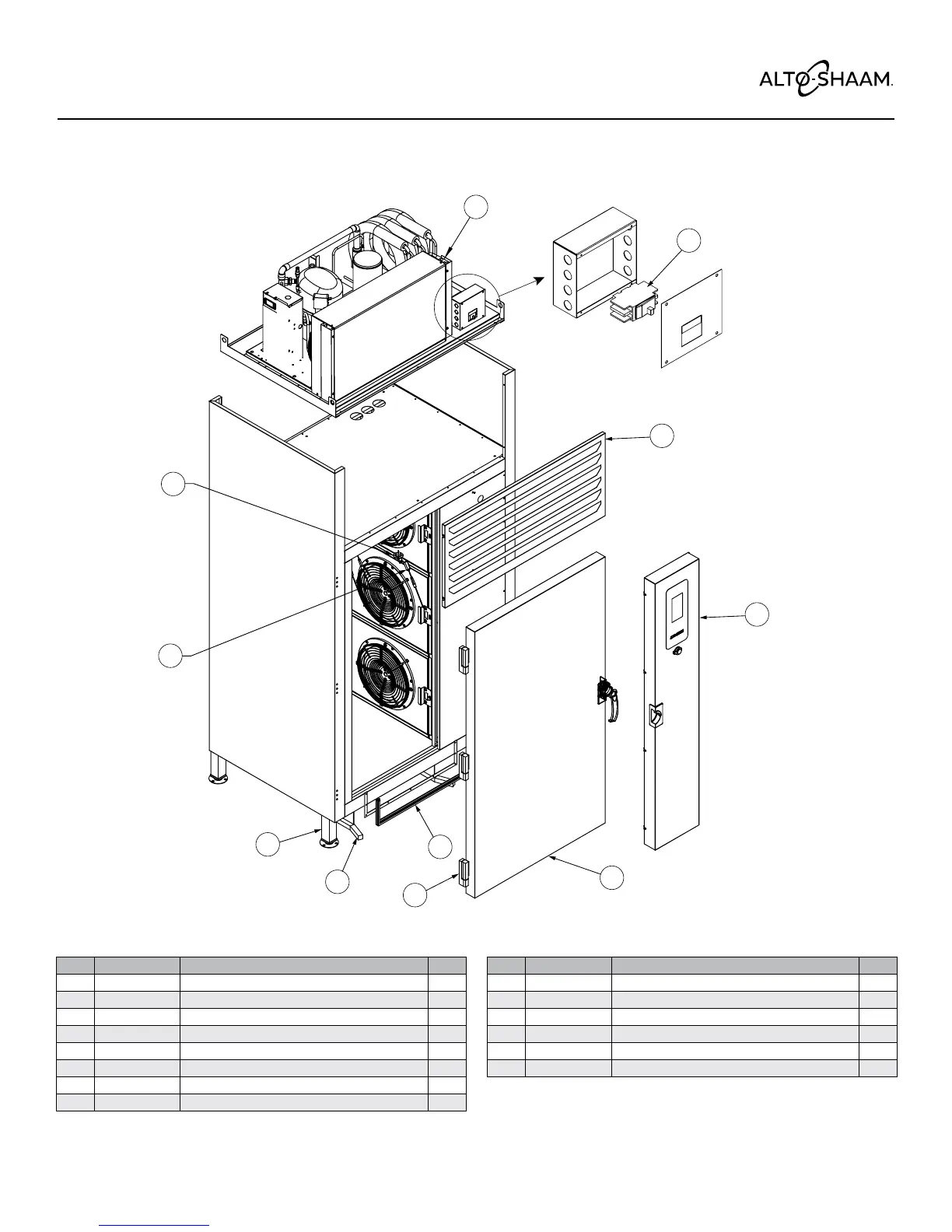

QC3-100 Interior (le-hand door shown)
3
4
5
9
6
7
8
1
10
11
2
Item Part Description Qty.
1 RE-29983 Condensing Unit, 3HP 208/230V 1 Phase 1
RE-35172 Condensing Unit, 3HP 208/230V 3 Phase 1
2 FU-29996 Breaker, 2 Pole, 30 Amp 1
3 PN-29842 Louver Panel 1
4 PN-37602 Panel, Control Panel Assembly, Left-Hand 1
PN-37603 Panel, Control Panel Assembly, Right-Hand 1
5 DR-29990 Door Assembly, Left-Hand 1
contact factory Door Assembly, Right-Hand 1
Item Part Description Qty.
6 HG-36650 Hinge, Adjustable 3
7 GS-29994 Gasket, Compression 1
8 contact factory Trolley Guides 1
9 5016746 Leg Assembly (Set of 4) - Not factory installed 1
10 PR-35770 Probe, Quick Connect 3
11 PR-35486 Probe, Receptacle 3
