The values can be set in the following ranges:
5.3.3 Xover
Low-pass and high-pass filters.

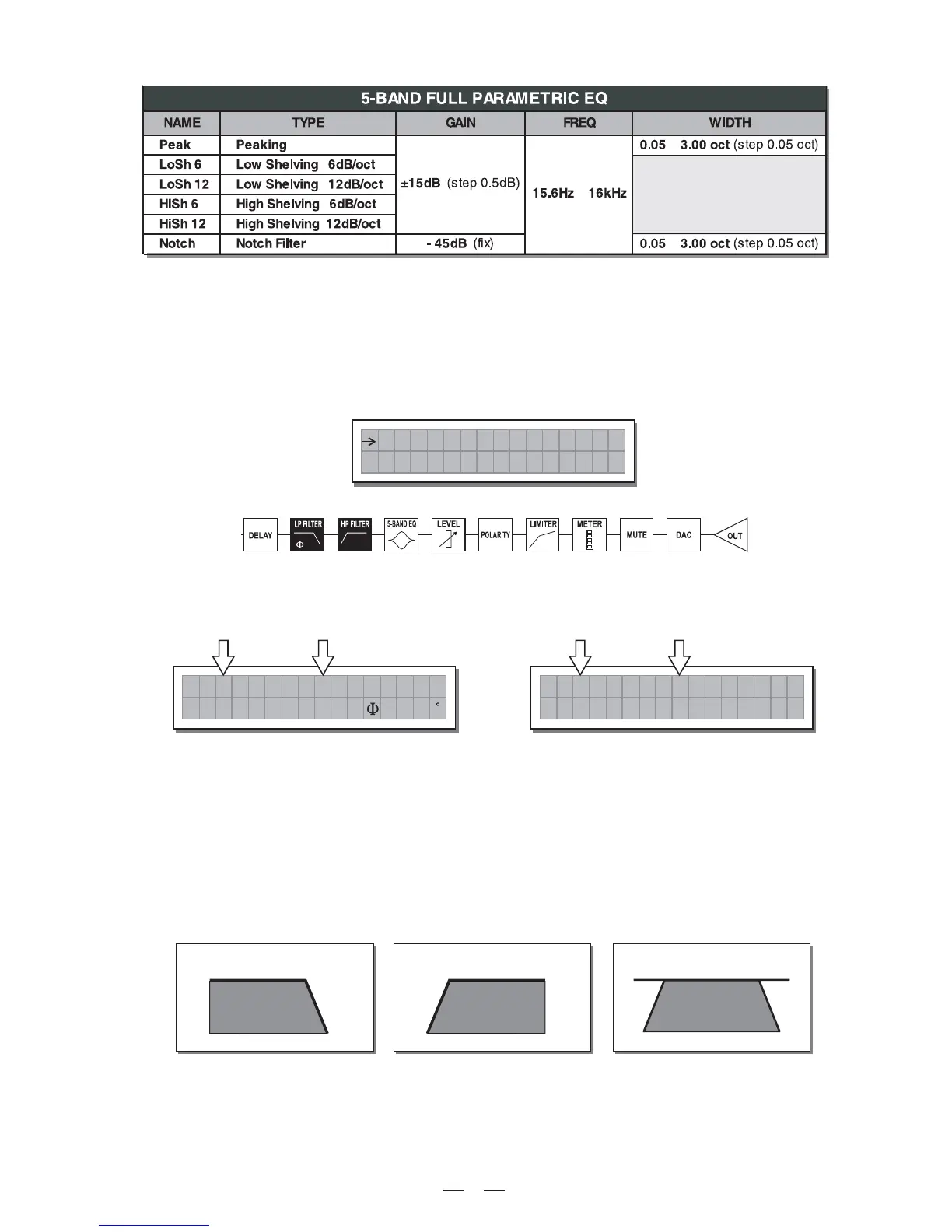

Made up of a combination of a low-pass filter and high-pass filter, the crossover allows to divide the
into segments that can be used by the individual section of a sound system (for example
audio signal
High, Mid & Low).
Each Xover has 2 slightly different pages (one for each filter), where the name of the output it affects and the
type of filter are shown.
Low Pass Filter
High Pass Filter
The high-pass filter allows all the frequencies above a specific frequency to pass, whereas it cuts all the frequencies
below it.
LPF HPF
HPFLPF
Signal segment obtained with the combination of LPF and HPF.
Xover
Output1-LowPassFilter
PO
1
0
L
P
F
h
r
u
T
1k
00Hz
Output1-HighPassFilter
OP
1
H
P
F
h
r
u
T
1k
00Hz
~
~
~
The low-pass filter allows all the frequencies below a specific frequency to pass, whereas it cuts all the frequencies
above it.
