Instruction for montage of outside roller shutters in
ADAPTING system, type SK
and in
ADAPTING system, type SK with MOSKITO.
SK_+_moskito_m_uk We reserve the right to any technical change. Valid on: 2009-06-02
102
103
104
105
106
107
108
109

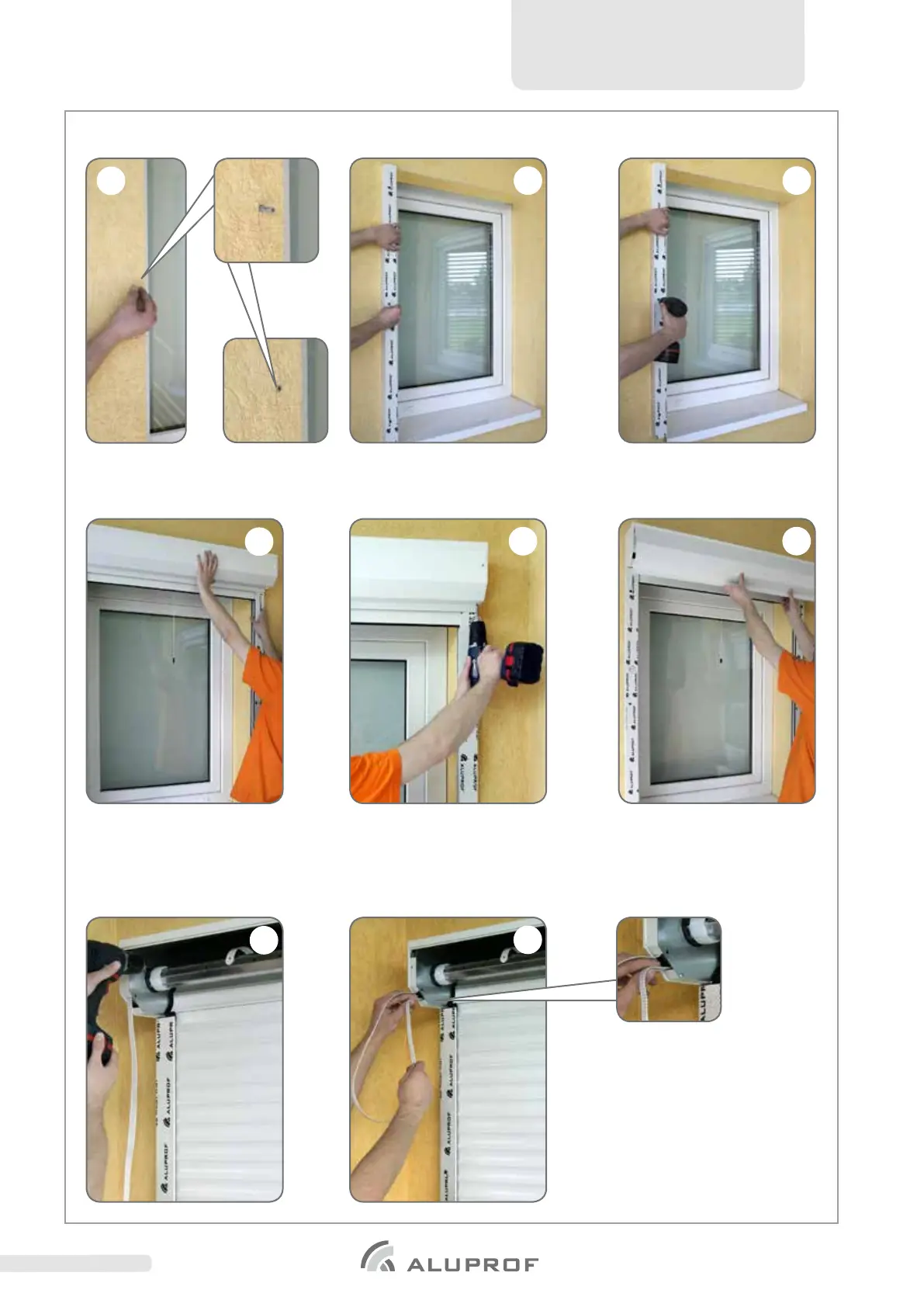

d) Insert the rawlbolts into drilled holes [102], next put the guide channel [103] and screw it to the basis
e) Puttheshutterbox(togetherwiththesecondguidechannel)tothewall[105],placeitasinthecaseoftherstguide
channel, mark the places of drilling, drill the holes, insert the rawlbolts and screw the all to the basis. Then unscrew the
screws [106] and open the shutter box (base part) [107].
f) Lower the roller shutter’s curtain to the windowsill and screw the shutter box to the basis (on either side) [108].
Pull the strap (rope) through the hole to the inside of the room [109]. In the case of the roller shutter with an electric drive,
adjust additionally the endstops (by using the assembly wire) then connect the control elements in accordance
with assembly instruction (for the drive, control unit, driver, etc.). Take out the power cord in accordance with the plans
of the wiring.
