Instruction for montage of outside roller shutters in
ADAPTING system, type SK
and in
ADAPTING system, type SK with MOSKITO.
SK_+_moskito_m_uk We reserve the right to any technical change. Valid on: 2009-06-02
110
111
112
113
114
115
116
117
118

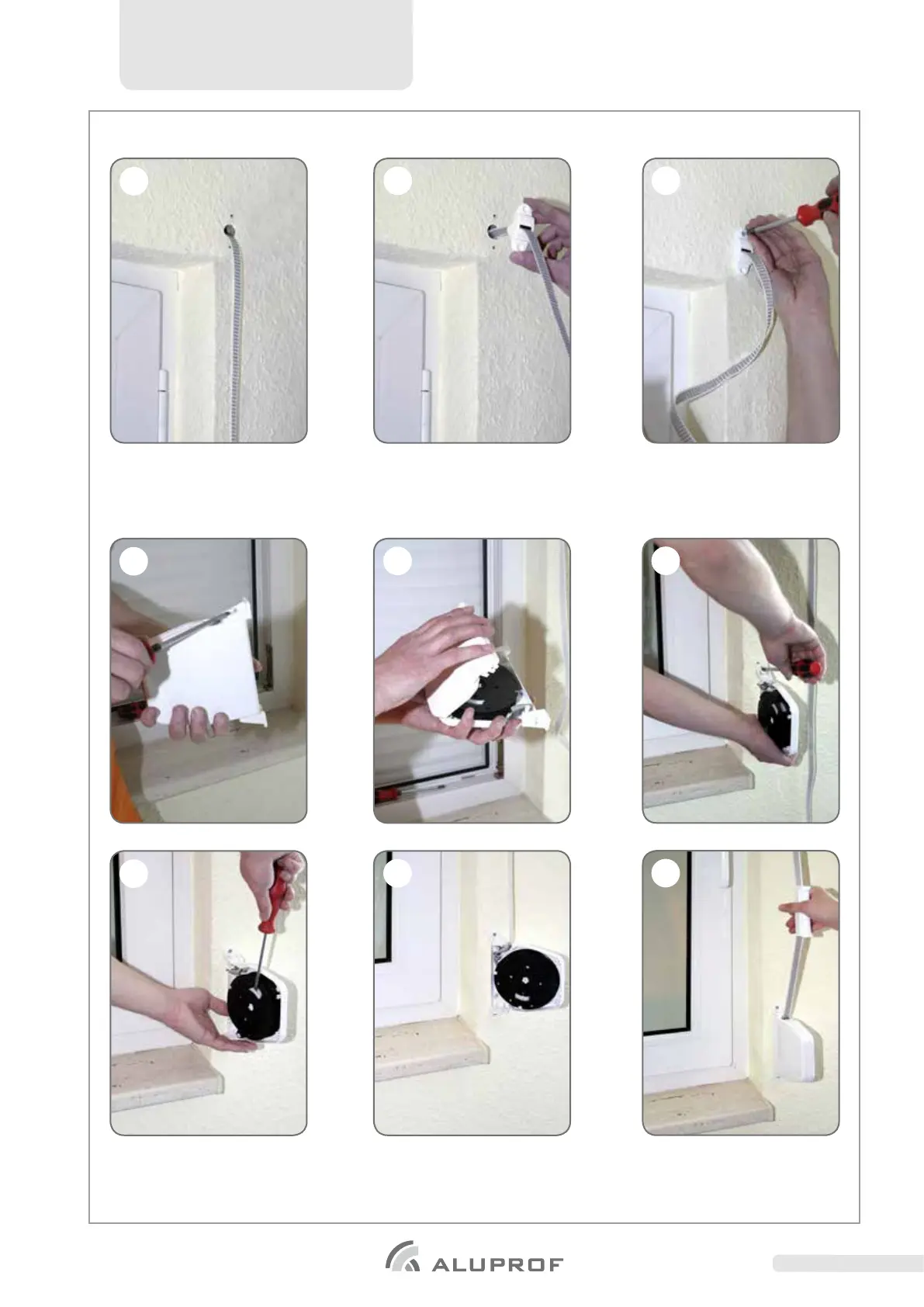

g) From the inside of the room, at the outlet of the hole [110] mount the strap (rope) guide [111] by using the screws [112].
h) Pull the joints out [113] and lever up one of the casing’s side with the screwdriver – open the box coiler [114]. Screw the
  boxcoilertothewindowframeusingscrews[115].Hookstrap(rope)tothefastener,andsimultaneouslykeeprmlythe
spring’s cover, then rotate and release the blockade [116]. When the box coiler is mounted and curtain is dropped, 2-3
coils of strap / rope should be winded up on the spring’s drum [117]. Close the box coiler’s casing [118].
i) Check if the electric connections are made correctly
j) Perform the attempt of roller shutter’s operating.
