Aluprof SK - Mount and Close Box Coiler; Verify Electric Connections

- 7 -
Instruction for montage of outside roller shutters in
ADAPTING system, type SK
and in
ADAPTING system, type SK with MOSKITO.
SK_+_moskito_m_uk We reserve the right to any technical change. Valid on: 2009-06-02
24
25
26
27
28
29
30
31
32

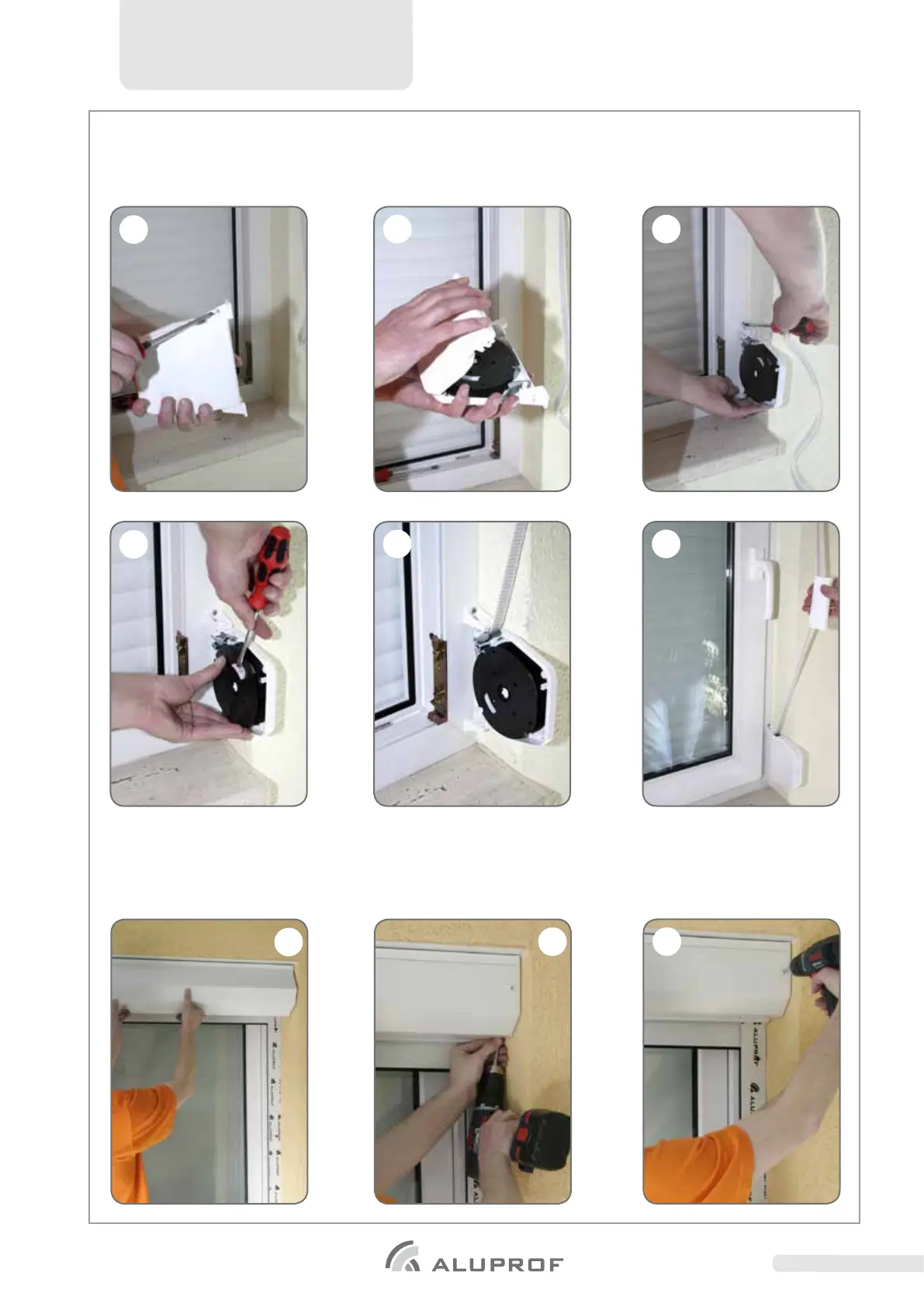

g) Pull the joints out [24] and lever up one of the casing’s side with the screwdriver – open the box coiler [25]. Screw the box
  coilertothewindowframeusingscrews[26].Hookstrap(rope)tothefastener,andsimultaneouslykeeprmlythe
spring’s cover, then rotate and release the blockade [27]. When the box coiler is mounted and curtain is dropped,
2-3 coils of strap / rope should be winded up on the spring’s drum [28]. Close the box coiler’s casing [29].
h) Check if the electric connections are made correctly.
i) Perform the attempt of roller shutter’s operating.
j) Close [30] and screw the shutter box (base part) [31], [32].
