Instruction for montage of outside roller shutters in
ADAPTING system, type SK
and in
ADAPTING system, type SK with MOSKITO.
SK_+_moskito_m_uk We reserve the right to any technical change. Valid on: 2009-06-02
17
18
20
22
23
21
19

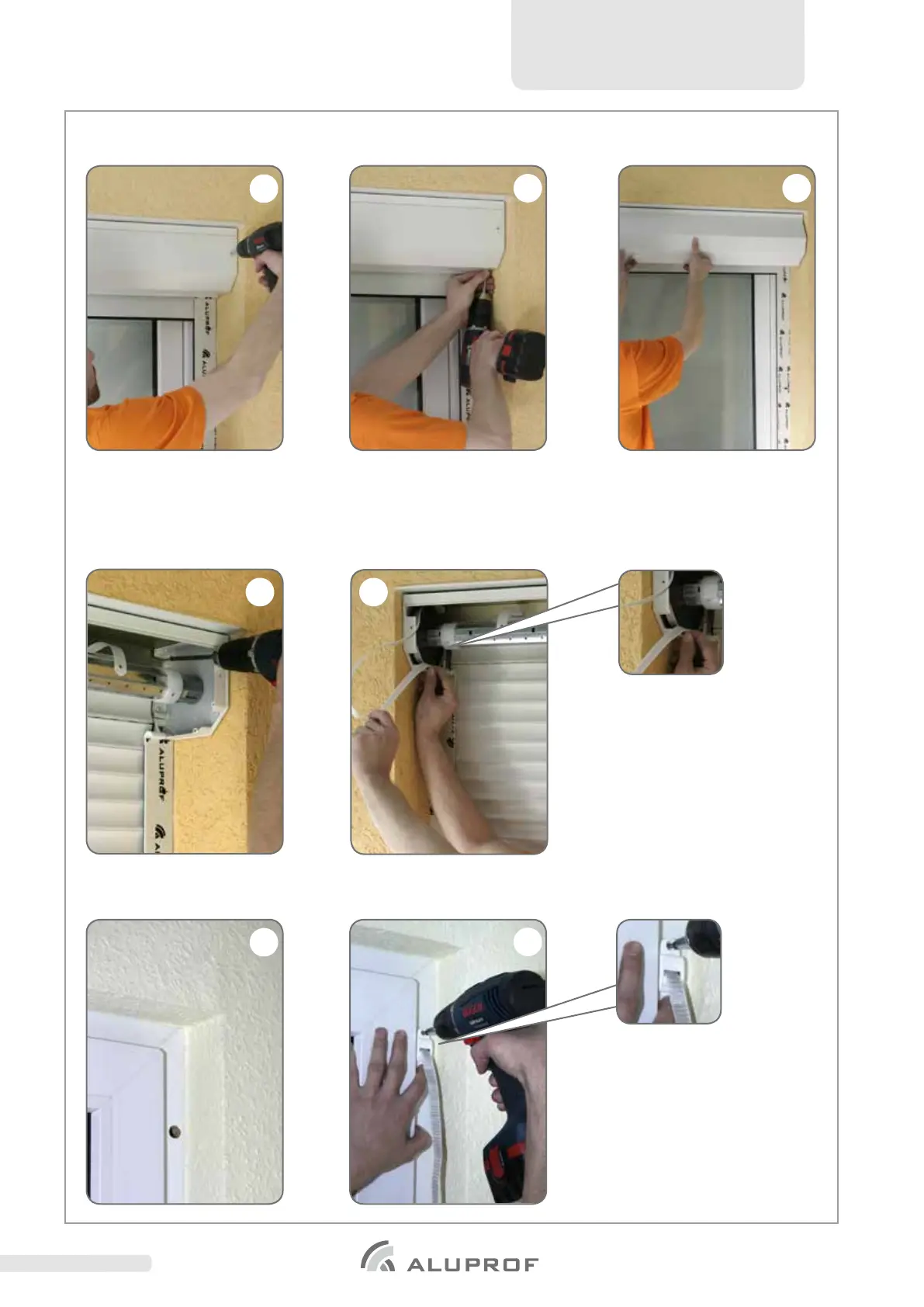

d) Unscrew the screws [17], [18] and open the shutter box (base part) [19].
e) Lower the roller shutter’s curtain to the windowsill and screw the shutter box to the basis (on either side) [20]. Pull the
strap (rope) through the hole to the inside of a room [21]. In the case of the roller shutter with an electric drive, adjust
additionally the endstops (by using the assembly wire) then connect the control elements in accordance with as sembly
instruction (for the drive, control unit, driver, etc.). Take out the power cord in accordance with the plans of the wiring.
f) From the inside of the room, at the outlet of the hole [22] mount the strap (rope) guide to the window frame with the
screws [23].
