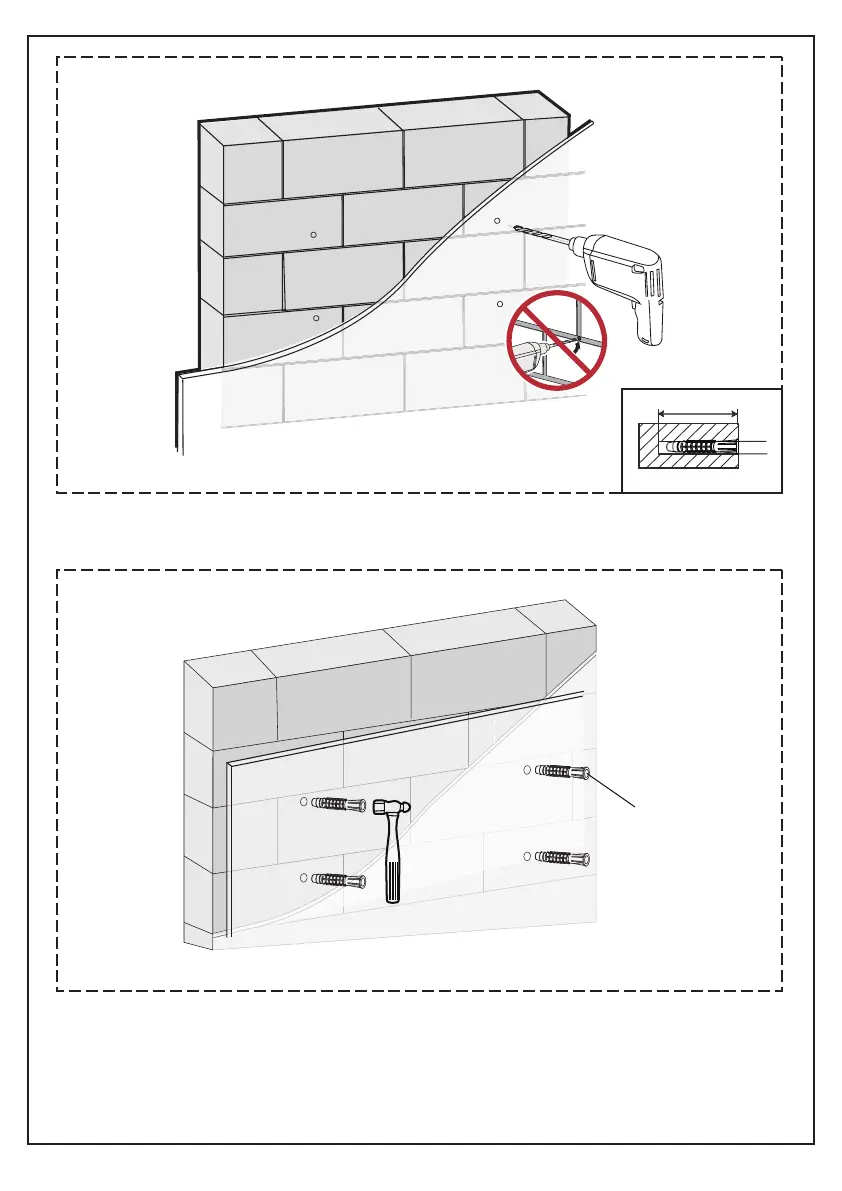

Use the hammer to knock wall anchors [D] into the wall. Be sure the anchors [D] are
seated flush with the concrete surface.
D
Drill 4 pilot holes using a 15/64 in.(6mm) diameter drill bit. Make sure the depth is not
less than 1.4 in.(35mm). Never drill into the mortar between blocks.
1.4 in.(35mm)
For Short Lag Screw
ø15/64 in.(ø6mm)
7
