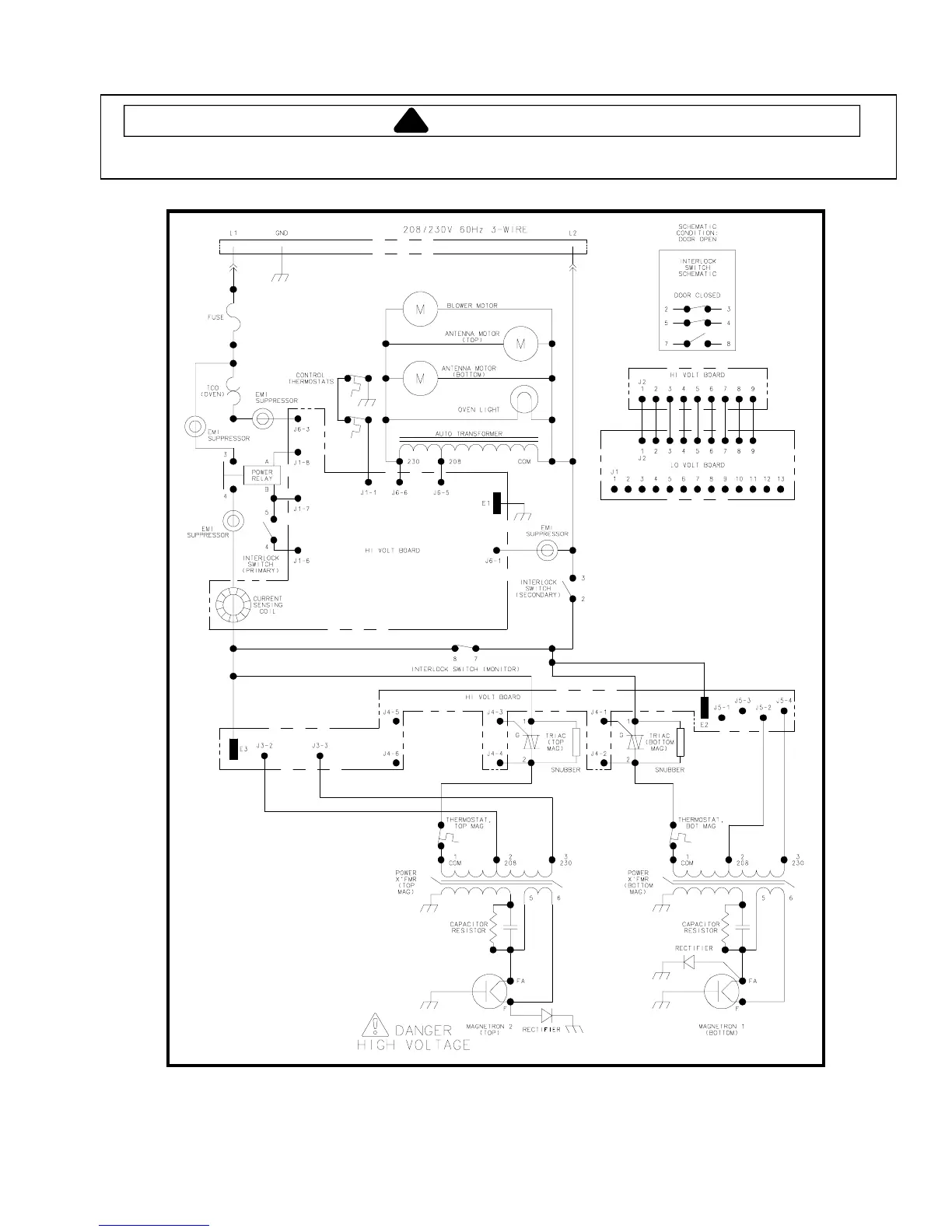

Wiring Diagrams and Schematics
!
WA
RNING
To avoid ris
k of elec
trical shoc
k, pers
onal injury, or death, disconnect power to oven and dischar
ge capacitor
before s
ervicing, unless test
ing requires power.
RS2220001 Rev. 3
54
RC17
P1198612M
RC17SD
P1198623M
53
55
Table of Contents
Important Product Information
2
Table of Contents
3
Important Information
4
Important Safety Information
5
Microwave Leakage Testing
6
Equipment
6
Procedure for Measuring Radiation Leakage
6
Measurement with the Outer Panel Removed
6
Measurement with a Fully Assembled Oven
6
Record Keeping and Notification after Measurement
6
Specifications
7
Installation
8
Care and Cleaning
8
Replacing Oven Light Bulb
8
Installation Installation
8
Product Information
9
Antennas, Antenna Gears, Antenna Motors
9
Autotransformer
9
Blower/Fan Assembly
9
Power Relay
9
Door Interlock and Monitoring Switch
9
Grease Shield
9
Transformers
9
High Voltage Capacitor
9
High Voltage Diode (Rectifier)
9
Operating Instructions
10
Control Panel
10
Pads
10
Readout Display
10
Preprogrammed Pads
11
Operating Preprogrammed Pads
11
Variable Time Entry
11
Summary of Programming Multiple Stages
11
Operating Notes
11
DQ & MC" Operating Instructions
12
Preprogrammed Menu Items
12
Operating Preprogrammed Menu Items
12
Variable Time Entry
12
Operating Notes
12
Programming Menu Items
13
Programming Multiple Stages
13
[QTY] Quantity (RC16, RC17, RC20, RC22, RC27)
14
[LMT] Limit (All Models)
14
Programming PAUS
14
Using PAUS Function
14
Option Programs (All Models Except WDYRC)
15
WDYRC Operating Instructions
16
Component Testing Procedures
17
Display Diagnostics
21
Service Codes
21
S1 Watchdog - Membrane Touch Panel
22
HOT Magnetron Overheating
22
CS Current Sense
22
PCE1 Checksum
23
PCE5 Communication Failure
23
PCE6 Communication Failure
23
HI High Line Voltage
23
LO Low Line Voltage
23
Service Test - All Models Except WDYRC
24
Accessing Service Test Mode
24
H.V. System Test
24
Diagnosing Individual H.V. System Components
24
Door Cycles and Magnetron Hours
25
Temperature Chart
26
Power Test (Traditional 1 Liter Test)
26
Troubleshooting
27
Initial Power up
27
Troubleshooting Initial Power up
27
Stand by Condition
28
Cook Condition
29
Disassembly
30
Latch Handle
30
Door
30
Outer Case
30
Inner Door Ring Assembly
30
Hinge
30
Bottom Shelf
31
Grease Shield
31
Outer Case
31
Top Keypad
31
Side Keypad
31
Low Voltage Circuit Board
31
Top Antennas
32
Top Antenna Motor
32
Antenna Matching
32
Interlock Switch Module
33
Top Rear Magnetron
33
Top Front Magnetron
33
Bottom Magnetron
34
Magnetron and Control Thermal Protectors (TCO)
34
Bottom Access Panel
34
Bottom Stirrer Motor
34
Bottom Antenna
35
Back Panel
35
Blower Wheel and Motor
35
Fan Blade
36
H.V. Board
36
Cavity Thermal Protector (TCO)
36
Power Cord
36
Component Location
36
Wiring Diagrams and Schematics
39
Wiring Diagrams and Schematics
60
