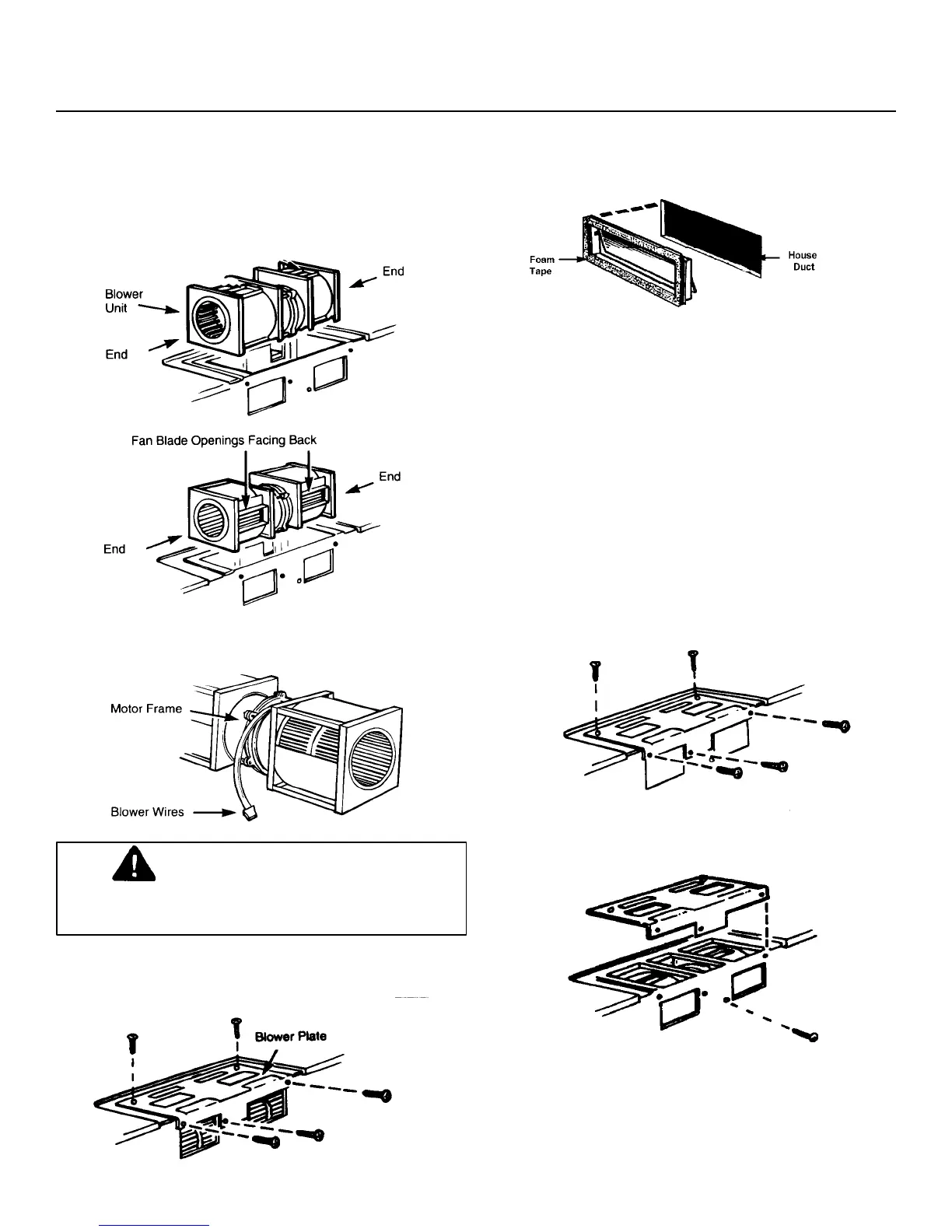

5
7. Guide wires into duct while placing blower unit back
into opening.
9. Fit exhaust adaptor into house duct. Be sure damper
hinge is on top and damper swings free into wall
outlet.
10. Remove paper from sticky side of 28 inch foam tape
strip. Press sticky side onto front edge of exhaust
adaptor. (Do not stretch foam tape).
11. Proceed to "Preparing Top Cabinet".
Recirculating Exhaust (Non-Vented/Ductless)
Exhaust adaptor with damper is not needed for
recirculating models. Save exhaust adaptor with damper
for possible future use. Charcoal filter kit must be used.
Contact dealer to purchase charcoal filter kit.
1. Slide exhaust adaptor to one side, squeeze sides and
remove. Save damper and exhaust adaptor.
2. Remove and save 5 screws that hold blower plate to
microwave oven.
8. Replace blower plate using 5 screws.
Caution
To avoid product failure, do not pull,
stretch, or pinch blower wiring.
3. Lift off blower plate.
4. Remove and save the screw that holds blower motor
to microwave.
5. Carefully pull out blower unit. Wires extend far
enough to allow for blower adjustments.
6. Turn blower unit end-over-end. Roll blower unit so
fan blade openings are facing out back of microwave
oven. Blower unit exhaust openings should match
exhaust openings on rear of microwave oven. Wires
should be routed in front of motor fan.
