Bismarck
175

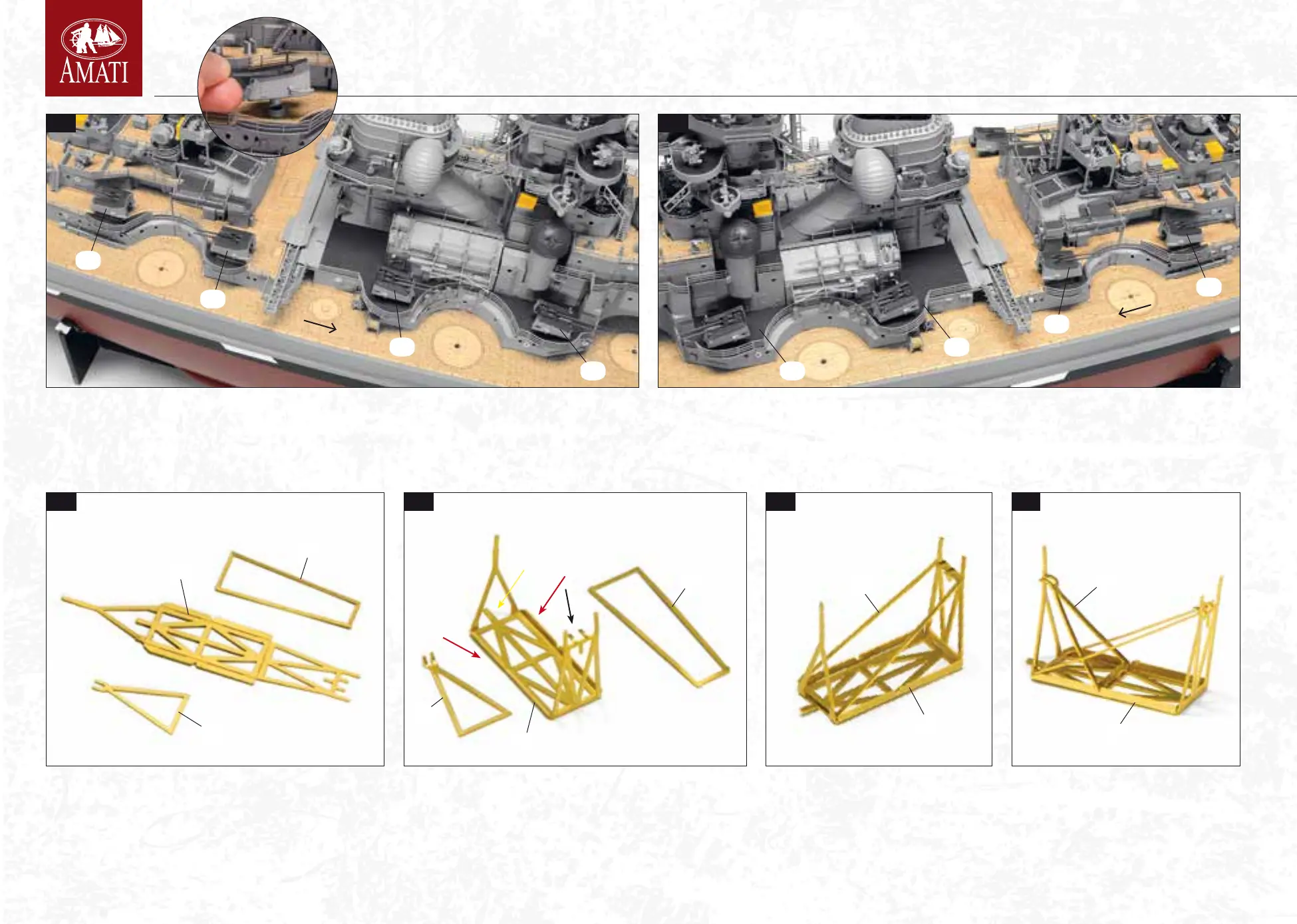

983 Remove the pieces shown in the picture from sheet 1564; you will need
them for the assembly of the slide of the catapult of the rst Arado.
985 Glue trapeze 1475 diagonally onto structure
1474; place the right end of this piece under the
two dowels just bent.
986 Take triangle 1476 and glue it diagonally onto
structure 1474 as shown in the picture. Attach the
two outer dowels of piece 1476 to the vertical pin
of the frame.
982 Move to the port side and attach the other four guns 2582, 2583 to the superstructure decks symmetrically.
984 Bend up the edges on the long side of piece 1474 (red arrows). Lift the
two parts, the back and the front; however, do not bend the dowel indicated
by the yellow arrow. Bend inwards at right angle the two dowels at the top
indicated by the black arrow. Also curve the two upper dowels of triangle
1476 upwards.
981 Insert the dowel protruding under the base of the heavy anti-aircraft guns into base 2553 as shown in the detail and x two
cannons 2583 to the lower deck of the stern superstructure on the starboard side and two cannons 2582 to the lower deck of the
stern superstructure.
981
983 984
982
985 986
2583
2583
2582
2582 2582
2582
2583
2583
1475
1474
1474
1475
1475
1476
1474
1474
1476
1476
BOW
BOW
