1.

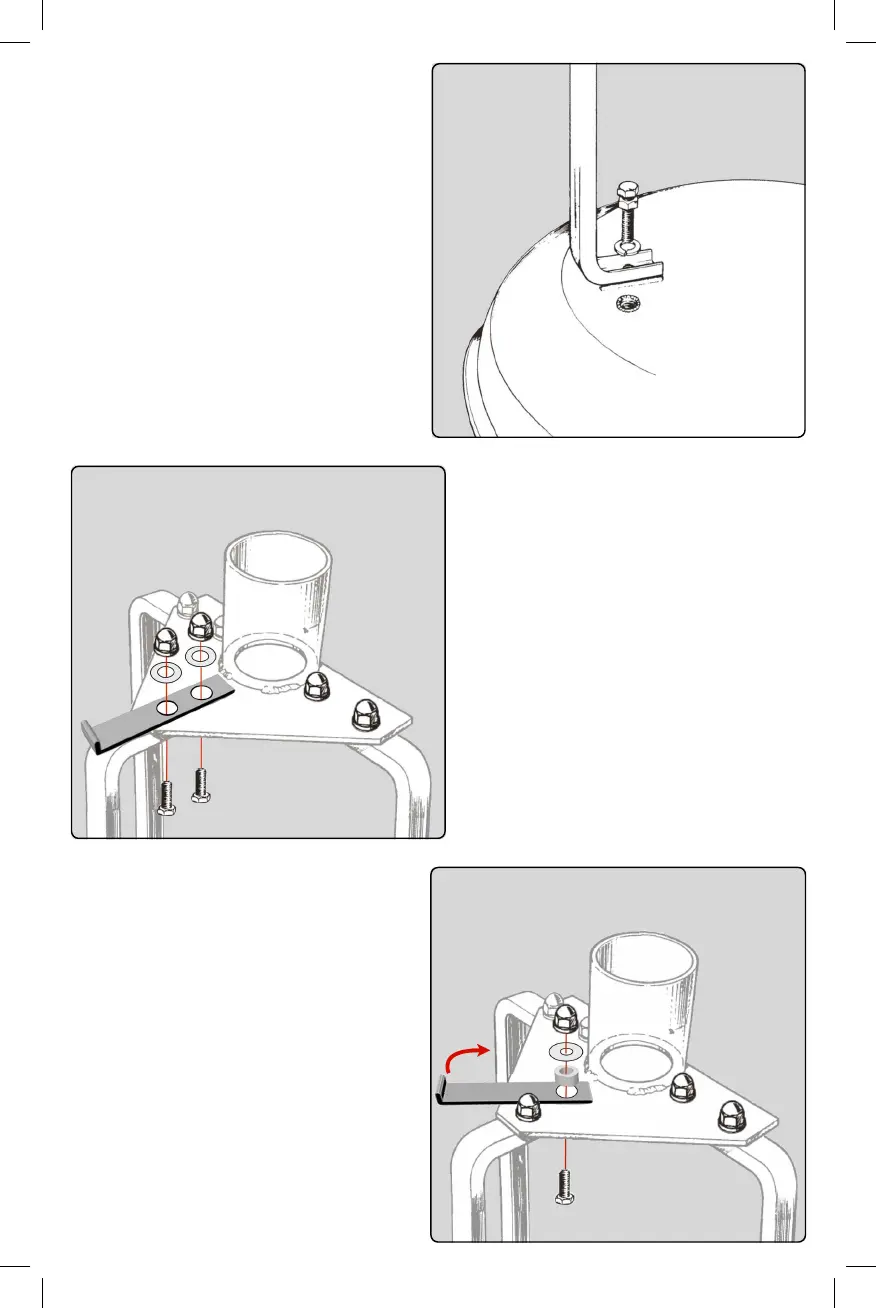

Attach the 3 large C-brackets to
the weighted base using a bolt,
secondary nut and lock washer.
Tighten these bolts firmly.
2. FOR ALLISON MODEL
Attach the socket plate to the top of
the C-brackets. Then connect the
support bracket using the acorn nuts,
bolts and lock washers. For Bella
see figure 3.
3. FOR BELLA MODEL
Attach the top of the C-brackets to
the socket plate. Then connect the
support bracket using the acorn nuts,
bolts and lock washers. The Bella
support bracket uses a nylon bushing
and a flat washer. It has one
attachment point and will swivel out
of the way to allow for the base to
clear.
2.
3.
1.
