10

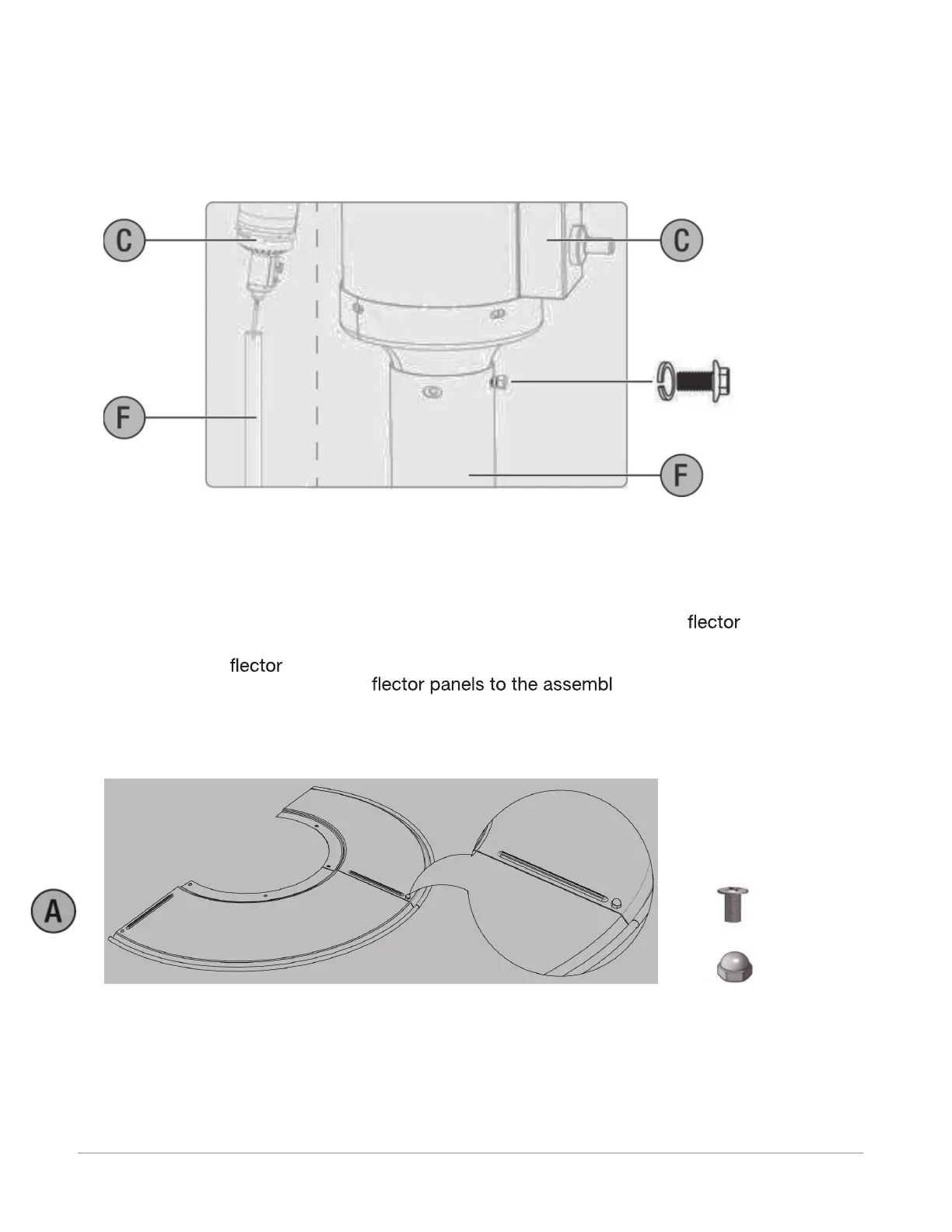

Step 8: Attach head assembly (C) to upper post (F).
Route the gas hose (E) down through the post assembly, then place the head
assembly on the upper post, making sure that the screw holes on the head assembly
align with the holes in the upper post (the control knob should be above decal on post).
Insert the four small bolts and lock washers and tighten securely.
Step 9:
Note: Make sure that you remove the protective plastic covering on the re
pieces before
assembly!
Slide two of the re panels together, then insert one small screw and loosely screw on a
cap nut. Add the third and fourth re y.
Small bolt
with lock
washer (4)
Small screw (4)
Cap nut (4)
Patio Heater_14-0979_V4_ENG.book Page 10 Tuesday, September 2, 2014 10:00 AM
