9

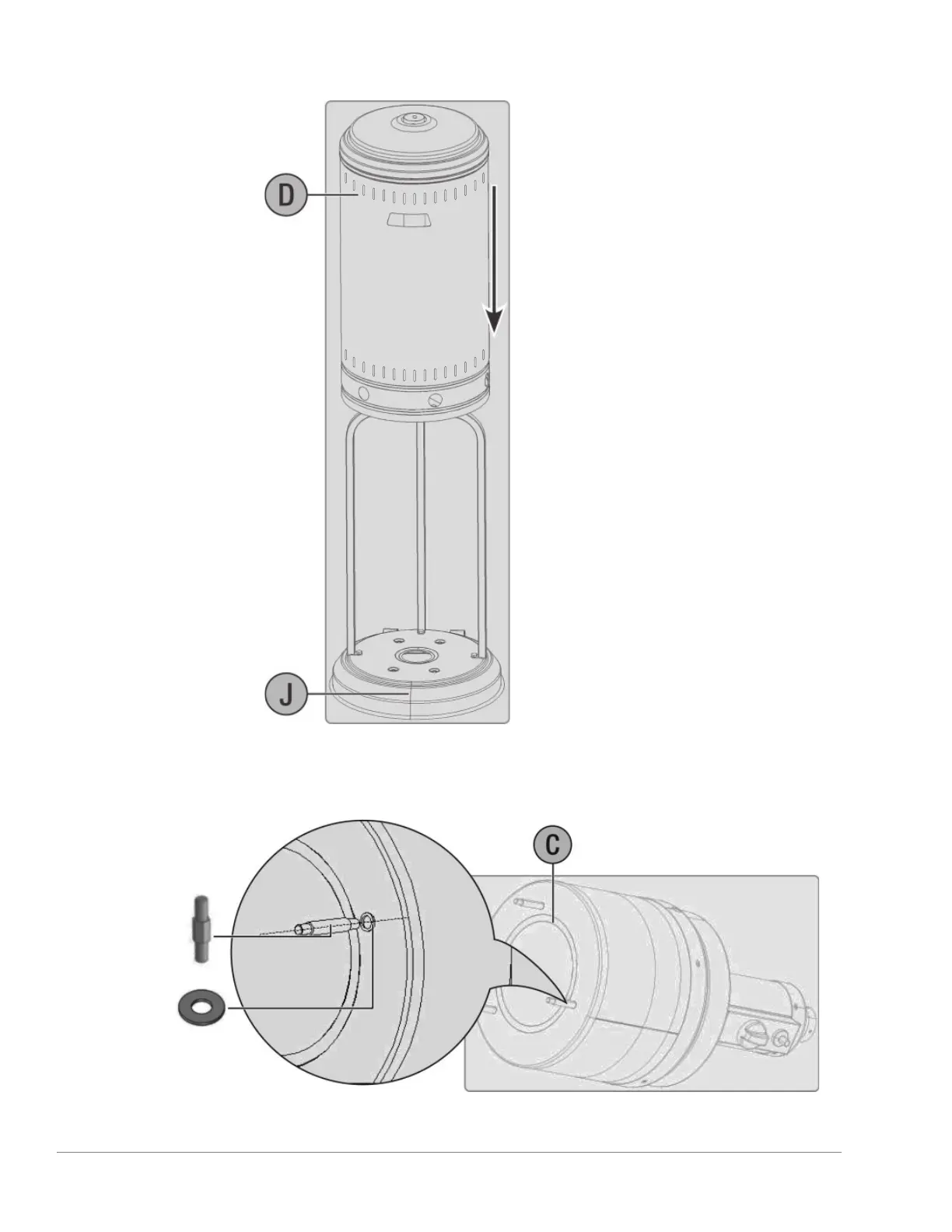

Step 6: Insert the tank housing (D) onto the upper post and lower it until it rests on the base.
Step 7: Insert the reflector studs into the large flat washers, then push them into the holes on
the top of the head assembly (C).
stud (3)
Patio Heater_14-0979_V4_ENG.book Page 9 Tuesday, September 2, 2014 10:00 AM
