Step 3: Attach the upper arm to the back of the monitor using a Phillips screwdriver.
Note: If a stand is attached to the monitor, remove the stand.
Note: You can use the M4 × 10 mm screws or M4 × 10 mm knobs to attach the arm to the
monitor.
Caution: The mounting screw holes on the
back of the monitor may require screws of a
different type or length than the provided
M4 × 10 mm screws or knobs.
• Using screws of that are too big in
diameter will damage the screw holes on
the monitor.
• Using screws that are too small or too
short may cause the monitor to fall off the
arm.
• Using screws that are too long may
damage the interior of the monitor.
Before you attach the monitor to the upper arm,
make sure that the provided screws or knobs fit
the screw holes on the back of the monitor.
If the provided screws or knobs do not fit, refer
to the documentation that came with the
monitor for the correct screw type and size.
Warning: The upper arm is under
tension and will move up rapidly, on its
own, as soon as the attached monitor is
removed. For this reason, remove the upper
arm, lay the monitor face down on a soft
surface, then remove the monitor. Failure to
follow this instruction may result in serious
personal injury or equipment damage.

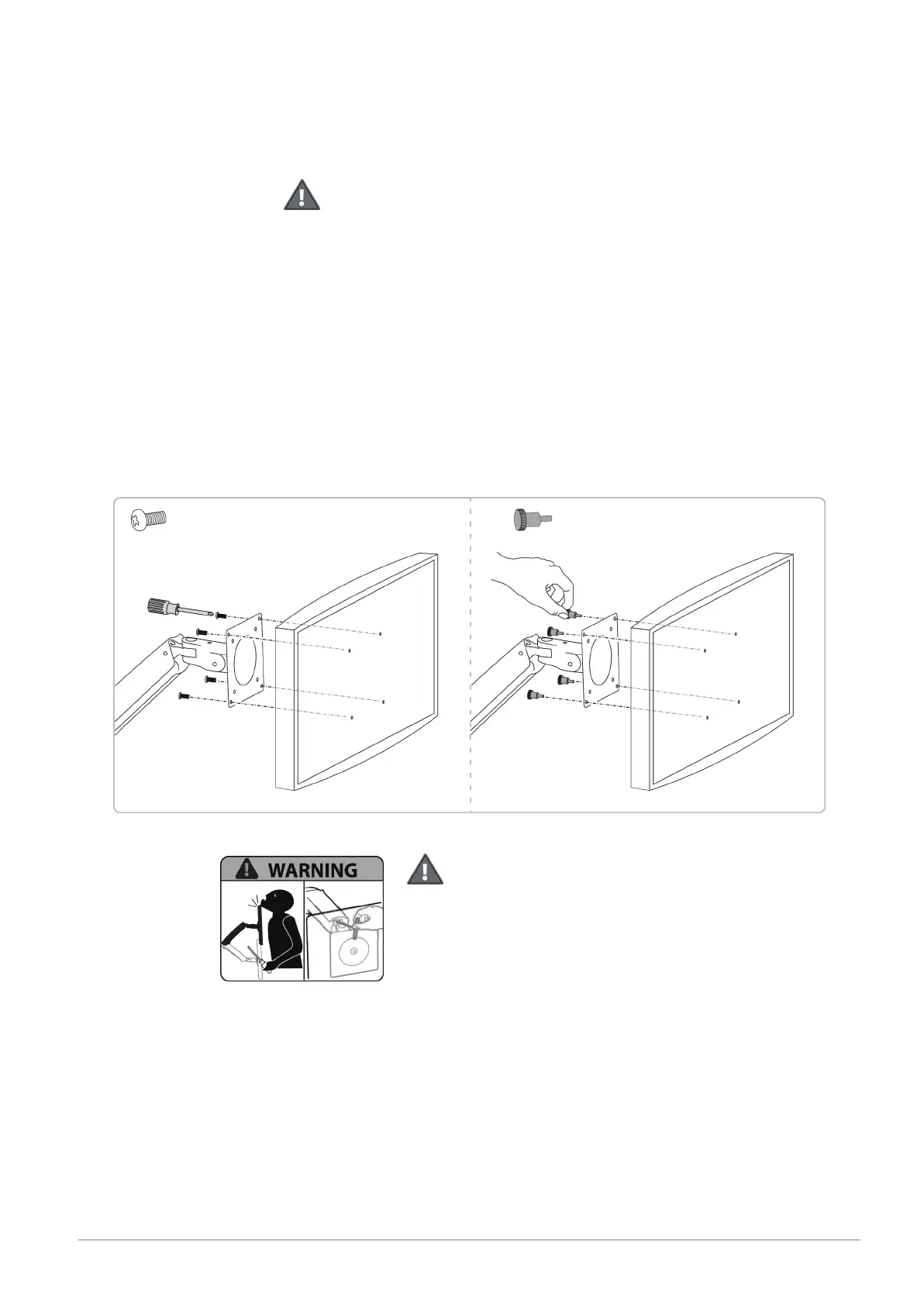

M4 × 10 mm screws M4 × 10 mm knobsOR
