11

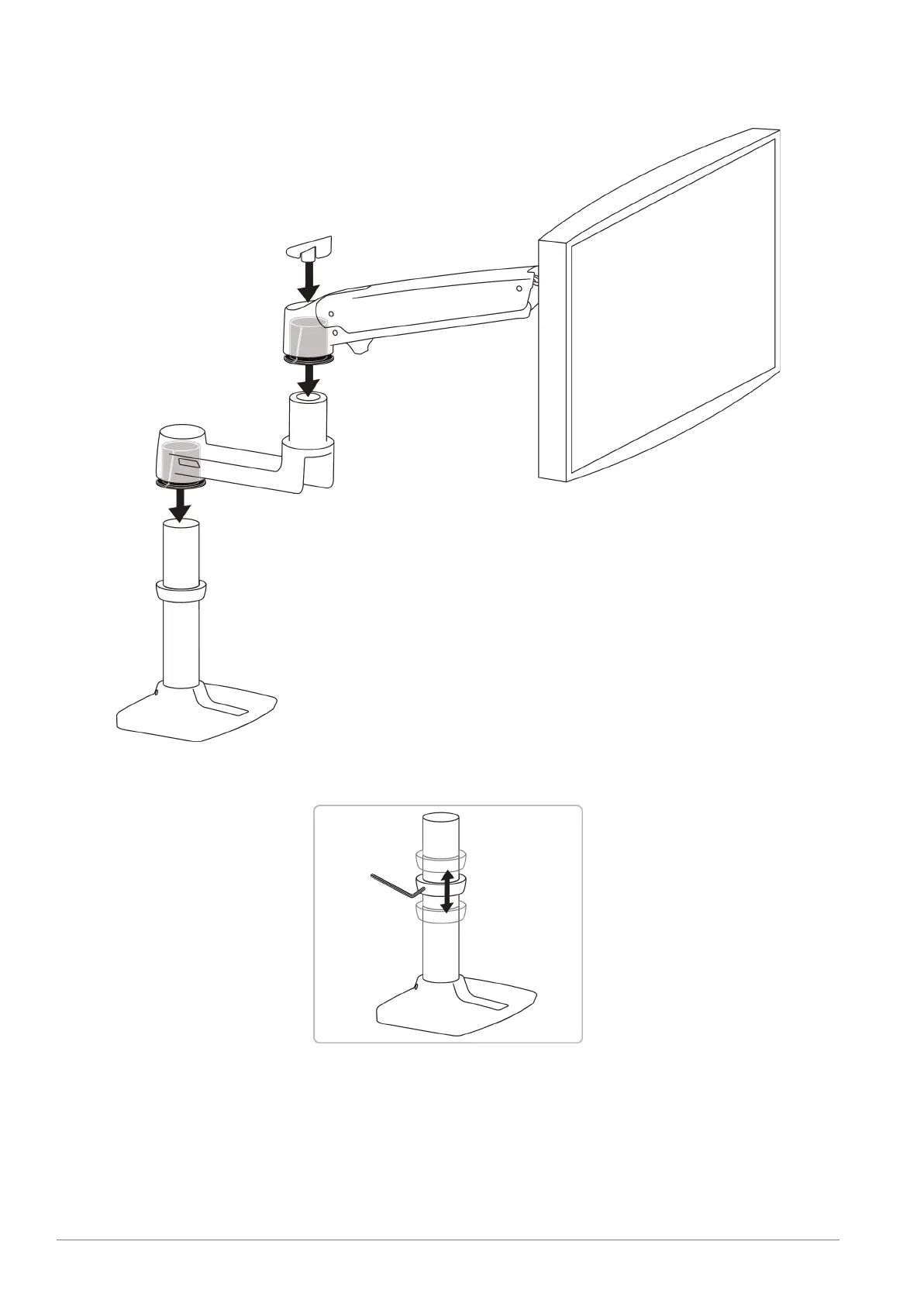

Step 4: Slide the lower arm onto the base. Slide the upper arm over the lower arm, then insert
the bracket cover into the top of the upper arm. The cover should snap into place.
Note: To remove the bracket cover, use a flathead screwdriver to pry off the cover.
Note: If the monitor is too high or too low, remove the upper and lower arms. Loosen the screw
on the base ring with the 2.5 mm wrench, slide the ring up or down, then tighten the screw.
Bracket
cover
To Next Page
