Plate mount

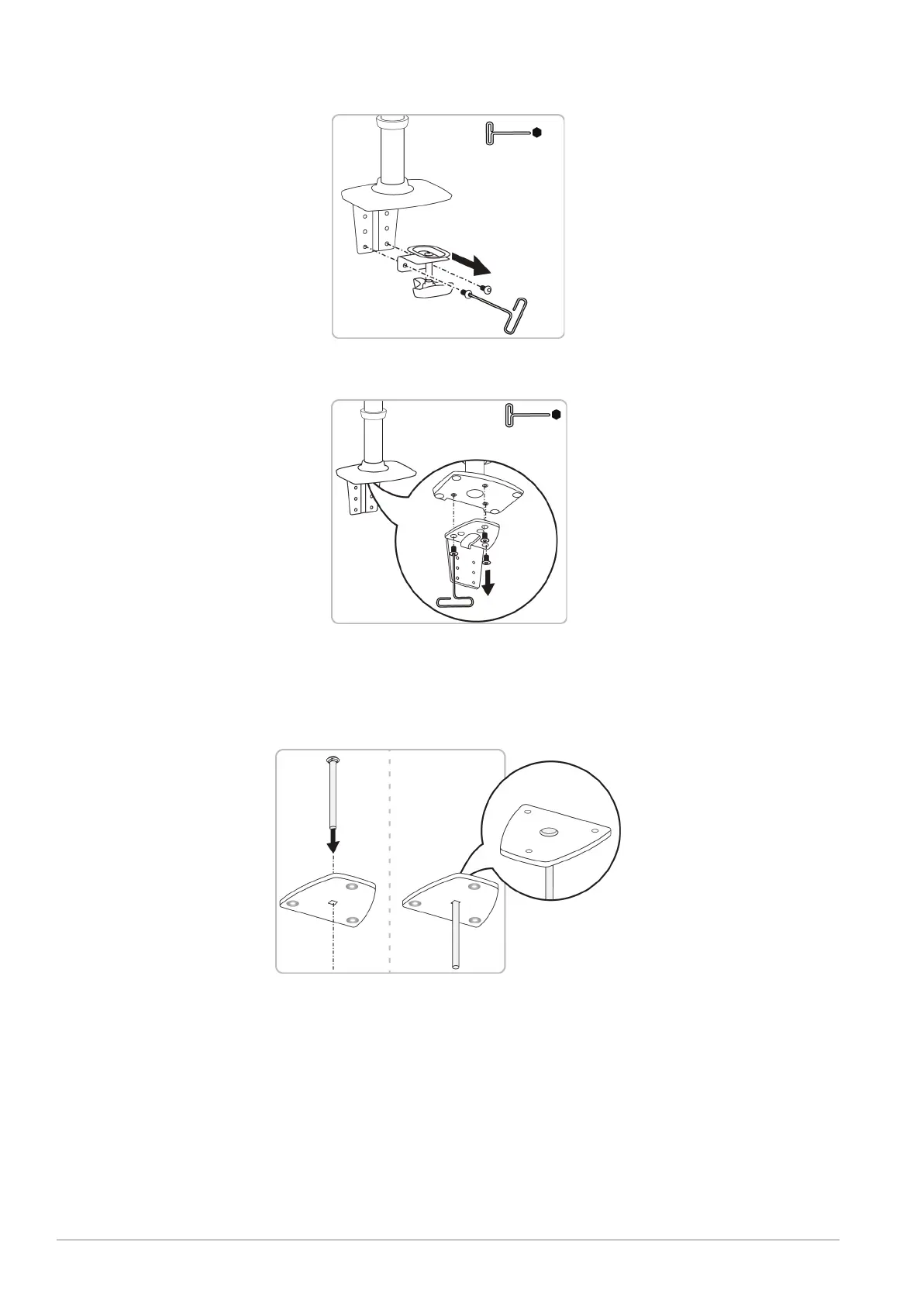

Step A: Remove the mounting clamp assembly from the clamp bracket on the base.
Step B: Remove the clamp bracket from the base. Keep the screws you remove. You will use
them later.
Step C: Make sure that the side of the grommet bracket with recessed screw holes is facing
down. Insert the M8 × 3 in. screw through the square hole in the center of the grommet
bracket.
Note: To keep the 3-inch screw from falling inside the base, temporarily attach the wing nut to
hold it in place.
