Amber
model
5500
Owner’s
Manual Version
07
Programmable
Audio
Measurement
System

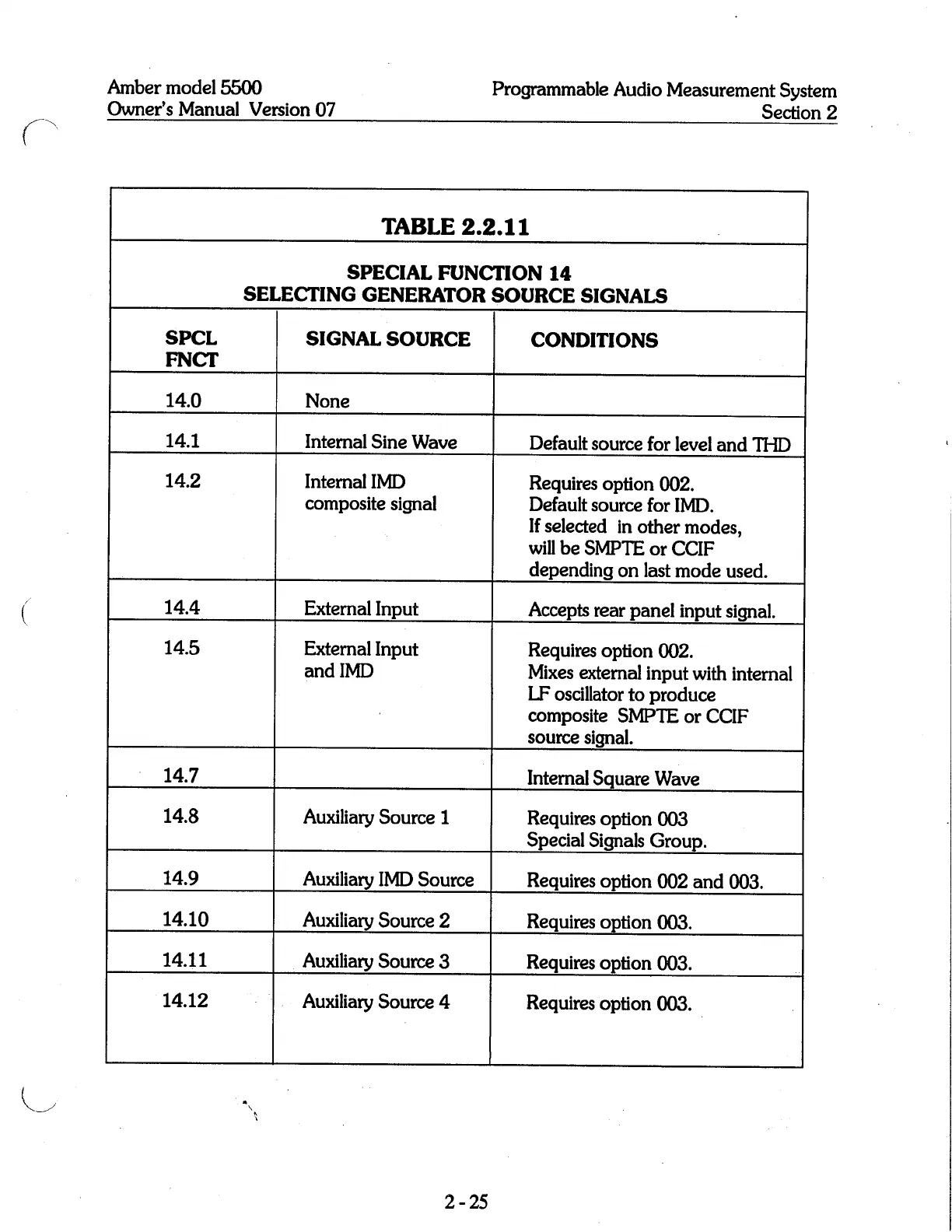

Secfion 2
TABLE
2.2.1 1
SPECIAL
FUNCTION 14
SELECTING
GENERATOR
SOURCE
SIGNALS
SPCL
SIGNAL
SOURCE
CONDITIONS
FNCI‘
14.0
None
14.1
Internal
Sine
Wave
Default
source for
level
and
THD
14.2
Internal
IMD
Requires
option
002.
composite
signal
Default
source
for
IMD.
If
selected in
other
modes,
will
be
SMPTE
or CCIF
depending
on
last mode
used.
14.4
External
Input
Accepts
rear
panel
input
signal.
14.5
External
Input
Requires
option
002.
and
IMD
Mixes
external
input
with
internal
LF
oscillator to
produce
composite
SMPTE or
CCIF
source
signal.
14.7
Internal
Square
Wave
14.8
Auxiliary
Source 1
Requires
option
003
Special
Signals
Group.
14.9
Auxiliary
IMD
Source
Requires
option
002 and
003.
14.10
Auxiliary
Source
2
Requires
option
003.
14.11
Auxiliary
Source
3
Requires
option
003.
14.12
Auxiliary
Source 4
Requires
option
003.
