Programmable
Audio
Measurement
System
Section
2
Amber
model
5500
Owner’s
Manual
Version
07

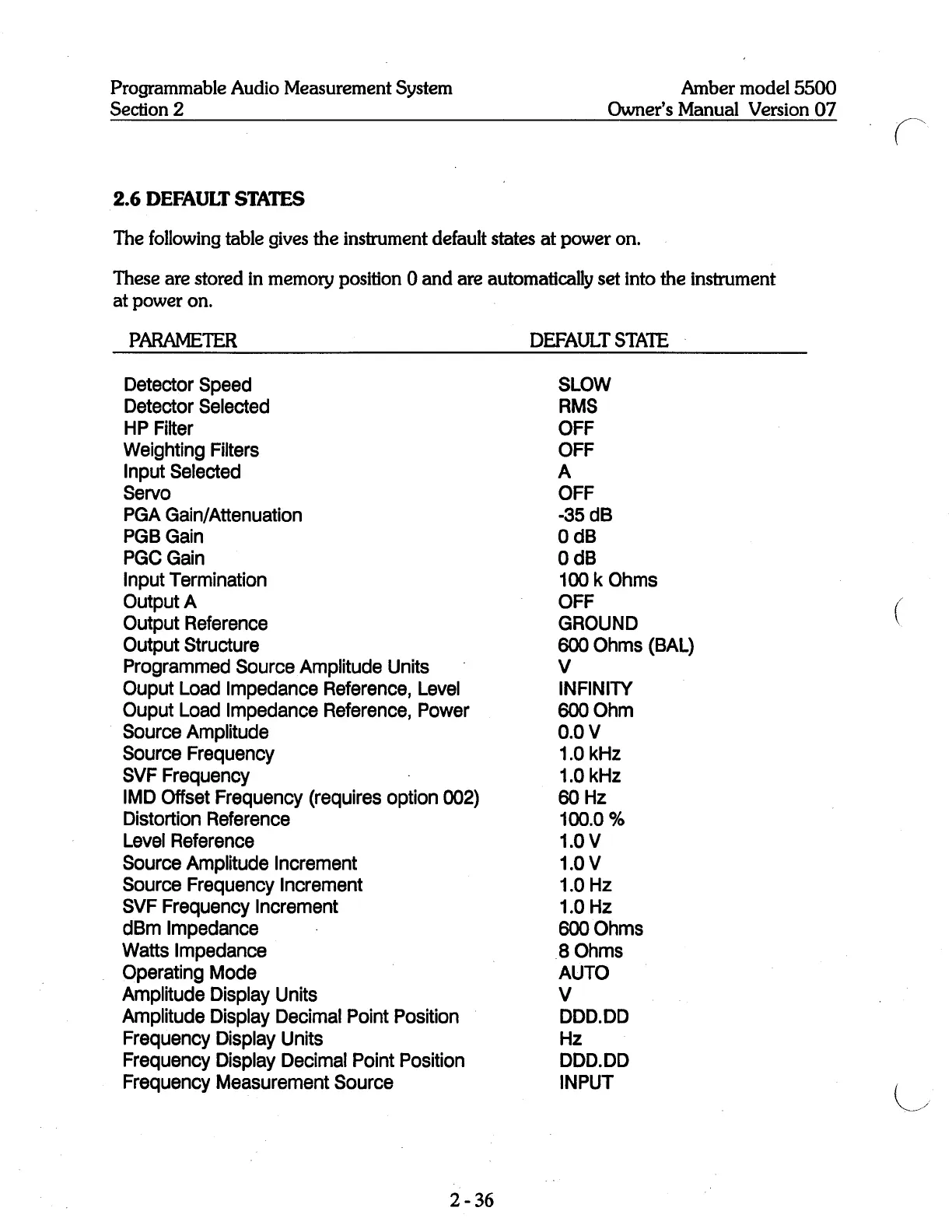

2.6
DEFAULT
STATES
The
following
table
gives
the
instrument
default
states
at
power
on.
These
are
stored
in
memory
position
0
and
are
automatically
set
into
the
instrument
at
power
on.
PARAMETER
DEFAULT
STATE
-
Detector
Speed
SLOW
Detector
Selected
RMS
HP
Filter
OFF
Weighting
Filters
OFF
Input
Selected
A
Servo
OFF
PGA
Gain/Attenuation
-35
dB
PGB
Gain
0
dB
PGC
Gain
0
dB
Input
Termination
100
k
Ohms
Output
A
OFF
Output
Reference
GROUND
Output
Structure
600
Ohms
(BAL)
Programmed
Source
Amplitude
Units
V
Ouput
Load
Impedance
Reference,
Level
INFINITY
Ouput
Load
Impedance
Reference,
Power
600
Ohm
Source
Amplitude
0.0
V
Source
Frequency
1.0
kHz
SVF
Frequency
1.0
kHz
IMD
Offset
Frequency
(requires
option
002)
60
Hz
Distortion
Reference
100.0
%
Level
Reference
1.0
V
Source
Amplitude
Increment
1.0
V
Source
Frequency
Increment
1.0
Hz
SVF
Frequency
Increment
1.0
Hz
dBm
Impedance
600
Ohms
Watts
Impedance
.8
Ohms
Operating
Mode
AUTO
Amplitude
Display
Units
V
Amplitude
Display
Decimal
Point
Position
'
DDD.DD
Frequency
Display
Units
Hz
Frequency
Display
Decimal
Point
Position
DDD.DD
Frequency
Measurement
Source
INPUT
2-36
