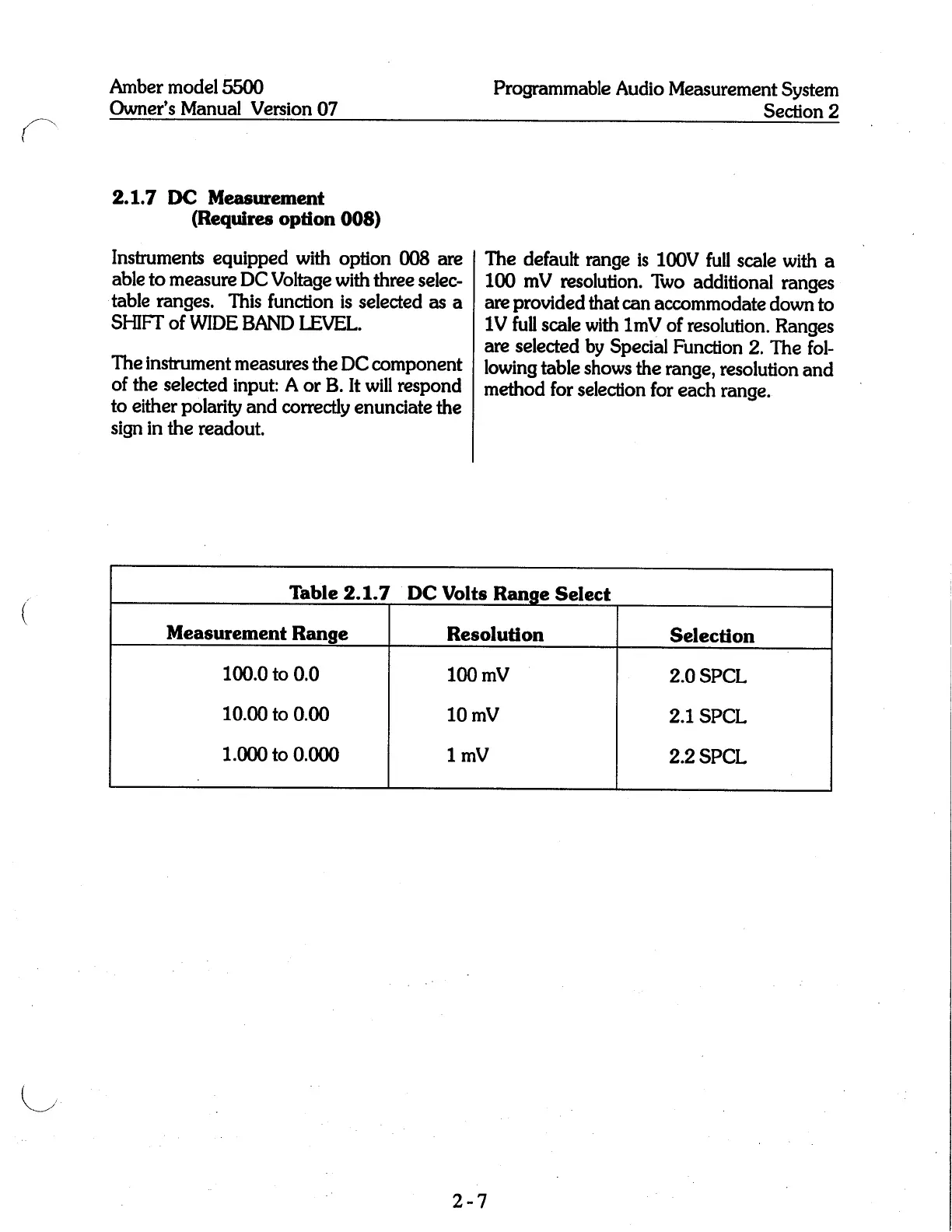

DC
Measurement
(Requires option
008)
Instruments
equipped
with
option
008 are
able to
measure DC
Voltage
with
three
selec-
table
ranges.
This
function is selected
as a
SHIFT
of
WIDE BAND
LEVEL.
The
instrument measures
the DC
component
of
the
selected
input:
A
or B.
It
will
respond
to either
polarity
and
correctly
enunciate
the
sign
in the
readout.
Programmable
Audio
Measurement
System
Section 2
The
default
range
is
100V
full scale
with a
100 mV
resolution.
Two
additional
ranges
are
provided
that
can
accommodate
down to
1V
full
scale with
1mV
of
resolution.
Ranges
are
selected
by Special
Function 2.
The fol-
lowing
table shows the
range,
resolution and
method
for selection
for
each
range.
Table
2.1.7
'
DC Volts
Range
Select
Measurement
Range
Resolution
Selection
100.0
to
0.0
100
mV
2.0
SPCL
10.00
to
0.00
10 mV
2.1
SPCL
1.000
to
0.000 1
mV
2.2
SPCL
