AMC XTad User Manual

12345
8
1456 7
89
12 14
13
10 11
13
23 10 11
67
9
1. POWER SWITCH AND POWER
INDICATOR
2. TUNING DOWN
3. TUNING UP
4. SELECT
5. MODE
6. INFO
7. DAB/DAB+/FM+ DISPLAY
8. IR RECEIVER
9. AM/FM DISPLAY
10. TUNING DOWN
11. TUNING UP
12. MONO
13. MODE
14. AM
FOR DAB/DAB+FM+ MODULE
FOR AM/FM MODULE
(RIGHT
SECTION)
(LEFT SECTION)
FM
3

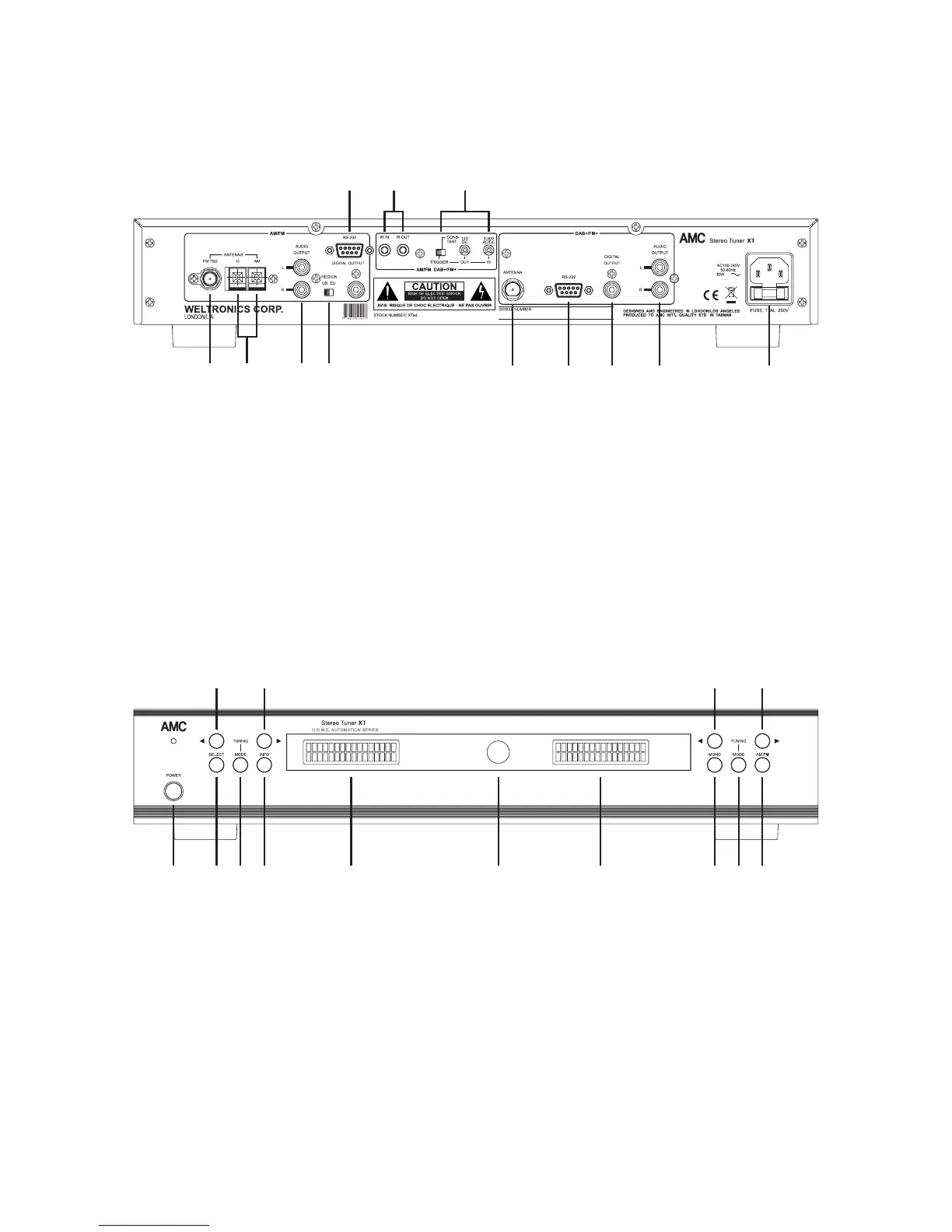

REAR PANEL CONNECTIONS/FRONT PANEL CONTROLS
REAR PANEL
FRONT PANEL
1. RECEPTACLE & FUSE (T1AL 250V)
(RIGHT SECTION)
2. ANTENNA - DAB/DAB+/FM+
3. RS-232 - DAB/DAB+/AM+ MODULE
4. DIGITAL OUTPUT - DAB/DAB+/FM+
5. ANALOG OUTPUTS(L&R) - DAB/DAB+/
FM+
6. IR IN & IR OUT
7. TRIGGER
(LEFT SECTION)
8. ANTENNA - FM
9. ANTENNA - AM
10. AUDIO OUTPUTS (L&R) - AM/FM
11. REGION (US/EU) - AM/FM
12. DIGITAL OUTPUT - AM/FM
13. RS-232 - AM/FM MODULE
FOR DAB/DAB+FM+ MODULE FOR AM/FM MODULE

AMC XTad Specifications

General

Type	FM/AM
FM Tuning Range	87.5 to 108 MHz
Frequency Response	30Hz to 15kHz
Stereo Separation	40 dB (FM)
Power Supply	120V, 60Hz
AM Tuning Range	520 - 1710 kHz
