NOTE: The fiber optic cable, handpiece, and tips are shipped non-sterile.
The Delivery System consists of the following:
• Fiber Optic Assembly
• Handpiece
• Accessories: Adapter (to be used with disposable cannula)
• Picasso Plus and Picasso Lite Plus Handpiece Kit
NOTE: The standard fiber optic cable assembly is a 400 μm fiber.
NOTE: The fiber optic cable, handpiece, and tips are reusable accessories that require cleaning and
sterilization before and after each use. For instructions on cleaning and sterilization of the fiber optic
cable, handpiece, and tips, refer to section “MAINTENANCE”. Fiber optic cable is not autoclavable unless
labeled as “autoclavable”.
CAUTION: ALWAYS CHECK FOR PRESENCE OF THE AIMING BEAM BY SHINING THE TIP ONTO A NON-
REFLECTIVE SURFACE BEFORE FIRING THE LASER. IF THE AIMING BEAM SETTING ON THE DEVICE IS
NOT “OFF” AND YOU DO NOT SEE THE AIMING BEAM, DO NOT USE THE TIP. IT MAY BE BROKEN WHICH
COULD RESULT IN HEATING OF THE METAL CANNULA POTENTIALLY CAUSING AN ACCIDENTAL BURN TO
THE PATIENT.
The Quadra Tip (Picasso+ ONLY)
The Quadra Tip is used in conjunction with the Multi-Tip
Handpiece for teeth whitening only. To use the Quadra Tip,
remove the protective cap from the end of the Quadra Tip
and slide it onto the Multi-Tip Handpiece (MTHP) until you
hear a click.
NOTE: The AMD Lasers logo should face up on the adapter, and the notch on the adapter should align
with the Quadra Tip peg.
The Quadra Tip is used 1–2 mm from the teeth once the bleach is placed on the teeth. Do not contact
the patient with the Quadra Tip. Follow the instructions provided with the Whitening Gel.
CAUTION: THE QUADRA TIP IS NOT AUTOCLAVABLE AND SHOULD BE COLD DISINFECTED ONLY. IT IS
NOT A DISPOSABLE, SINGLE-USE ITEM.
Cleaning Instructions for the Multi-Tip Handpiece and Quadra Tip
The use of CaviWipes™ Disinfectant and Cleaner is recommended for cleaning the Multi-tip Handpiece
and Quadra Tip. Please follow the recommended instructions provided by the manufacturer for use and
disposal.

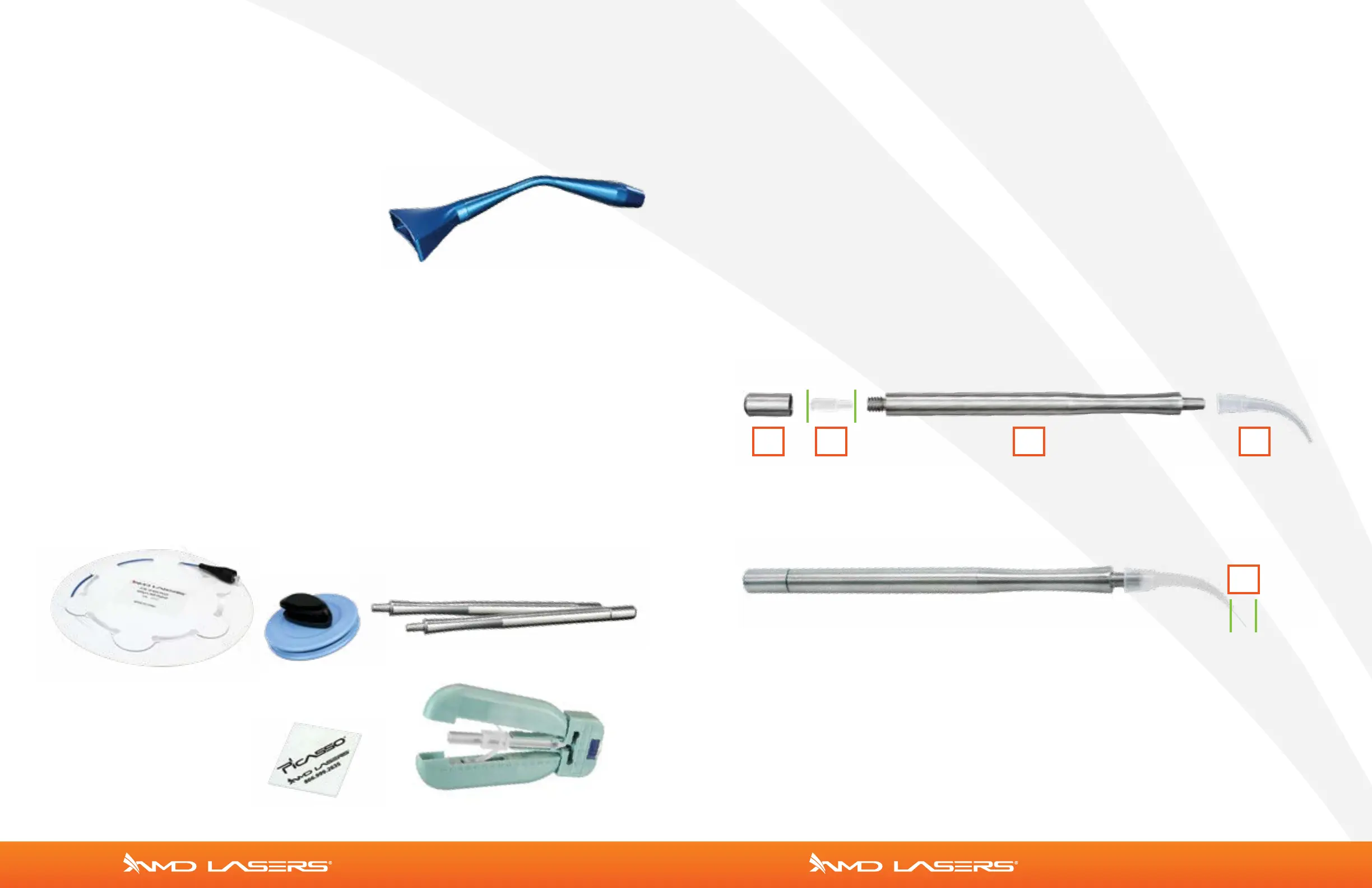

STRIPPABLE FIBER WITH SURGICAL HANDPIECE
FIGURE 7
FIGURE 9
FIGURE 8
Strippable Fiber
− 400 µm
− 3 meters in length
− FC connector
Fiber Spool
Cleaver
Autoclavable Handpieces (Removable)
400µm Stripper
* Customer supplied disposable tip (18 gauge or larger)
1 2 3 4
5
HANDPIECE
BASE
HANDPIECE
TIP
HANDPIECE HANDLEINSERT
CANULA
