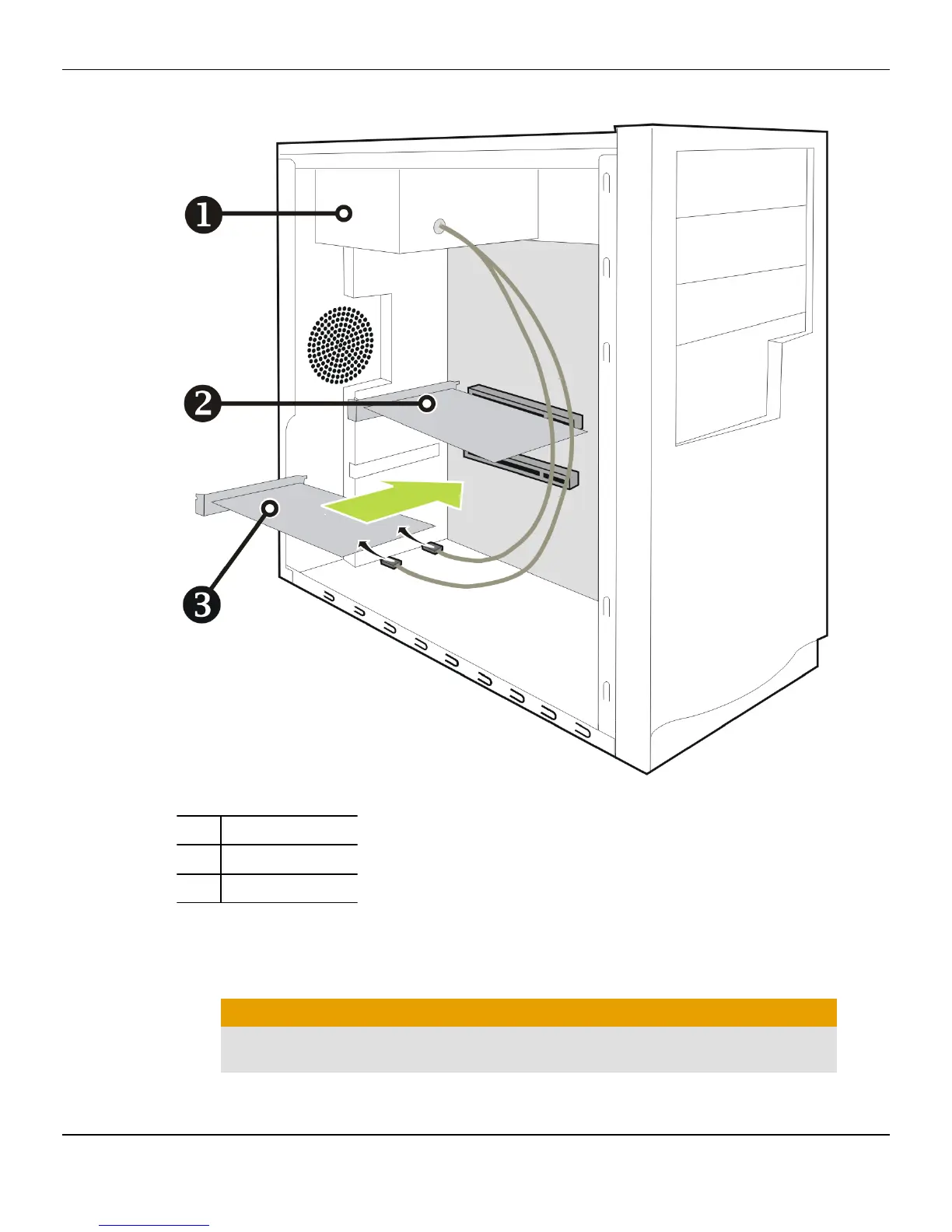

Figure 5–1 Connecting the Power Cables
1 Power supply
2 Existing card
3 New card
8. Remove protection tags from the ends of the AMD CrossFire interconnect and
connect the cards.
Caution:
Always handle the AMD CrossFire bridge interconnect by the connector only.
Do not push or pull on the flexible cable.
AMD CrossFireX Technology 17
