Chapter 4
Display Configuration
This section describes how to configure displays and lists available display
connections for your graphics card.
4.1 AMD Radeon™ HD 7750/7770 Connections
The following figures show the display connections that are available on your AMD
Radeon™ HD 7750/7770 graphics card.
Note: The baseplate may not appear exactly as depicted.

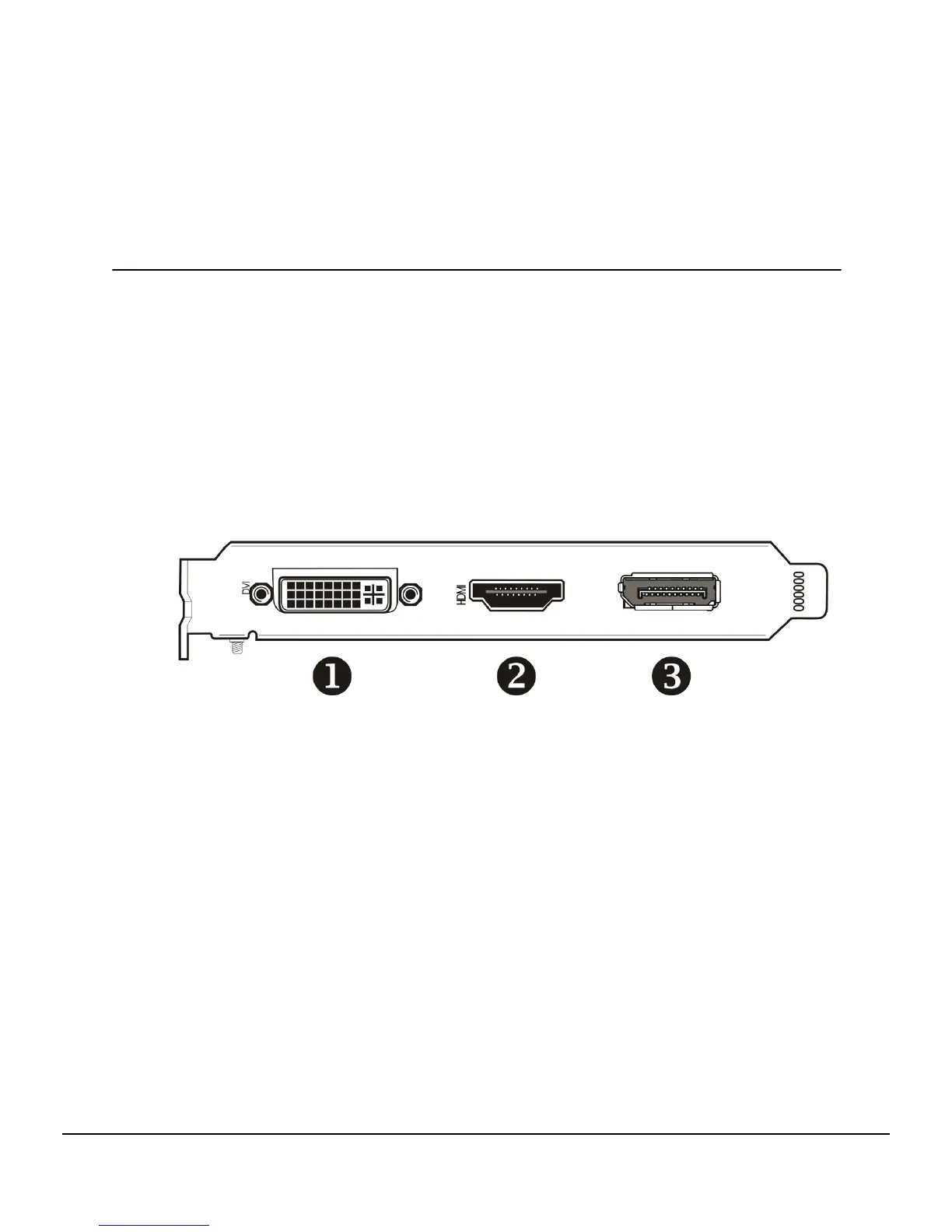

Figure 4–1 AMD Radeon™ HD 7750 Display Connections
© 2012 Advanced Micro Devices, Inc. AMD Radeon™ HD 7750/7770 Graphics
