INSTRUCTIONAL MANUAL
17mm
COMPONENTS
58:1 Assembly
Handle

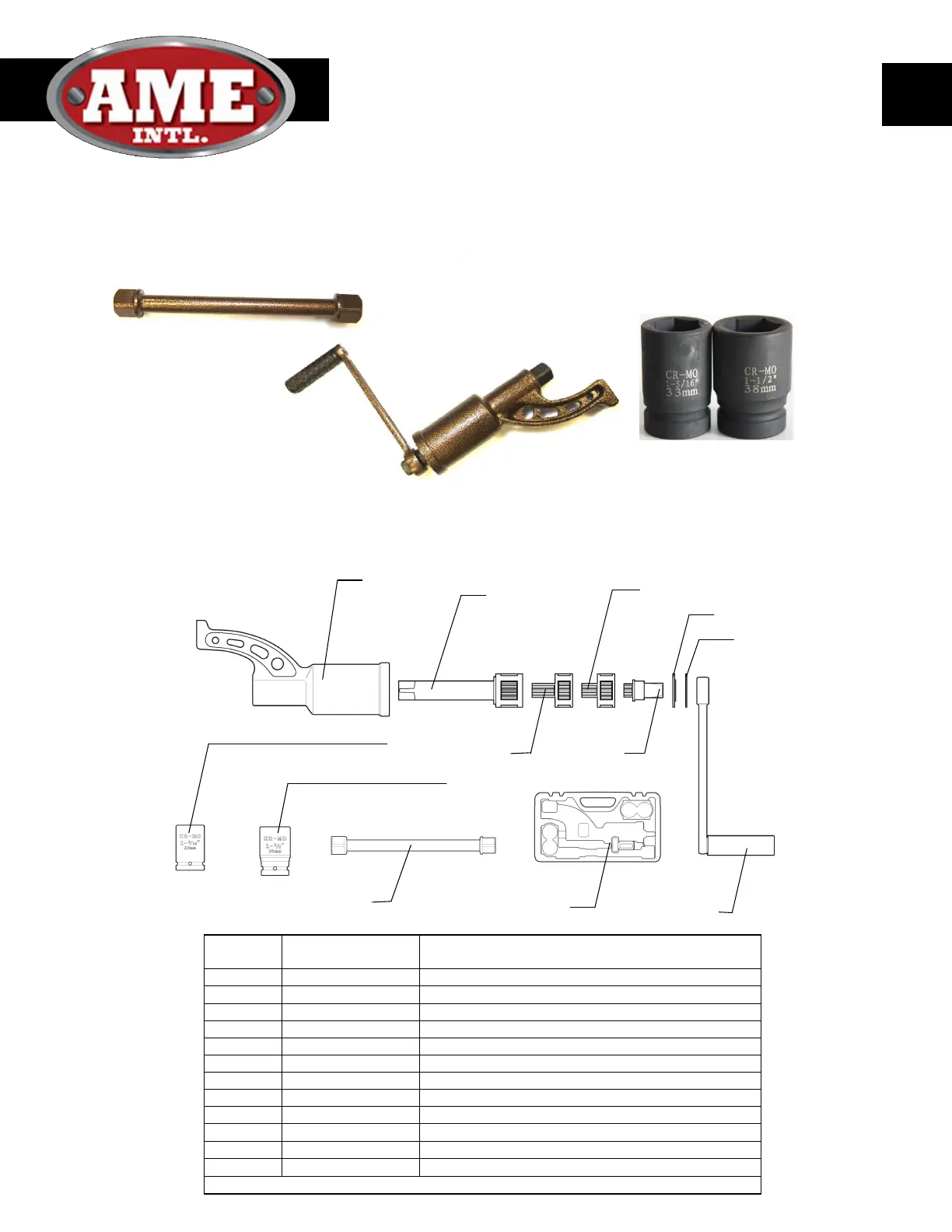

PARTS BREAKDOWN
Sockets
1-5/16” (33mm)
& 1-1/2” (38MM)
1:1 Connection Rod
Item No. Part No. Description
* Replaceable Parts Only
1
2
4
5
11
12
3
9. Socket Replacement 33mm 1 5/16"
10. ocket Replacement 38mm 1 1/2"
6
7
8
* 8 67300-004 Handle
* 9 67300-033 Socket Replacement, Nut Buddy, 33mm 1 5/16"
* 10 67300-038 Socket Replacement, Nut Buddy, 38mm 1 1/2"
1 67300-001 Cylinder Body
2 67300-002 Output Assembly
3 67300-003 Third Stage Input Shaft
4 67300-008 Second Stage Input Shaft
5 67300-009 Input Shaft
6 67300-006 Baffle
7 67300-007 Exterior Clip
11 67300-011 Handle Extension
* 12 67300-005 Nut Buddy Case
