C103A
O
Jil
Osvi
IND.
J
GHT
GROUND
C102A
CONNECT L, N
& GROUND TO
ROOM UGHT
\ /
T-STAT
15
AMP
TIMER
CONNECT EACH WIRE (MINIMUM 14 AWG)
TO APPROPRIATE CONFACTOR TERMINAL
BLOCK MARKED R, N, B AND GROUND.
CONNECT EACH WIRE (MINIMUM 14 AWG)
TO APPROPRIATE CONTACTOR TERMINAL
BLOCK MARKED R, N, B
AND
GROUND.
CONNECT EACH WIRE (MINIMUM 14 AWG)
TO APPROPRIATE CONTACTOR TERMINAL
BLOCK MARKED R, N, B AND GROUND.
CONNECT L., N
& GROUND TO
ROOM UGHT
CONNECT EACH
WIRE (MINIMUM 14 AWG)
TO APPROPRIATE •
■
INITACTOR TERMINAL
BLOCK MARKED R, N, B AND GROUND.
C104A
GROUND
0
0 IND.
UGHT
KEY
FACTORY WIRING
WIRING IN
THE FIELD
SCREW TERMINAL
0
WIRE CONNECTOR
EXPOSE CAPILLARY
BULB INSIDE SAUNA
ROOM.
SEE SECTION
5.
NOTE
TE).4
)
CONTROL CIO4A
AND C105A MAY BE
USED ONLY WHERE
AN
ATTENDANT IS PRESENT.
T-STAT
P
R
AMEREC

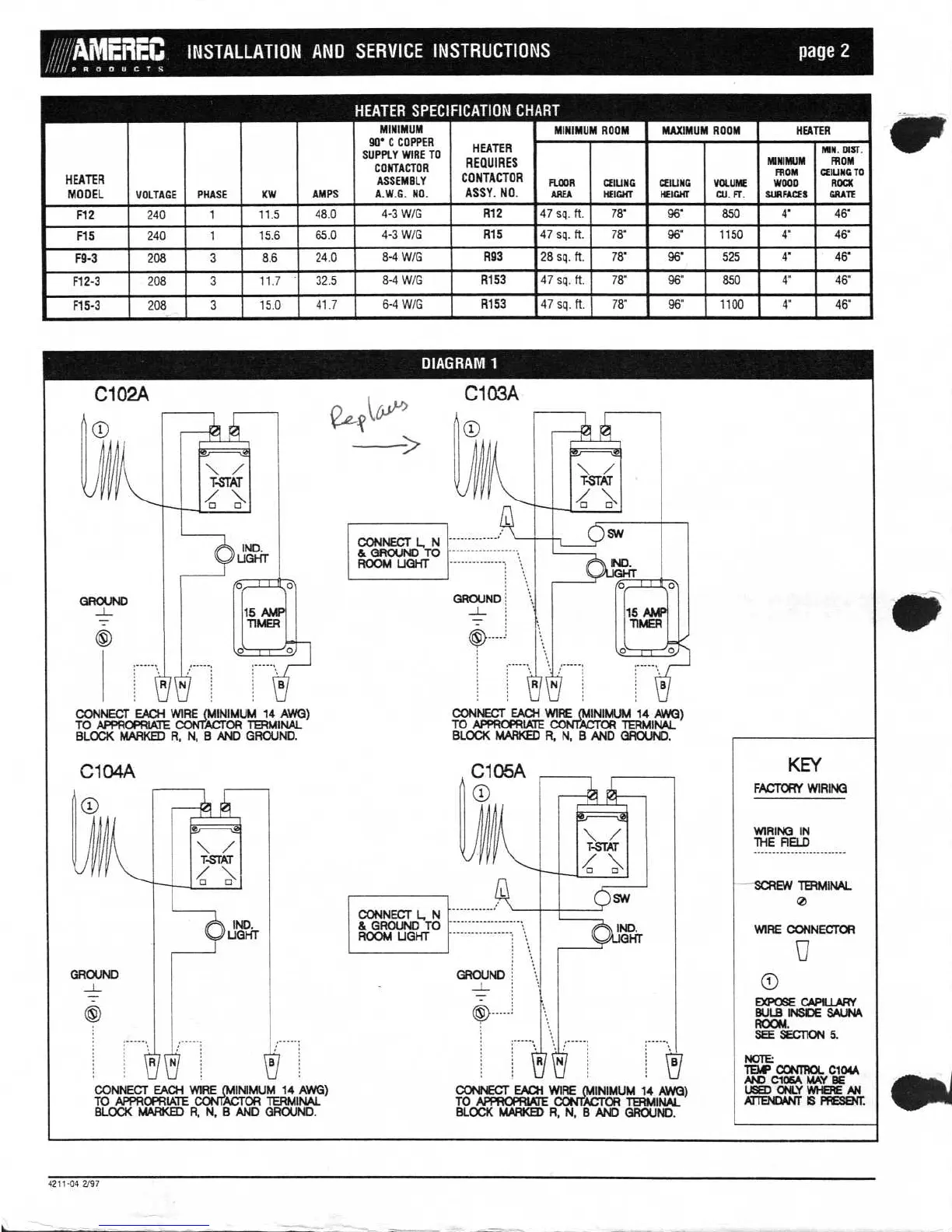

INSTALLATION AND SERVICE INSTRUCTIONS
page
2
HEATER SPECIFICATION CHART
HEATER
MODEL
VOLTAGE
PHASE
KW
AMPS
MINIMUM
90* C COPPER
SUPPLY WIRE TO
CONTACTOR
ASSEMBLY
A.W.G. NO.
HEATER
REQUIRES
CONTACTOR
ASSY. NO.
MINIMUM ROOM
MAXIMUM ROOM
HEATER
FLOOR
AREA
CEILING
HEIGHT
CEILING
HEIGHT
VOLUME
CU. FT.
MINIMUM
FROM
woo
SURFACES
MIN.
DIST.
FROM
awn To
Roa
GRATE
F12
240
1
11.5
48.0
4-3 W/G
R12
47 sq. ft.
78'
96'
850
4'
46'
F15
240
1
15.6
65.0
4-3 W/G
R15
47 sq. ft.
78"
96"
1150
4"
46'
F9-3
208
3
8.6
24.0
8-4 W/G
R93
28 sq. ft.
78'
96'
525
4'
46'
F12-3
208
3
11.7
•
32.5
8-4 W/G
R153
47 sq. ft.
78"
96"
850
4"
46"
F15-3
208
3
15.0
41.7
6-4 W/G
R153
47 sq. ft.
78"
96"
1100
4"
46"
DIAGRAM 1
4211-04 2
1
97
