Quad Processors
7
CAUTION: (Premium units only) Do NOT use a cable that cannot be modified to
disable pins 6 and 7 of the remote connector, or you can cause
serious damage to the serial port of your computer or terminal.
Contact a qualified installer or technician if you cannot purchase a
connector that can be modified.

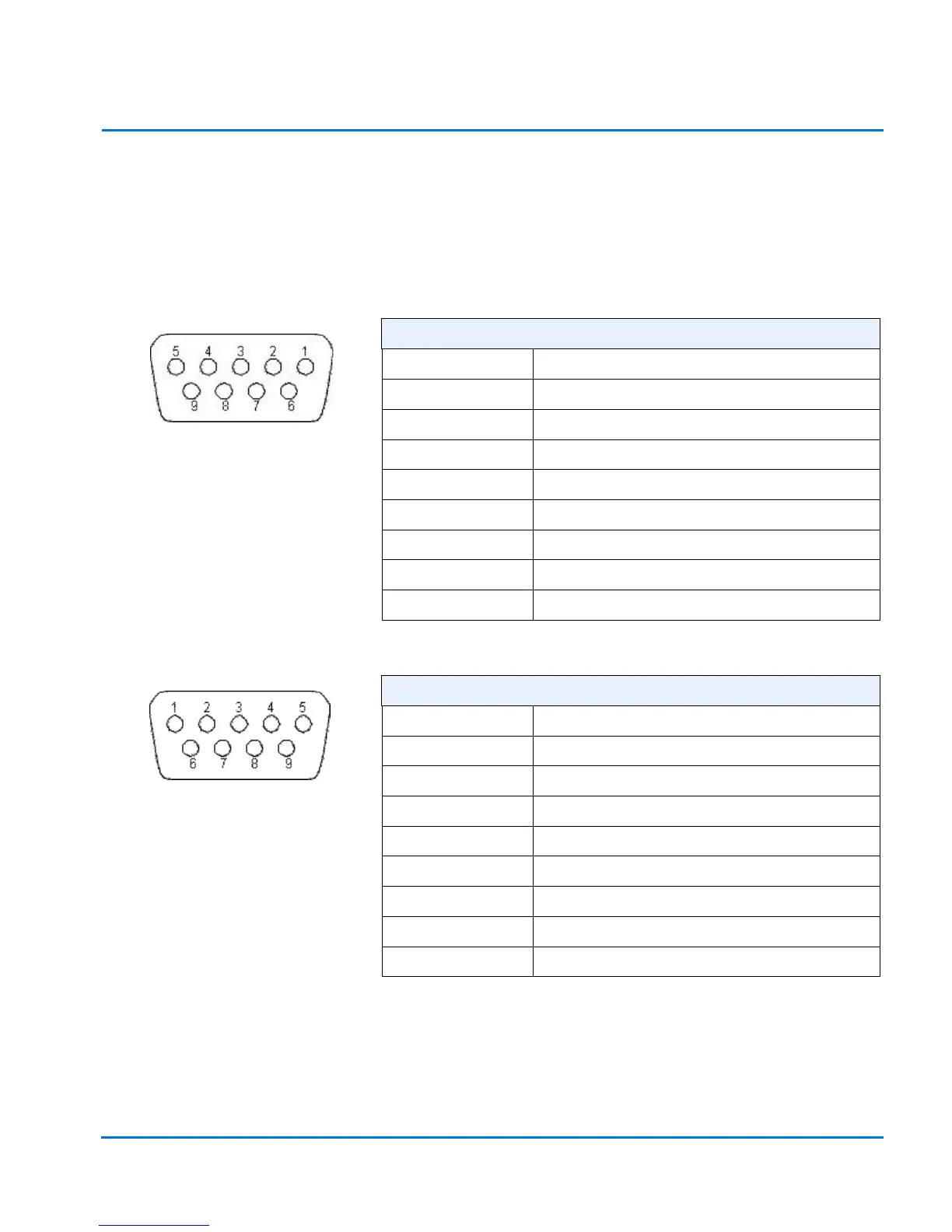

DB9-P Remote Connector
REMOTE CONNECTOR PIN ASSIGNMENTS
1Ground
2 Receive
3Transmit
4 No contact
5 No contact
6 Reserved
7 Reserved
8Ground
9Ground
DB9-S Alarm Connector
ALARM CONNECTOR PIN ASSIGNMENTS
1 Camera 1
2 Camera 2
3 Camera 3
4 Camera 4
5Alarm Reset
6Ground
7 Normally Open (NO)
8 Common
9 Normally Closed (NC)
