Installation and Operation
4

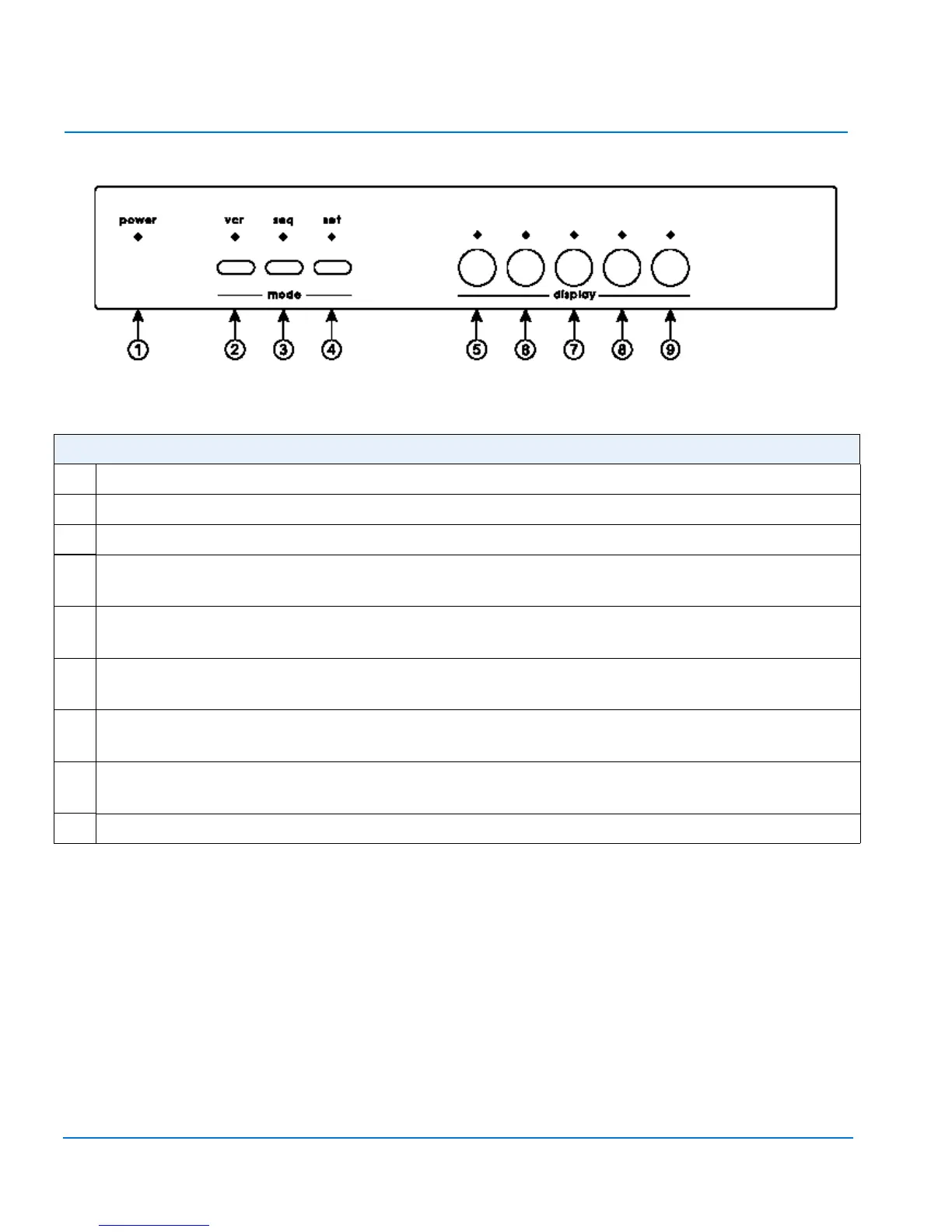

STANDARD QUAD PROCESSOR FRONT PANEL CONTROLS
1power — Green LED indicates the unit is on.
2 vcr/PB+ — Places unit in playback mode.
3 seq — Begins or ends sequential display of full screen images at programmed dwell rate.
4 set — Pressing set and display 9 button simultaneously begins or ends menu setup.
Pressing display 7 simultaneously with set restores factory default settings.
5display 5 — Displays camera 1 full screen in live mode. Selects alphanumeric character in
menu setup.
6display 6 — Displays camera 2 full screen in live mode. Selects alphanumeric character in
menu setup.
7 display 7 — Displays camera 3 full screen in live mode. Moves cursor forward in menu
setup.
8 display 8 — Displays camera 4 full screen in live mode. Moves cursor backwards in
menu setup.
9 display 9 — Displays all four images in live mode.
