Quad Processors
3

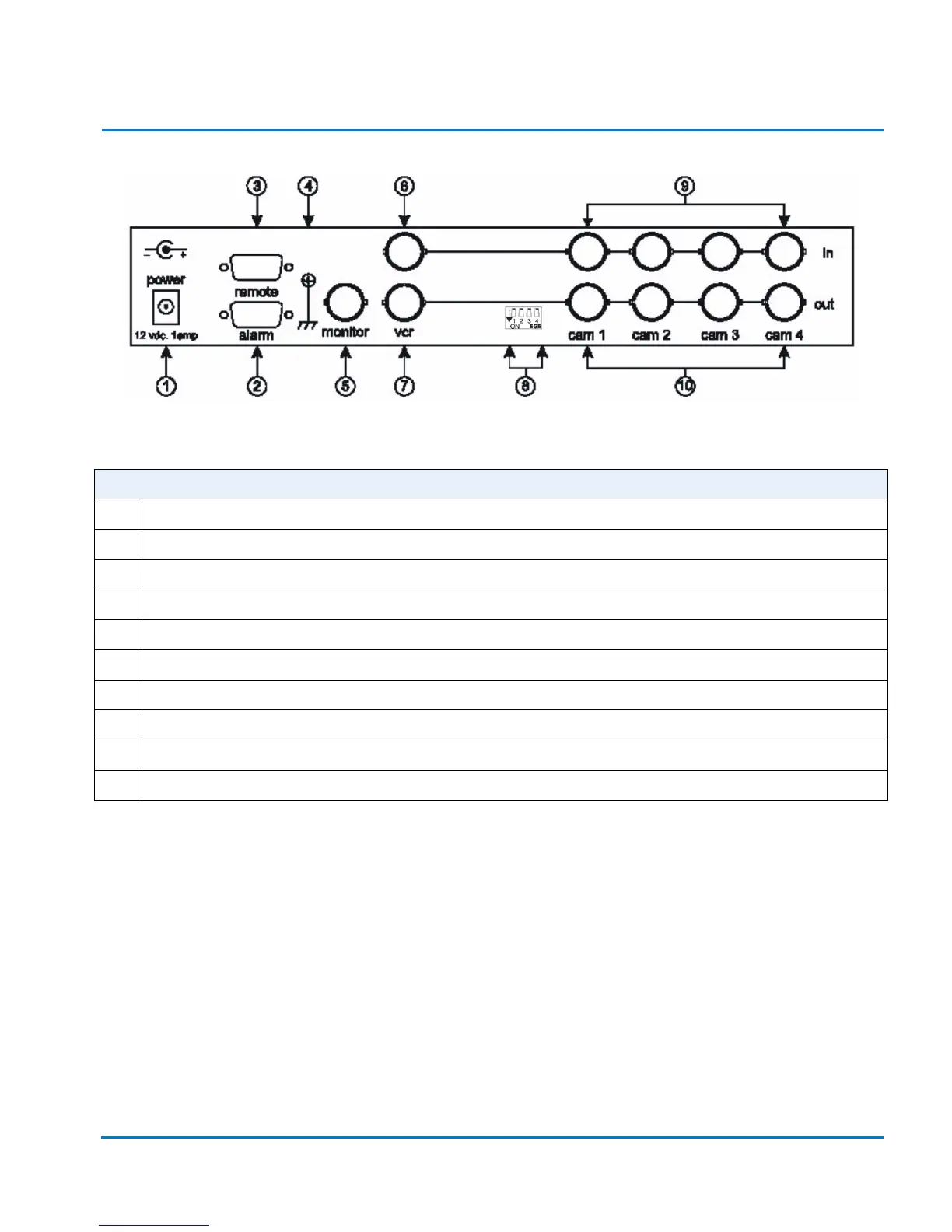

PREMIUM QUAD PROCESSOR REAR PANEL CONNECTORS
1power — Power input connector. Only use 12 VDC center-positive power supply.
2alarm — DB9-P connector. See Alarm Connector Pin Assignments for details.
3 remote — DB9-S connector. See Remote Connector Pin Assignments for details.
4 ground — Chassis ground point with Phillips screw connector.
5 monitor — BNC connector. Delivers display output to a monitor terminated in 75 ohms.
6 vcr in — BNC connector. Accepts video signal from an attached VCR for playback.
7 vcr out — BNC connector. Delivers video signal in quad format to an attached VCR.
8 camera termination — Set camera termination ON (75Ω) or OFF (HiZ)
9 cam 1-4 in — BNC connectors. Accept video input. Auto-terminated in 75 ohms
10 cam 1-4 out — BNC connectors. Deliver video output. Auto-terminated in 75 ohms.
