American Dynamics 102

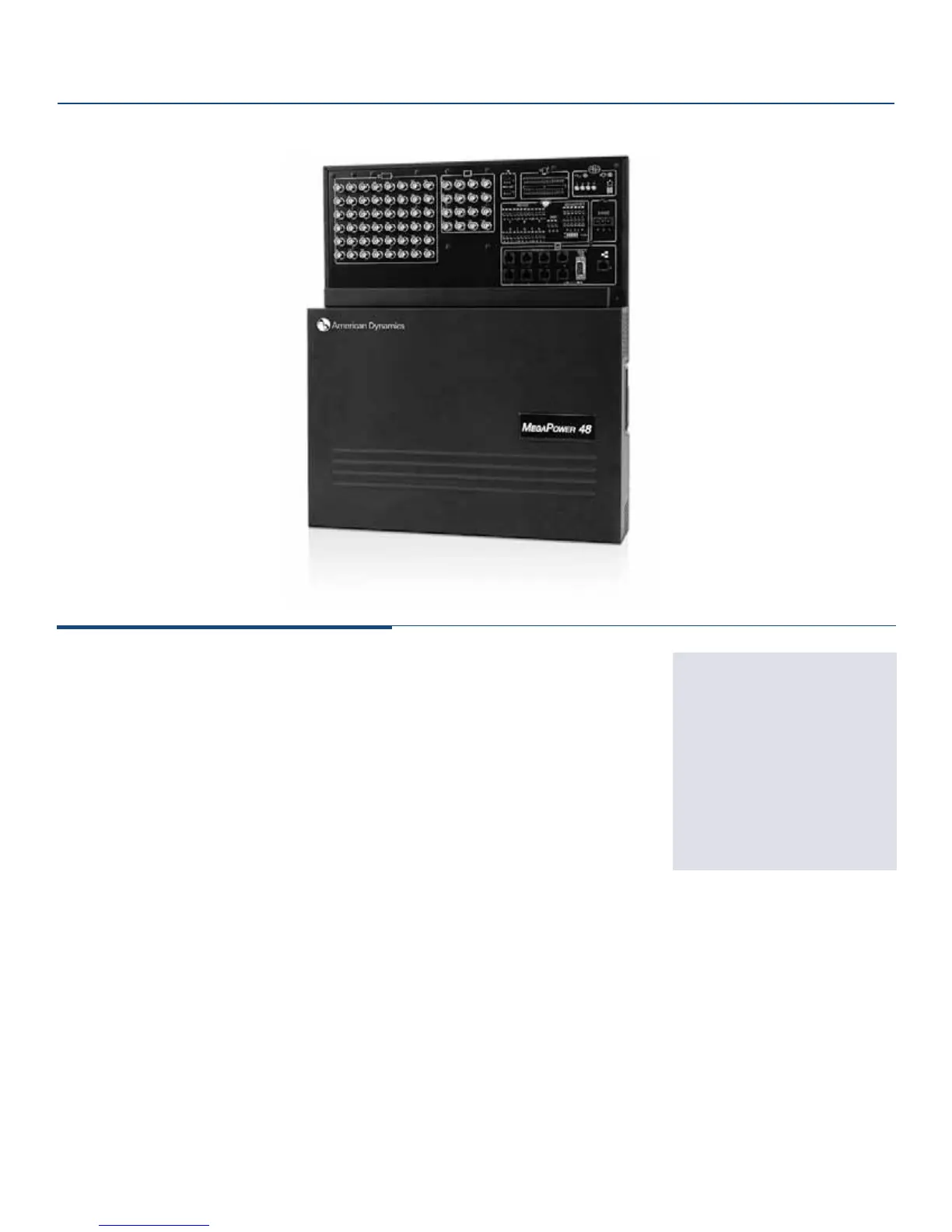

MegaPower 48 Plus:
t 3 flexible expansion modes using a
primary/secondary configuration of up
to 7 systems and 288 cameras
t Ethernet Cat 5 IP connection for multi-
matrix communications and system
setup
t EASY 48 configuration and monitoring
software for Windows based systems
t Dome ping test and status display
t Improved legacy RS-422 dome
support, including simplex RS-422
t SensorNet/RS-232 command for
DirectSet dome control menu with
ControlCenter 200 and 300 series
keyboards
t Modular microprocessor-based, high-
density matrix
t 48 video inputs by 16 video outputs, 8
video outputs with text overlay
t Supports both NTSC and PAL video
standards
t Slim, vertical wall-mount design;
optional rack mount kit available
t Tool-free removability of main
electronics unit (MEU) keeps system
wiring intact
t Optional Unshielded Twisted Pair (UTP)
adapter module allows installation with
simple UTP cable for video
t Full embedded system menus for easy
system setup
t Removable flash memory module for
data backup without a PC
t User-defined macros
t Supports wireless text messaging on
alarm for pagers and cellular phones
t 4096 preset titles, 250 alarm titles
t Dedicated alarm programming tables
that differentiate between alarm
sources
t Eight flexible RS-232 inputs,
expandable to 32 (per system)
t 64 system tours and 64 salvos
t Dimensions:
508 x 438 x 89 mm
(20 x 17.3 x 3.5 in)
t Weight:
Main Electronics Unit: 2.72 kg (6 lbs)
Wall Bracket: 1.54 kg (3.4 lbs)
Patch Panel Assembly: 1.72 kg (3.8 lbs)
MODEL NUMBERS
ADMP48-E
Accessory
VR48KIT
(Rack mount kit for MegaPower 48)
VRCMKIT
(Matrix cable management kit, rack or
wall mountable, includes 3 brackets)
Matrix Switchers
