American Dynamics MegaPower LT User Manual

American Dynamics 103
Model Number Guide
BRAND FAMILY SYSTEM INPUTS REMOTE INPUTS OUTPUTS FORMATS
AD
American
Dynamics
MPR
MegaPower
V
{blank} = standard system
V = factory install video
loss detection
xxxx
# of inputs,
increments of
16, up to 3200
(i.e. 16, 32...
3200)
--
– = standard BNC inputs
on VIM Back Panels
S = all VIM4 & Remote
Panels (30 inch
cables)
L = all VIM4 & Remote
Panels (96 inch
cables)
yyy
# of outputs,
increments of
4, up to 256
(i.e. 4, 8...256)
X
N = 120 VAC (+ or
- 10%), 50-60
Hz, UL & CSA
P = 100-240 VAC,
50-60 Hz, CE
Scalable and Flexible
for a Future-Proof
System
The MegaPower 3200 expands
upon the time proven MegaPower
1024 matrix switcher, providing
up to 3200 video inputs and 256
outputs.

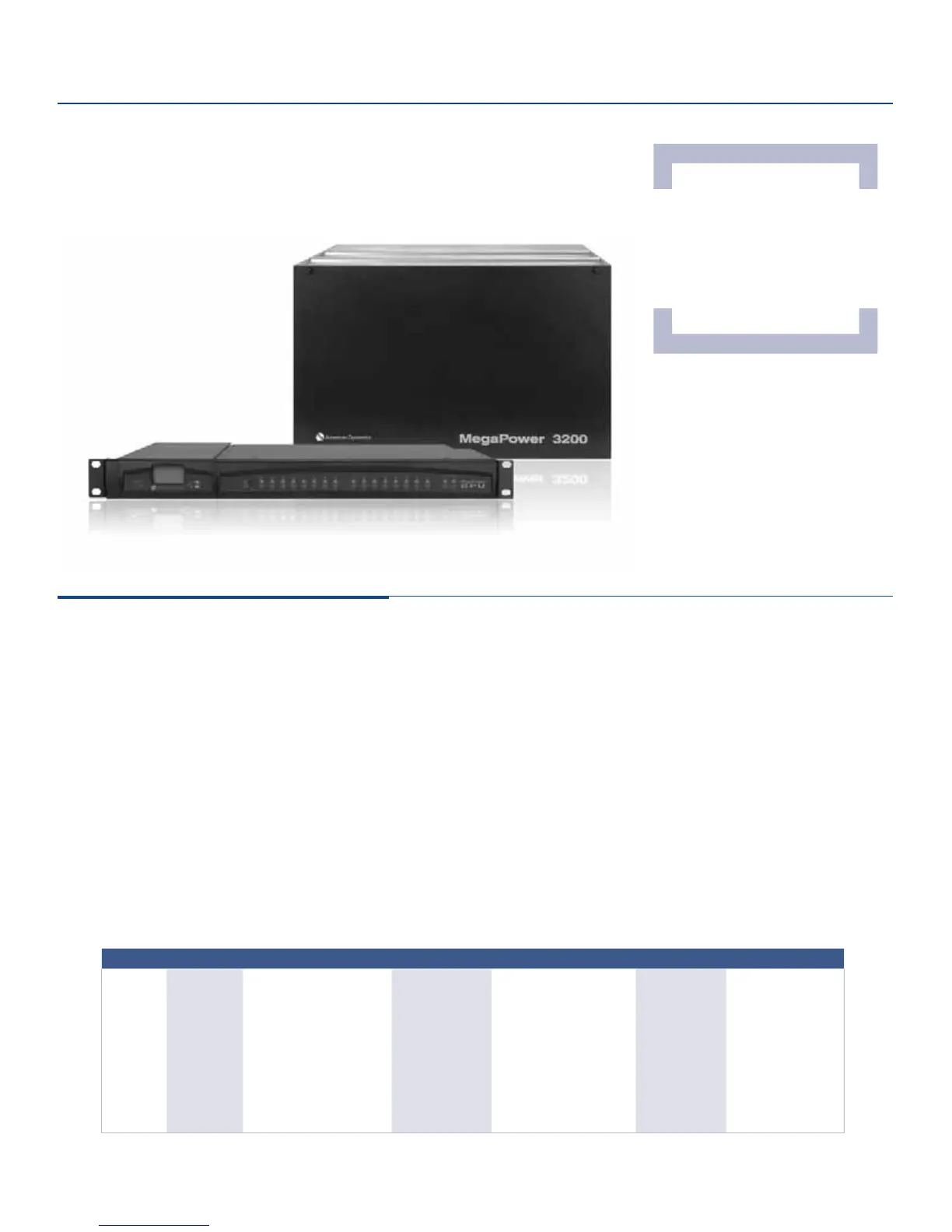

MegaPower 3200:
t Single CPU with 16 RS-232 ports
supporting up to 64 keyboards via
American Dynamics port expanders
t Dual units connected together via cross
over cables provide 32 RS-232 ports
supporting up to 128 keyboards with
American Dynamics port expanders
t Dual CPU mode provides redundant CPU
backup protection with fault detection and
hot-switch failover to ensure uninterrupted
system operation
t Enhanced Administration SYstem (EASY)
configuration and monitoring software
tool to retrieve, archive, and load back
MegaPower CPU data
t 10/100 Base-T Ethernet network connection
for PC - based configuration, firmware
updates, activity logging, snapshot, and
email text messaging
t Activity logging and reporting of user
control, alarms, and configuration changes
to a network PC
t Single CPU systems with up to 128 video
outputs and dual CPU systems of up to 256
video outputs
t Up to 3200 video inputs
t Satellite-connection of up to 30 systems
provides full cross-point video matrix of up
to 38,528 video inputs by 256 video outputs
t Automatic call-up of alarms defined by four
time-controlled tables each with 4,096
entries for inputs or optional Internal video
loss detection
t 128 alarm text messages can be defined
with 25 alarm display/clearance modes, and
16 email messages
t LCD for CPU status and LED indicators for
port activity
t Easy swap out of CPU modules without
removing system cables
t Store snapshot of important scenes to
network PC upon request
t Multilingual software supports English,
French, Italian, German, Spanish, and
Portuguese
Matrix Switchers

American Dynamics MegaPower LT Specifications

General

Brand	American Dynamics
Model	MegaPower LT
Category	Matrix Switcher
Language	English
