Series 2500 Resilient Wedge Gate ValvePage 3A-9

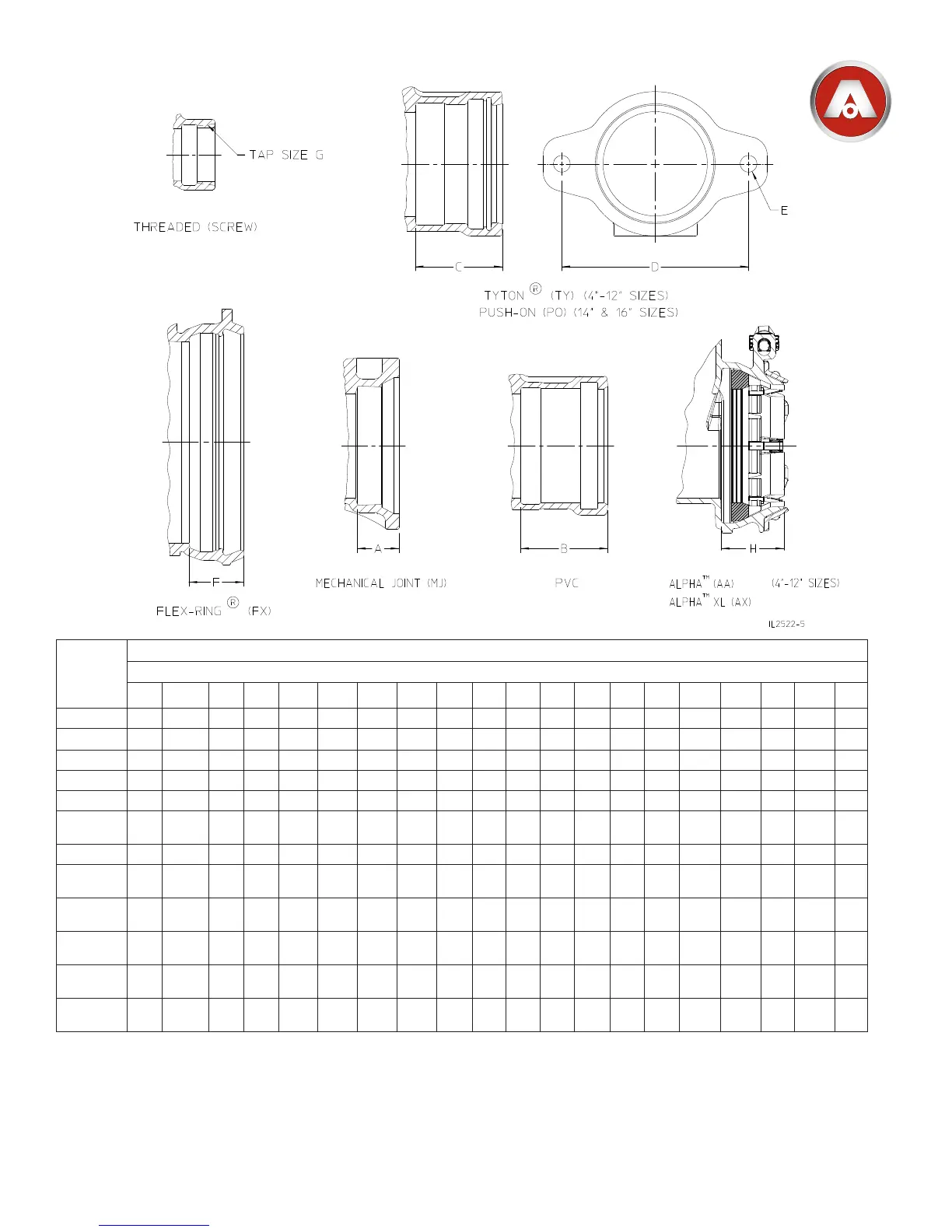

SERIES 2500 - OPTIONAL END CONNECTIONS, ALL SIZES
“X”denotesClass125andClass250angeendsareavailableforsizesindicated.
NOTE:
1.Class125angeenddimensionsandClass250angeenddimensionsareshownonseparatepages.SeeClass
125angedimensionsonpage3A-10andClass250angedimensionsonpage3A-11.
2. Push-on ends are in accordance with ANSI/AWWA C111/A21.11 for use on ductile iron pipe sizes. Valves are
furnished with TYTON
®
(TY)ends.TYTON®isaregisteredtrademarkofUnitedStatesPipeandFoundryCo.,LLC.
3.ALPHA™isatrademarkofRomacIndustries,Inc.(U.S.Patent8,894,100)
Dimension
Valve Size
Series 2500 / Series 2500-1
2” 2-1/2” 3” 4” 6” 8” 10” 12” 14” 16” 18” 20” 24” 30” 36” 42” 48” 54” 60” 66”
A (MJ) 2.50 N/A 2.50 2.50 2.50 2.50 2.50 2.50 3.50 3.50 3.50 3.50 3.50 4.00 4.00 4.00 4.00 N/A N/A N/A
B (PVC) 1.06 4.00 4.00 4.00 5.22 5.50 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
C (PO) N/A N/A N/A N/A N/A N/A N/A N/A 5.62 5.62 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
C (TY) N/A N/A N/A 4.00 5.22 5.50 5.62 5.62 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
D (TY) N/A N/A N/A 9.00 11.19 13.50 15.88 18.00 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
E DIA.
(TY)
N/A N/A N/A 1.00 1.00 1.00 1.31 1.31 1.31 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
F (FX) N/A N/A N/A N/A N/A N/A N/A N/A N/A 7.44 N/A 8.19 8.94 9.62 9.66 10.88 12.38 N/A 13.06 N/A
G
(Threaded)
2”
NPT
2-1/2”
NPT
3”
NPT
N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
H (AA)
ALPHA™
N/A N/A N/A 3.55 3.74 4.92 5.09 5.32 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
H (AX)
ALPHA XL™
N/A N/A N/A 4.20 4.04 5.50 5.57 5.98 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Class 125
Flange
X X X X X X X X X X X X X X X X X X X X
Class 250
Flange
N/A N/A X X X X X X X X X X X X X X X N/A N/A N/A
