Series 2500 Resilient Wedge Gate ValvePage 3A-8

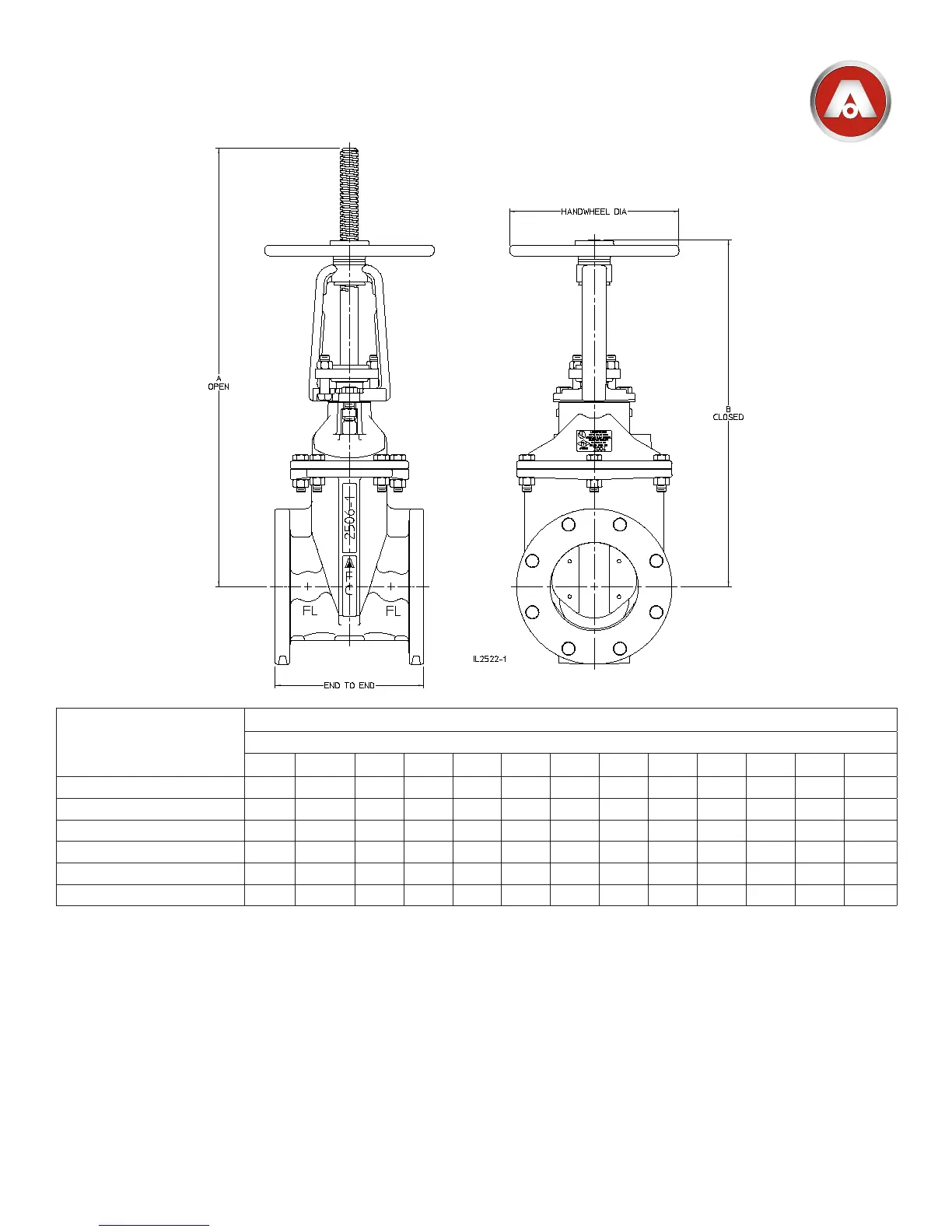

SERIES 2500 - OS & Y DIMENSIONS, 2”–24” SIZES
NOTES:
1. Valves meet or exceed requirements of ANSI/AWWA C515 in applicable sizes.
2.2in.–18in.sizesmaybeorderedincongurationsthatareULListed
and Approved by FM Approvals.
3.20in.–24in.sizesavailableincongurationsthatareULListed.
4. 250 psig rated working pressure.
5. Fusion bonded epoxy coating meets or exceeds requirements of ANSI/AWWA C550.
6.BoltpatternsofClass125angedendsareinaccordancewithANSI/AWWAC110/A21.10(ASMEB16.1Class125).
7.Class250angedendsareinaccordancewithASMEB16.1,Class250forcastironanges.
8.2in.–24in.valvesareCertiedtoNSF/ANSIStandard61andNSF/ANSI372.
Dimensions
Valve Size
Series 2500 / Series 2500-1
2” 2-1/2” 3” 4” 6” 8” 10” 12” 14” 16” 18” 20” 24”
A (Valve Open) +/- 1/4 13.28 16.78 18.12 23.47 30.97 38.16 48.41 53.66 66.13 72.00 81.25 87.50 105.25
B (Valve Closed) +/- 1/4 11.06 14.12 14.94 19.12 24.59 29.91 38.16 41.78 51.75 55.25 62.63 66.81 79.88
Handwheel Diameter 7.00 8.00 8.00 10.00 12.00 14.00 16.00 16.00 20.00 20.00 20.00 28.00 28.00
End to End - FL/FL (Class 125) 7.00 7.50 8.00 9.00 10.50 11.50 13.00 14.00 15.00 16.00 17.00 18.00 20.00
No. of Turns to Open 9 11 13 14 20 25 31 38 44 50 56 62 76
End to End - FL/FL (Class 250) N/A N/A 11.12 12.00 15.88 16.50 18.00 19.75 18.50 21.00 22.00 24.00 26.38
