Preparing the Installation Site (Cont’d)
Determine if panels of considerable length can be transported through door openings, hallways and
stairways.
Check and determine if the floor has been treated prior to installing the unit.
Note the location of any special accessories (heated relief vents, alarms, etc.)
Cam-Lock Operation
The cam-lock locking device is located in the perimeter edge of all panels. Cam-Lock access holes are located
on the interior side of the panels. Generally speaking the male locks are located on the right side, top and
bottom of the wall panels.
The cam action of the lock will pull the panels together, compressing the factory applied gasket and providing
an air tight seal.

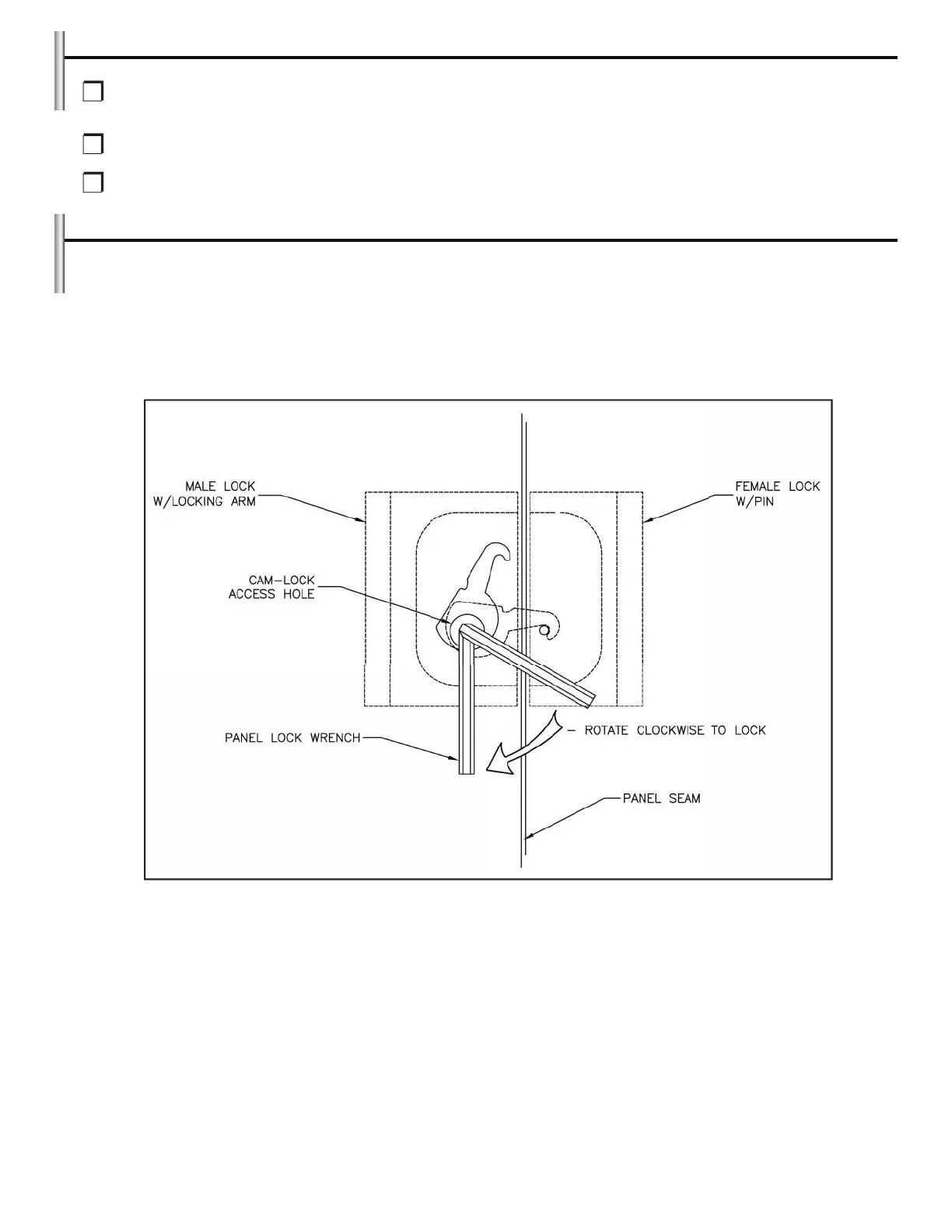

To operate the cam-lock, (as shown above) insert the panel lock wrench (located in the accessory box) through
the lock access hole and into the hex opening in the male cam-lock. Turn the panel lock wrench counter clock-
wise to check that the locking arm is brought to a completely open position. Next, rotate the panel lock
wrench clockwise
3
/
4
of a full turn to actuate the lock engaging the locking arm to the lock pin. The cam action
of the lock will pull the panels together, compressing the factory applied gaskets and providing an air tight
seal. Finally, rotate the panel lock wrench approximately
1
/
4
turn to fully actuate the lock by securing the cam-
lock arm to the pin. Once all the cam-locks are engaged, the access holes must be plugged with the supplied
lock hole buttons (located in the accessory box).
• Male and female cam-lock mechanisms must line-up on adjacent panels, but are able to tolerate a +/-
1
/
8
” tolerance.
• Continually check to see that the tops of the adjacent panels are evenly lined up and flush before locking.
• Continually check to see that the interior seam of the panels being locked together is flush, tolerance is
+/-
1
/
64
”.
5
