IMPORTANT: THIS UNIT MUST BE SECURED TO A WALL TO HELP PREVENT TIPOVER. FOLLOW THESE INSTRUCTIONS TO INSTALL
THE ANTI-TIPPING SAFETY BRACKET PROVIDED WITH THIS PRODUCT.
WARNING
Serious or fatal crushing injuries
can occur from furniture tipover.
To prevent tipover:
• Install tipover restraint provided
• Place heaviest items in the lowest
drawers
• Unless specifically designed to
accommodate, do not set TVs or
other heavy objects on the top
of this product
• Never allow children to climb or
hang on drawers, doors, or shelves
• Never open more than one drawer
at a time
Use of tipover restraints may only
reduce, but not eliminate the risk
of tipover
For Masonry, Concrete, or other
wall materials:
Consult your local hardware store for
appropriate anchors to securely attach
the safety bracket.

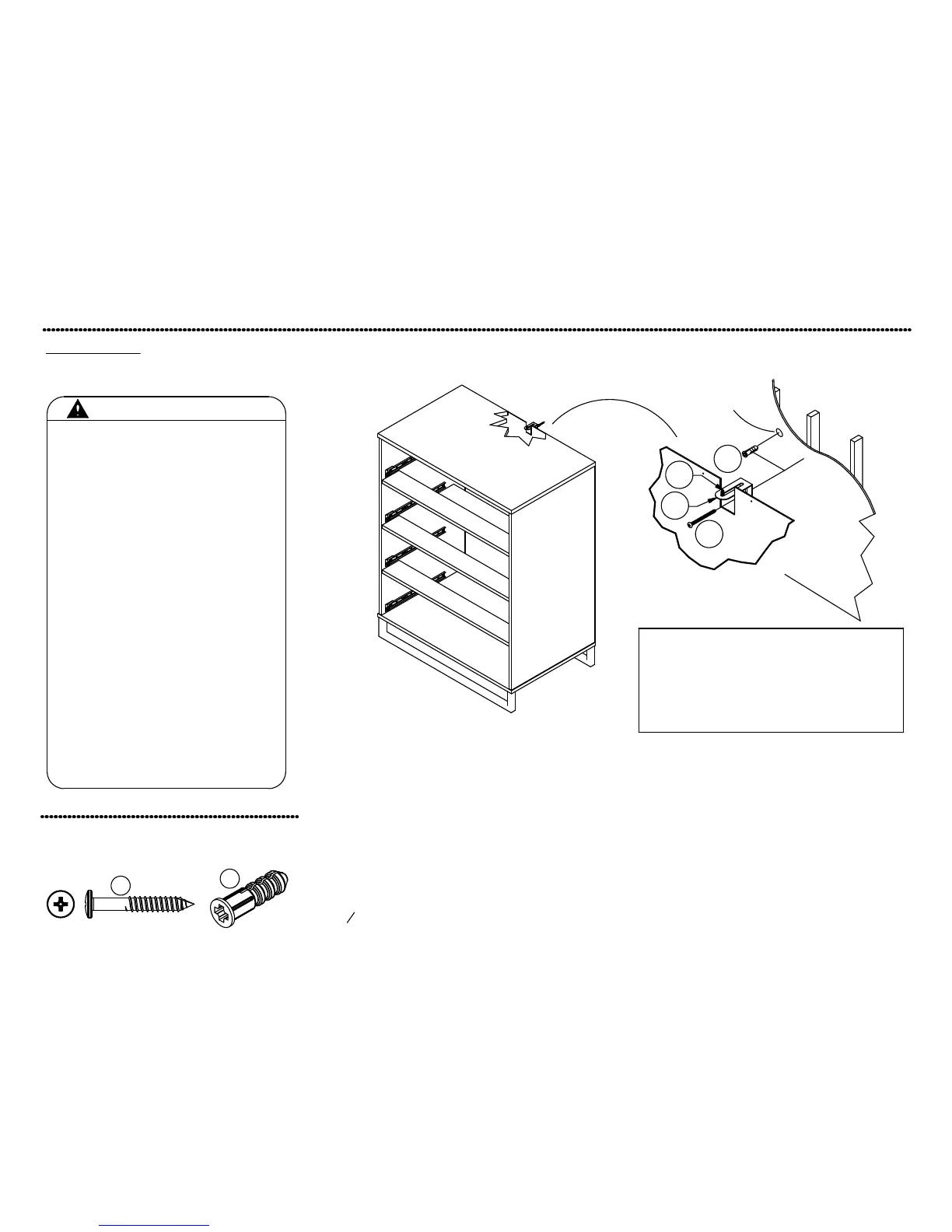

Option 1: Attachment into a wall stud (preferred method)
Using a stud finder, locate a stud in the wall. Place your unit against the wall, with the safety bracket (15a)
aligned at this location.
To make driving the screw easier, you can drill a 1/8" diameter pilot hole (3mm) through the safety bracket
(15a) into the stud.
Drive the screw (15c) through the safety bracket (15a) into the wall stud.
Tighten the screw (15b) that was not fully tightened in step 3.
Option 2: Attachment into drywall
Locate your unit where desired against a wall and mark the wall through the safety bracket (15a), then move
your unit aside.
Drill a
3
16" diameter hole (5mm) in the wallboard. Tap the wall anchor (15d) into hole until it is flush.
Move your unit into location and fasten the wall bracket (15a) to the wall anchor (15d) with the
screw (15c).
Tighten the screw (15b) that was not fully tightened in step 3.
15d
15b
15a
15c
