Ameriwood 5945307T - Assembly Techniques and Procedures; Cam Lock System Operation Guide

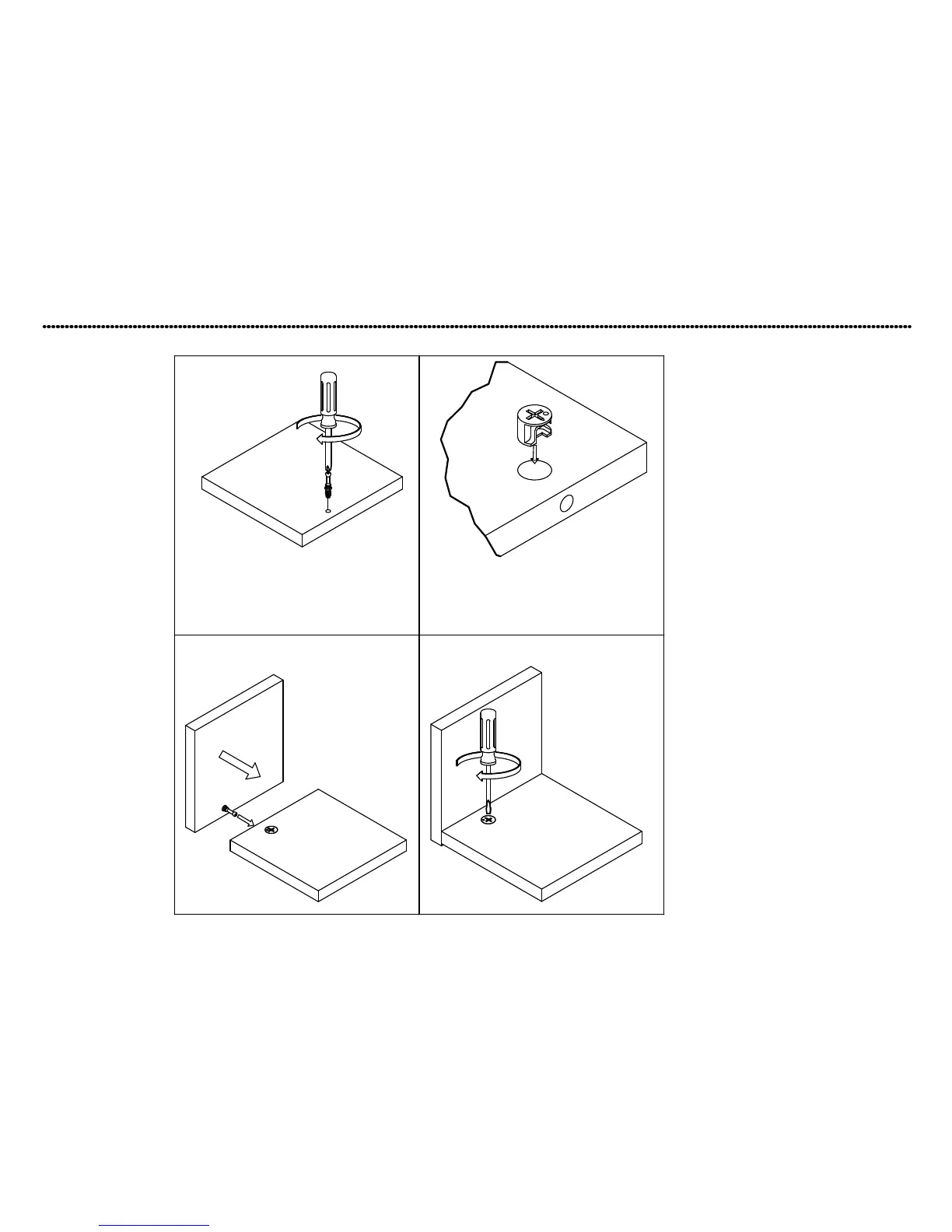

how to use the cam lock system
2
3
½ turn to fully
lock.
4
Tighten to fully seat. Do not over
tighten.
Proper orientation of cam.
