AMES 57013 - Indirect Height;Length - Angle Calculation

Page 13;&(%$*4.8"4,7%<'*#$"&8#=%/7*,#*%4,77%>?@@@?@AA?BCDC1Item 57013
EF;6GHIJ6KFGLIMNFLMG6MFMO6 E6GPJ

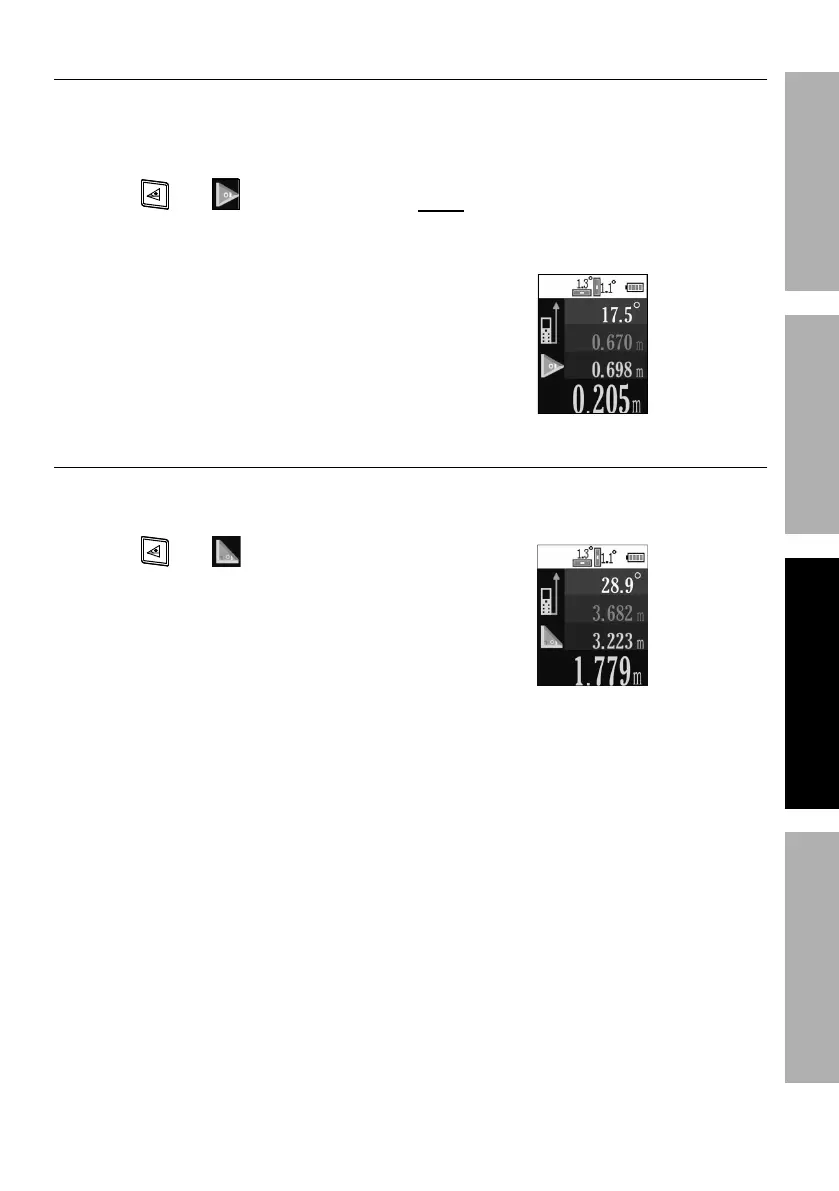

L89"(*4$%X*"3.$0T*83$.%?%F837*%O,74'7,$"&8
1. Place Meter on tripod.
2. Press ULEG%button to turn Meter on.
3. Set Laser Reference Point.
4. Press until appears.
5. Press ULEG%button to activate laser.
6. White angle value - Used to
calculate measurement.
7. Pink measurement - Tilt Meter
up, point at top reference point on
surface, then press ULEG%button.
8. Blue measurement - Tilt Meter down,
point at bottom reference point on
surface, then press ULEG%button.
9. Yellow measurement - Height.
M&$*- Measurement may also
be performed on horizontal
surface to measure length.
L89"(*4$%X*"3.$0T*83$.%?%F837*%O,74'7,$"&8
1. Press ULEG%button to turn Meter on.
2. Set Laser Reference Point.
3. Press until appears.
4. Press ULEG%button to activate laser.
5. White angle value - Used to
calculate measurement.
6. Pink measurement - Place Meter
on the ground. Tilt Meter up,
point at top reference point on
surface, then press ULEG%button.
7. Blue measurement - Length.
8. Yellow measurement - Height.
